Making Measurements 2
U1253B User’s and Service Guide 45

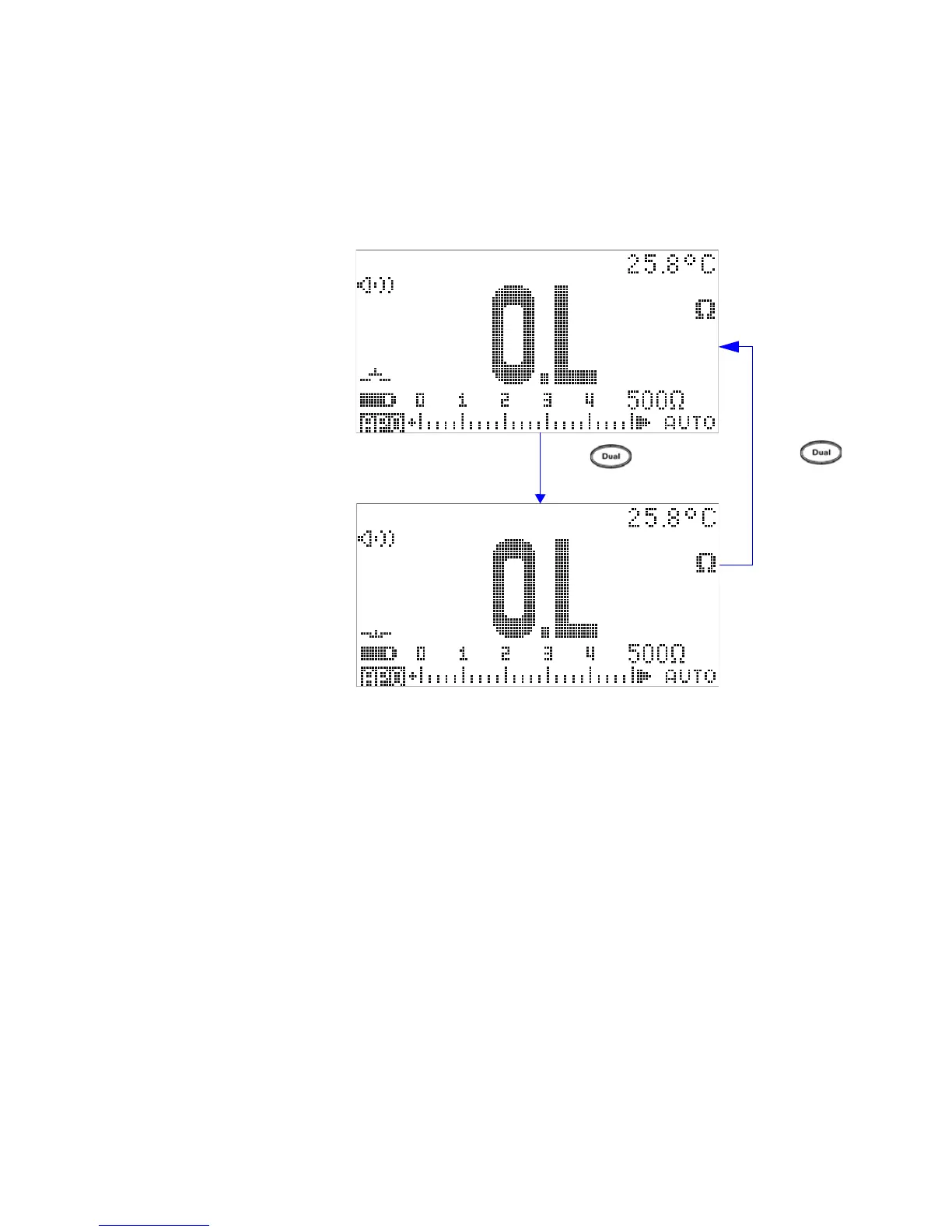

Figure 2-10 Short continuity and open continuity test
Conductance
The conductance measurement function makes it easier to
measure very high resistance of up to 100 GΩ (refer to
Figure 2- 11 on page 46 for probe connection). As
high- resistance readings are susceptible to noise, you can
capture average readings using the Dynamic Recording mode.
See Figure 3- 1 on page 77.
Short Continuity
Open Continuity
Press
Press
