Agilent Technologies U1253B - Figure 3-7 1 Ms Peak Hold Mode Operation

70 U1253B User’s and Service Guide
3 Functions and Features

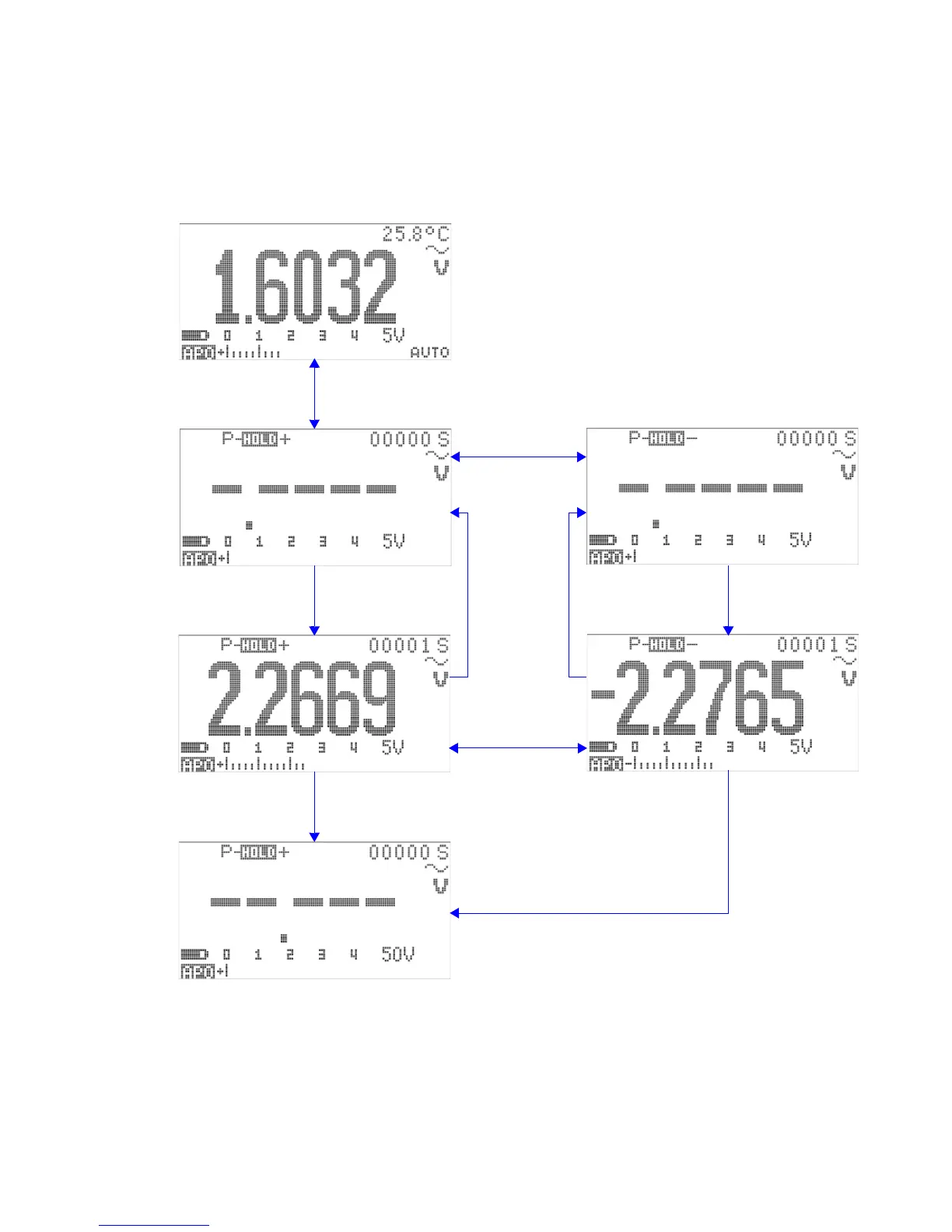

Figure 3-7 1 ms peak hold mode operation
Press Peak
for > 1 sec.
Press
Range
Press
Range
Start to capture Start to capture
Press Max Min
Press Max Min
Press Dual
to reset
(Note: pressing Range when in Negative P-HOLD–
will change the display into Positive P-HOLD+.)
