Use and Maintenance Manual - X_RT Series Page 38
5.2 Ground control panel
The ground control panel is located on the chassis (see paragraph "Location of main components") and is used to:
 Turn the machine on/off.
 Select the control panel (ground or platform).
 Operate the platform in emergency cases.
 Display some operation parameters (working hours; Diesel engine operational faults; battery charger operation; etc.).
IT IS FORBIDDEN
To use the ground control panel as a workstation when personnel is on the platform.
Use the ground control panel only to start/stop the machine, to select the control panel or in emergency
situations to allow the platform to be recovered.
Give the key to authorized persons and keep a duplicate in a safe place.
Always remove the on/off key at the end of work shifts.

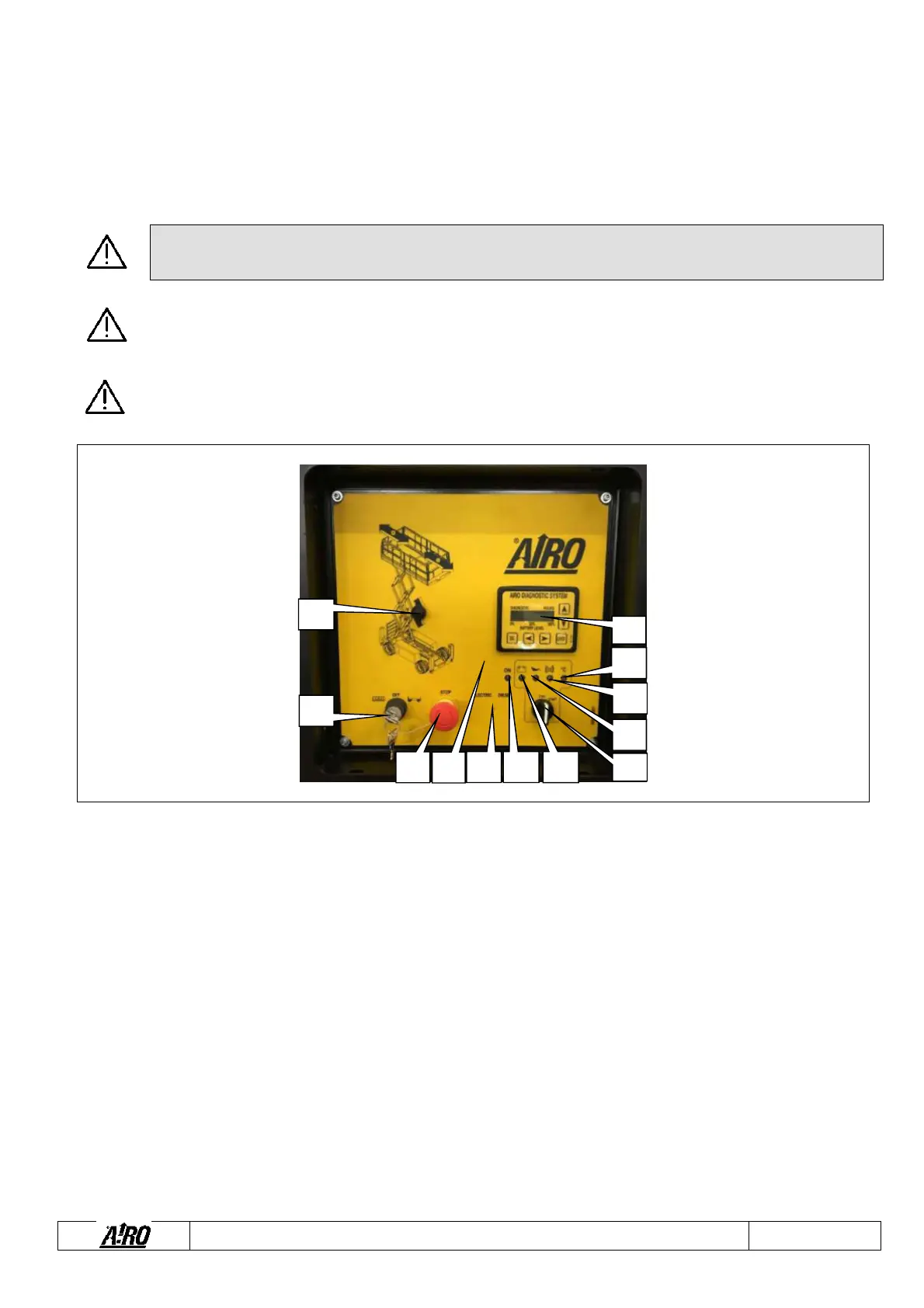

Fig. 8
A)
ON
-
OFF key and control panel selector (ground/platform)
B)
Emergency STOP button
C)
DIESEL/ELECTRIC drive power selector (optional)
D)
Heat engine starting button (models “D” and “ED”)
E)
User interface display
F)
Battery charger warning light (
models “E” and “ED”)
G)
Enabled control panel warning light
H)
Alternator warning light (models “D” and “ED”)
L)
Oil warning light (models “D” and “ED”)
M
Air filter warning light (models “D” and “ED”) (OPTIONAL)
N)
Motor head temperature
warning light (models “D” and “ED”) (OPTIONAL)
O)
Lifting/lowering lever
B H
C G

"
E
A
D


F
