5.7 Socket for electric tool connection (optional)
The work platform can be equipped with a socket
(230V Ac) enabling the operator to connect the electric
tools necessary to carry out his operations.

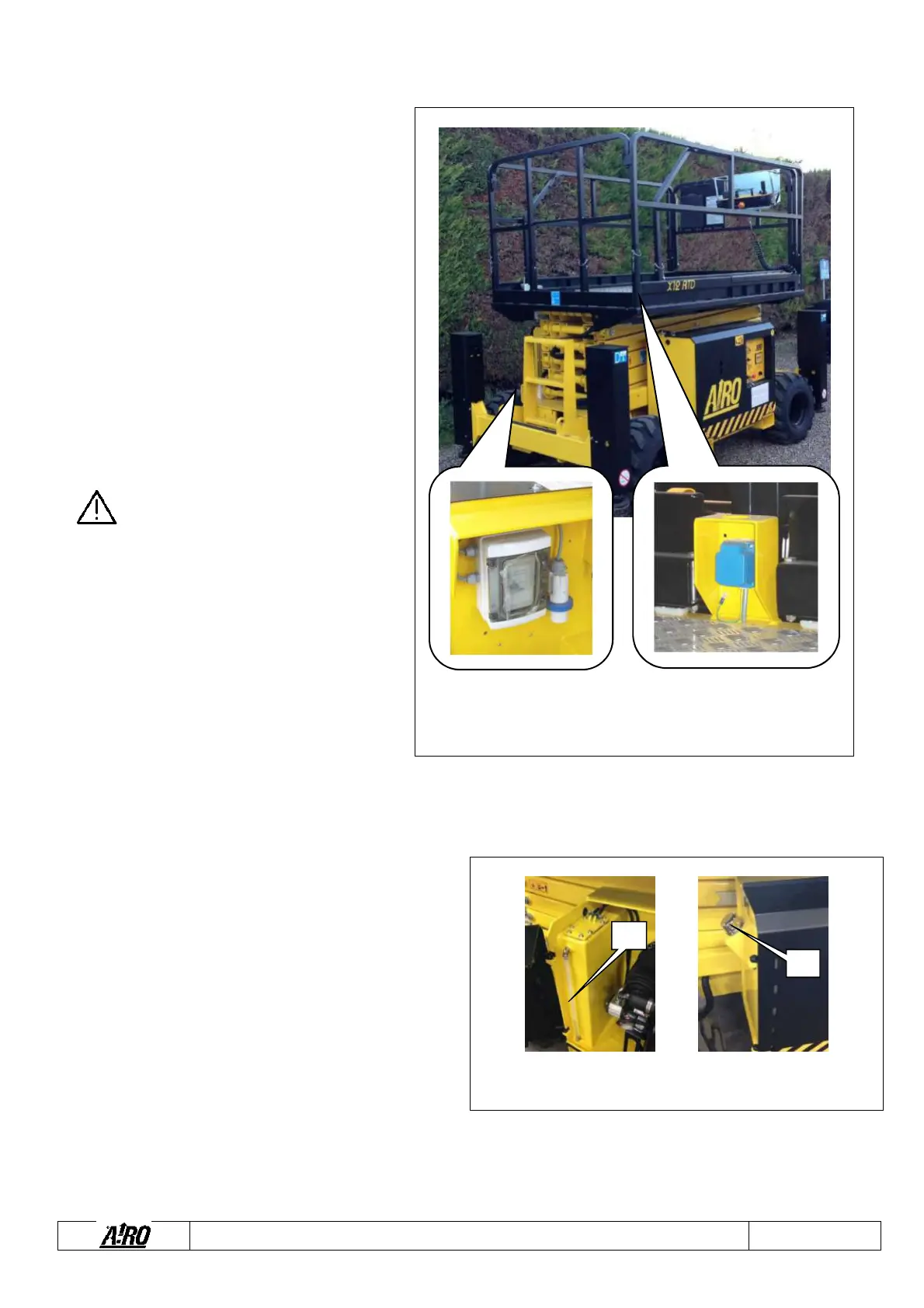

To activate the electric line (see pictures above)
introduce a cable into the plug connected to the 230V
AC 50 Hz mains, with all protections according to the
current standards in force. If there is the circuit breaker
switch (optional), to activate the electric line set the
switch to ON position. It is advisable to check the
earth-leakage circuit breaker by means of the specially
provided TEST button.
The plugs and sockets equipped on standard machines
comply with EEC standards and can therefore be used
in EU member countries. On request the machine can
be equipped with plugs and sockets in compliance with
local standards or with particular needs.
Fig. 14
Connect to the power mains having the
following features:
Power voltage 230V ± 10%
Frequency 50÷60 Hz
Activated grounding line.
Working protection devices
according to current standards in
force.
Do not use extension leads
exceeding 5 metres to connect to
the mains.
Use a cable of suitable section
(min 3x2.5 mm
2
).
5.8 Fuel level and re-fuelling (models “ED”, “D”)
Before using the thermic drive power (Diesel engine) check the
fuel level in the tank.
This operation is to be carried out by visually checking the fuel
level through the visual level on the A tank.
Visually check the fuel level before starting to work.
Keep the fuel tank and the motor clean.
Refuel through filler B.
