7.3.3 Diesel Motor
For all maintenance operations relating to the
Diesel engine refer to the manual of instructions of
the manufacturer of the engine that is supplied
with the machine.

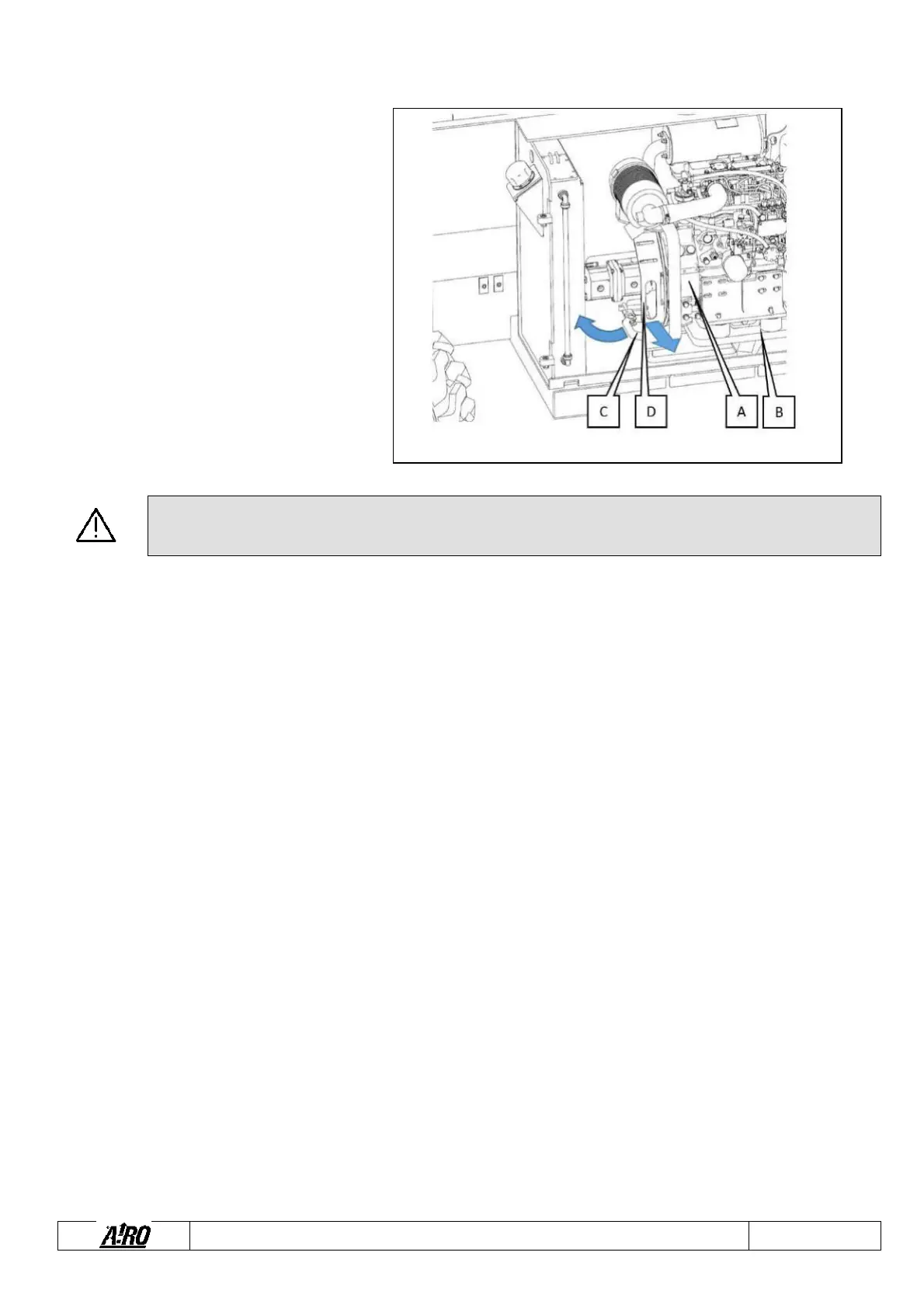

The diesel engine (A) is housed on a removable
support (B) to facilitate access to accessories/devices
located in the rear area.
To extract the diesel engine, unlock the lever (C) as
shown in the figure and release it from the housing and
then use the handle (D) and pull outward.
To reposition the engine in its housing repeat the
above operations in reverse.
WARNING: The only safe way to remove and reposition the engine is using handle (D).
Danger of burns and crushing of the hands.
Fig. 22
