¾ ProST with N-type connector for attaching third-party external antenna (i.e. no integrated
antenna)

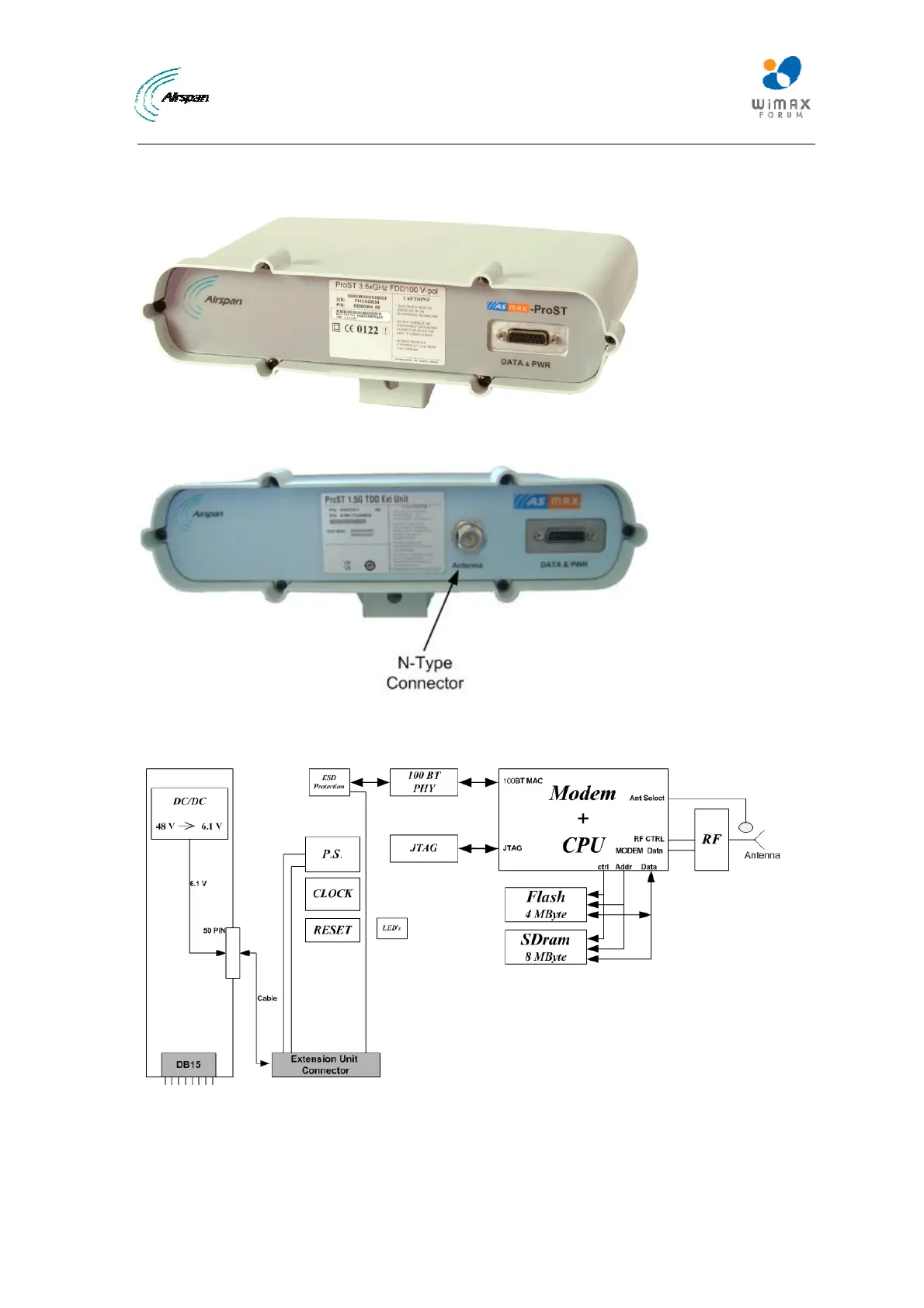

The ProST model with the integrated antenna is shown below:
Figure4‐ProSTwithintegratedantenna
The ProST model with the N-type connector for connecting an external antenna is shown below:
Figure5‐ProSTwithexternalantenna
2.4.1 ProST Block Diagram
Figure6‐BlockDiagram
