ProST Hardware Installation User Guide
Page 46 Commercial in Confidence UWB-D00111 Rev L
6.1.2 Connecting the SDA-4S Type II, SDA-4S/VL Type II or SDA-4S/DC Type II
The SDA-4S Type II, SDA-4S/VL Type II or SDA-4S/DC Type II adapters (referred hereafter as
SDA-4S) provide one 15-pin D-type female port for interfacing with the ProST (which also
provides a 15-pin D-type female port).
The ODU-to-IDU connectivity implements a CAT 5E cable with 8-pin RJ-45 connectors at either
end. However, for allowing the use of RJ-45 connectors, your ProST kit includes two DB15-to-
RJ45 adapters that can easily be attached to the 15-pin D-type ports of the ProST and SDA-4S.
The cable setup for ProST to SDA-4S connectivity is as follows:
¾ Cable: Straight-through CAT 5E Ethernet cable
¾ Connectors:
ProST: DB15-to-RJ45 adapter
SDA-4S: DB15-to-RJ45 adapter
CAT 5Ee cable with 8-pin RJ-45 male connectors on either end

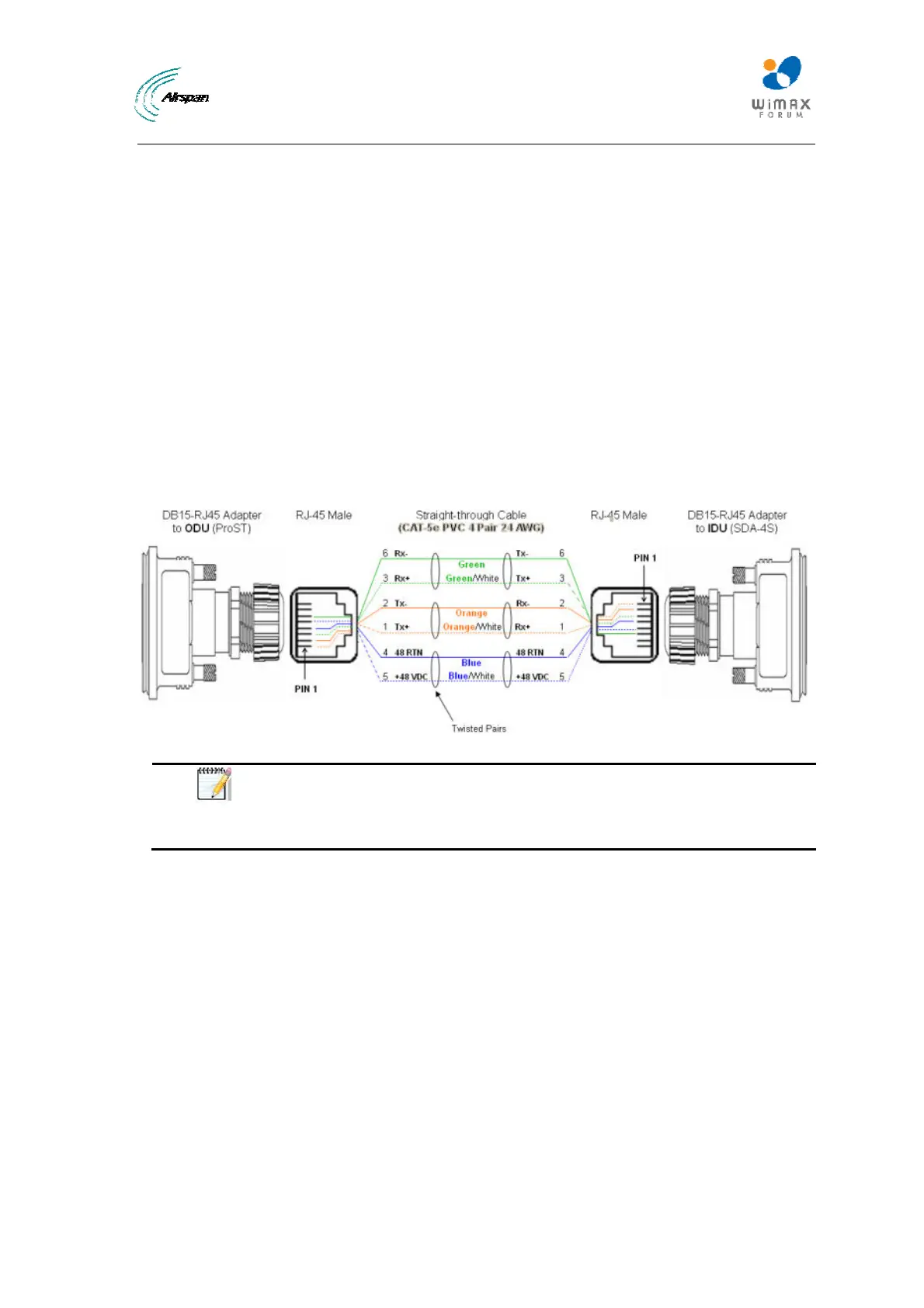

¾ Connector pinouts:
Figure34‐PinoutsProSTtoSDA‐4S
Note: The standard ProST/ProST-WiFi kit does not include the SDA-4S Type
II, SDA-4S/VL Type II or SDA-4S/DC adapters. For pricing and ordering of
the SDA-4S Type II, SDA-4S/VL Type II or SDA-4S/DC adapter, please
contact your nearest Airspan dealer.
To connect the ProST to the SDA-4S:
1. Attach the DB15 side of the DB15-to-RJ45 adapter to the ProST's 15-pin D-type port
(female), labeled DATA & PWR.
2. Attach the DB15 side of the second DB15-to-RJ45 adapter to the SDA-4S's 15-pin D-type
port (female).
3. Plug the RJ-45 connector, at one end of the CAT 5Ee cable (not supplied), into the RJ-45
port of the DB15-to-RJ45 adapter located at the ProST.
4. Plug the RJ-45 connector, at the other end of the CAT 5Ee cable, into the RJ-45 port of the
DB15-to-RJ45 adapter located at the SDA-4S.
