ProST Hardware Installation User Guide
Page 54 Commercial in Confidence UWB-D00111 Rev L
7.2 Connecting the SDA-4SDC Type II (Optional DC adapter)
The SDA-4SDC adapter is connected to the DC power supply using a cable appropriate to the
specific field conditions.
The setup between the SDA-4SDC and power connection includes the following:
¾ Connector: Anderson Connector Housings for connecting the cable to the SDA-4SDC
DC power socket.
1327 - Red Housing x 1
1327G6 - Black Housing x 1

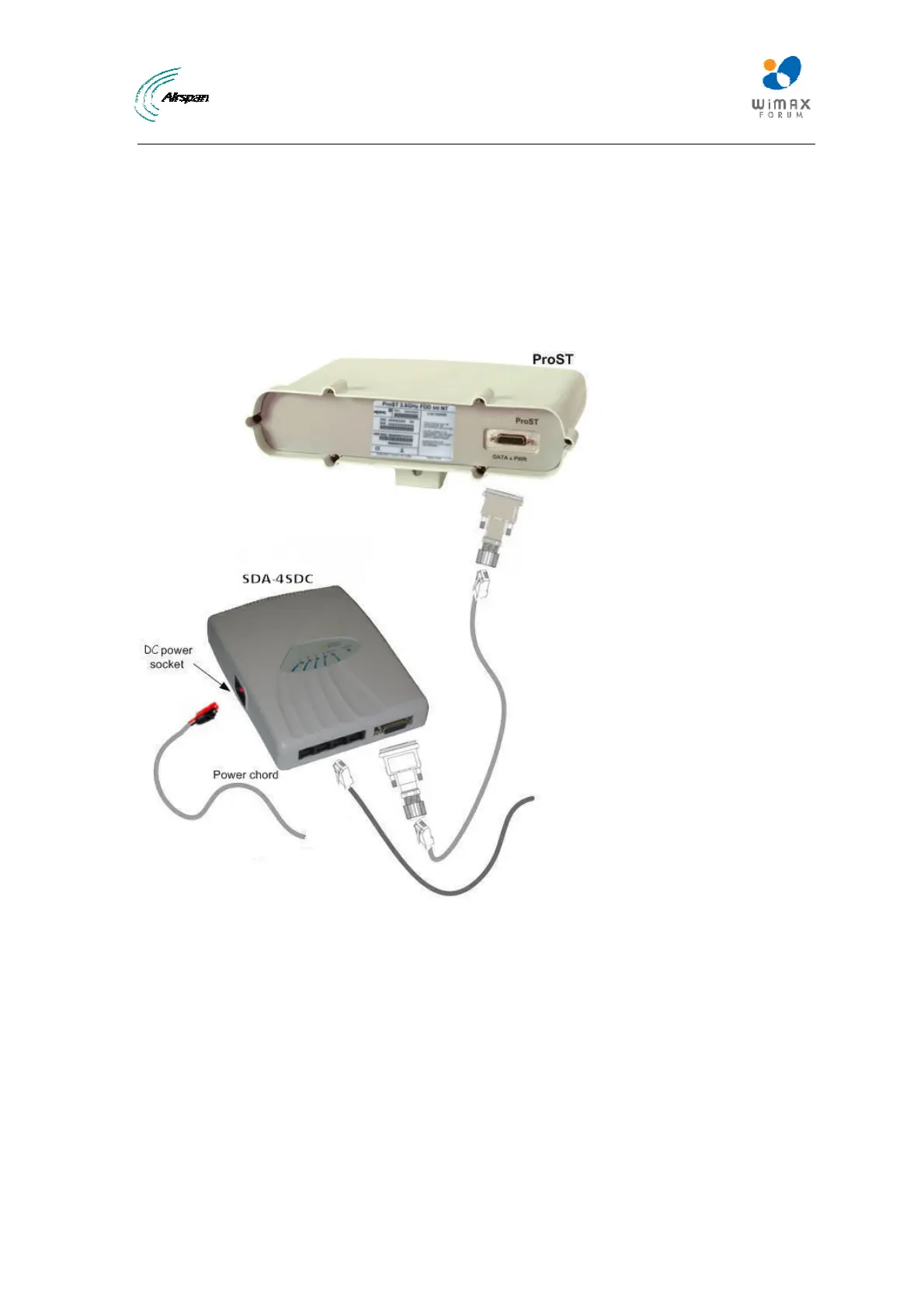

Figure41‐ProSTSDA‐4SDCpowerconnection
7.3 AC Power Source
ProST is powered from an AC power source when implementing the SDA-1 Type II, which is
plugged directly into a standard electrical wall outlet (110/240 VAC). The optional IDU adapters
(SDA-4S Type II and SDA-4S/VL Type II) also power ProST from the subscriber's AC electrical
wall outlet. The difference between the SDA-1 Type II and SDA-4S Type II adapters is the method
of connectivity to the power outlet, as discussed in the subsections below.
7.3.1 Using SDA-1 Type II
The SDA-1 Type II is plugged directly into a standard electrical wall outlet ((110/240 VAC). The
SDA-1 Type II also allows easy plug prongs replacement to suit the electrical wall socket (e.g.
American vs. European type) of the geographical location in which the ProST is being installed.
