ProST Hardware Installation User Guide 

Page 41 Commercial in Confidence UWB-D00111 Rev L

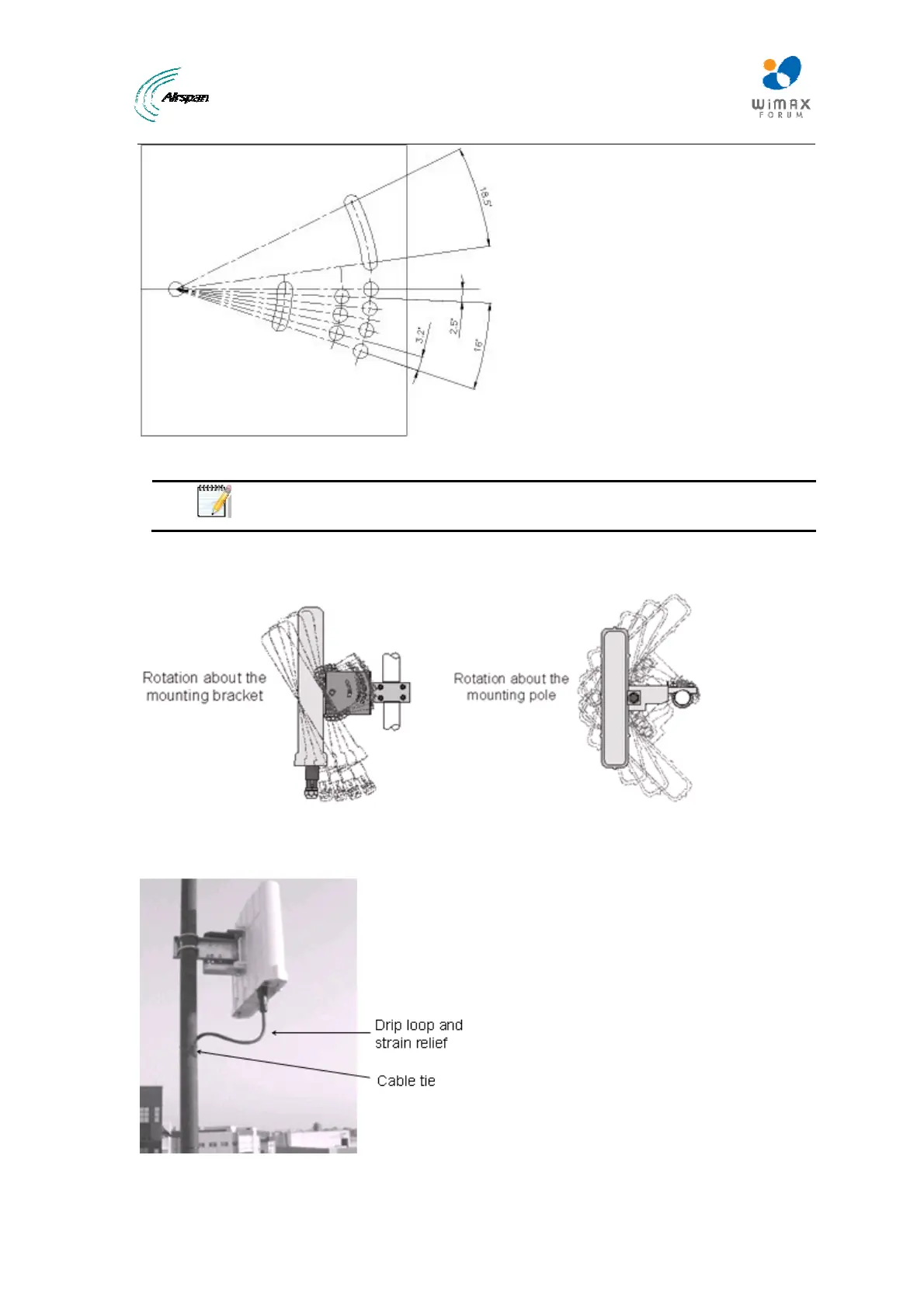

Figure27‐Elevationholes
Note: A thread-locking compound must be used to prevent the bolts from
working loose.
ProST positioning is obtained in two planes by adjustment of the mounting bracket assembly as
shown below:
Figure28–ProSTpositioning
It is important to provide strain relief and drip loop for Cat-5e cables. Create a drip loop and strain
relief using cable tie, to tie cable to pole, as displayed in the figure below:
Figure29‐strainrelief
