ProST Hardware Installation User Guide
Page 38 Commercial in Confidence UWB-D00111 Rev L

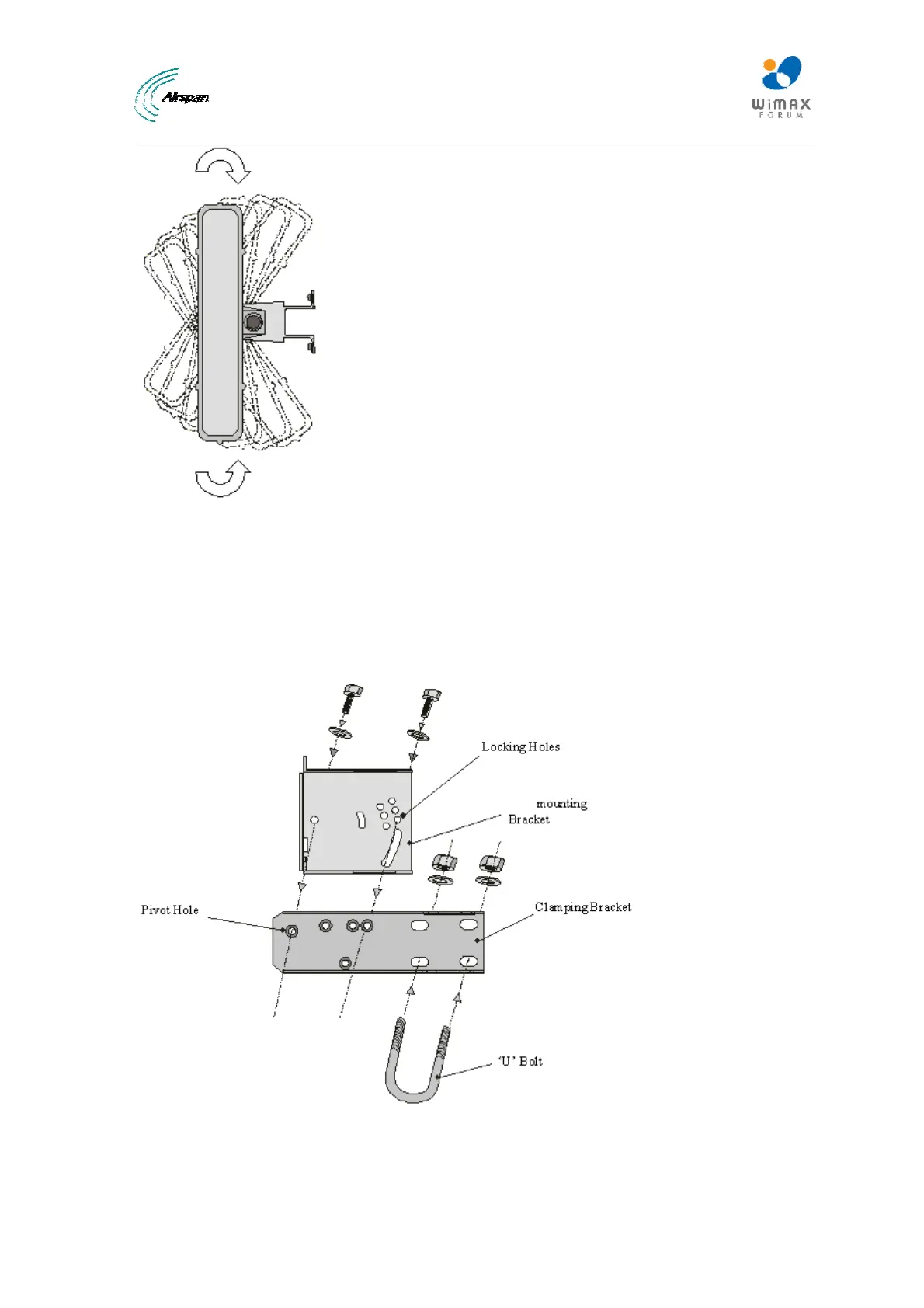

Figure22–Rotation
5.2 Pole-Mounting
Pole mounting allows the ProST to be easily adjusted in the horizontal (azimuth) and vertical
(elevation) planes for antenna alignment. The ProST is mounted using the mounting holes located
on the ProST's back panel and the supplied (when ordered) pole-mounting brackets. The pole-
mounting bracket is designed to support the ProST on a round pole of 45 mm in diameter.
The figure below illustrates a summary of the ProST pole-mounting procedure.
Figure23‐Polemountsummery
To pole mount the ProST:
1. Attach the mounting bracket to the ProST:
