Airspan ProST - SDA-4 S Type II and SDA-4 S;VL Type II

ProST Hardware Installation User Guide 

Page 31 Commercial in Confidence UWB-D00111 Rev L

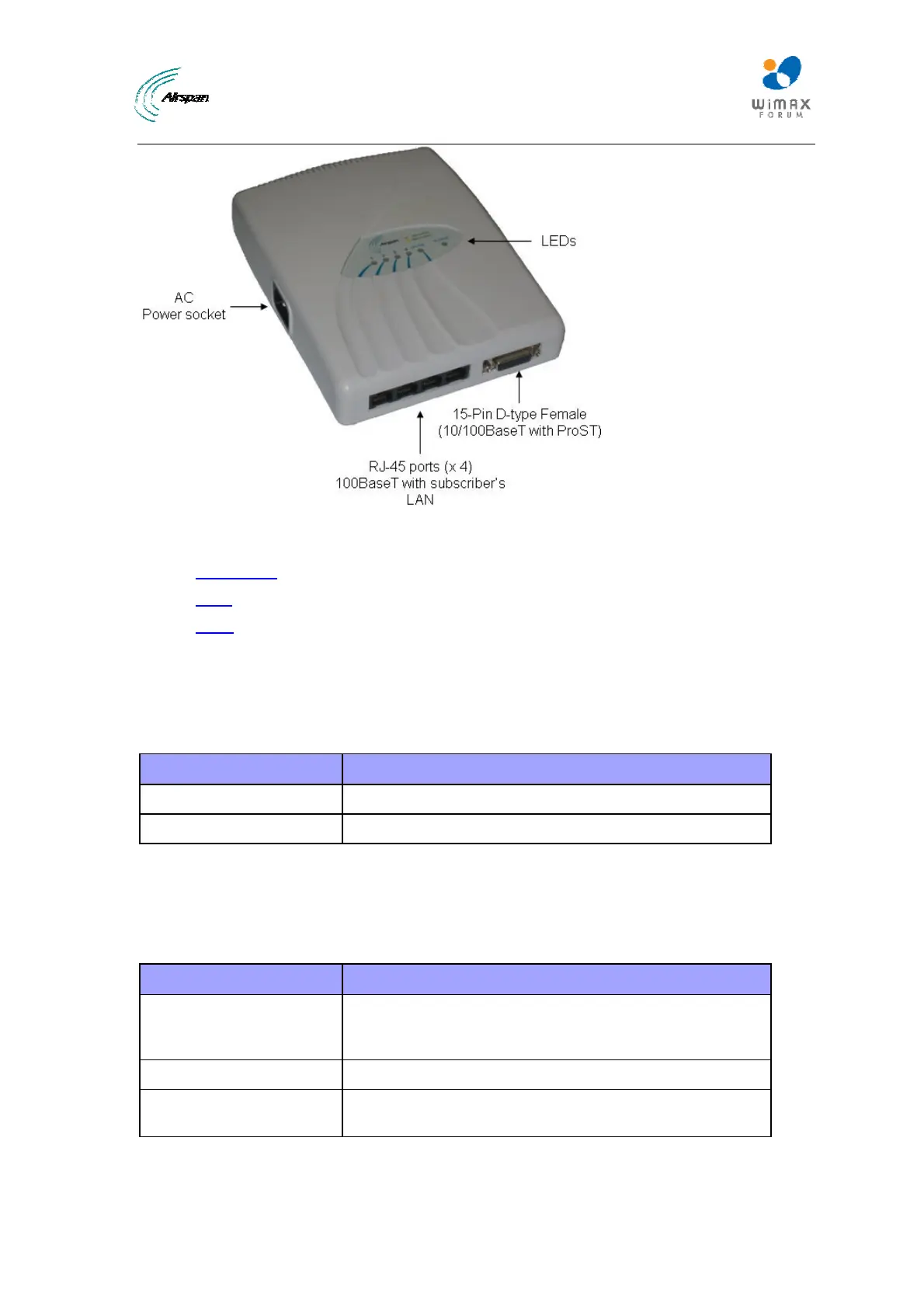

Figure13‐SDA‐4STypeII
This subsection provides the following SDA-4S physical descriptions:
¾
1Dimensions
¾
1Ports
¾
1LEDs
4.3.1 Physical Dimensions
The SDA-4S Type II and SDA-4S/VL Type II physical dimensions are described in the table
below:
Table8‐SDA‐4STypeIIdimensions
Parameter Value
Dimensions (L x W x H)
200 x 150 x 40 mm (7.87 x 5.9 x 1.57 inches)
Weight
0.577 kg
4.3.2 Ports
The SDA-4S Type II and SDA-4S/VL Type II adapters provide ports on their bottom panels, which
are described in the table below
Table9‐SDA‐4Sports
Port Interface
4 x 8-pin RJ-45 10/100BaseT with subscriber's network (supports Auto
Negotiation and MDI/MDI-X automatic crossover, allowing
connection of straight-through or crossover cables)
15-pin D-type (female) 10/100BaseT with BSR
AC power socket Subscriber's power outlet (110-240 VAC, 1A, 50/60 Hz,
50W)
