ProST Hardware Installation User Guide
Page 51 Commercial in Confidence UWB-D00111 Rev L

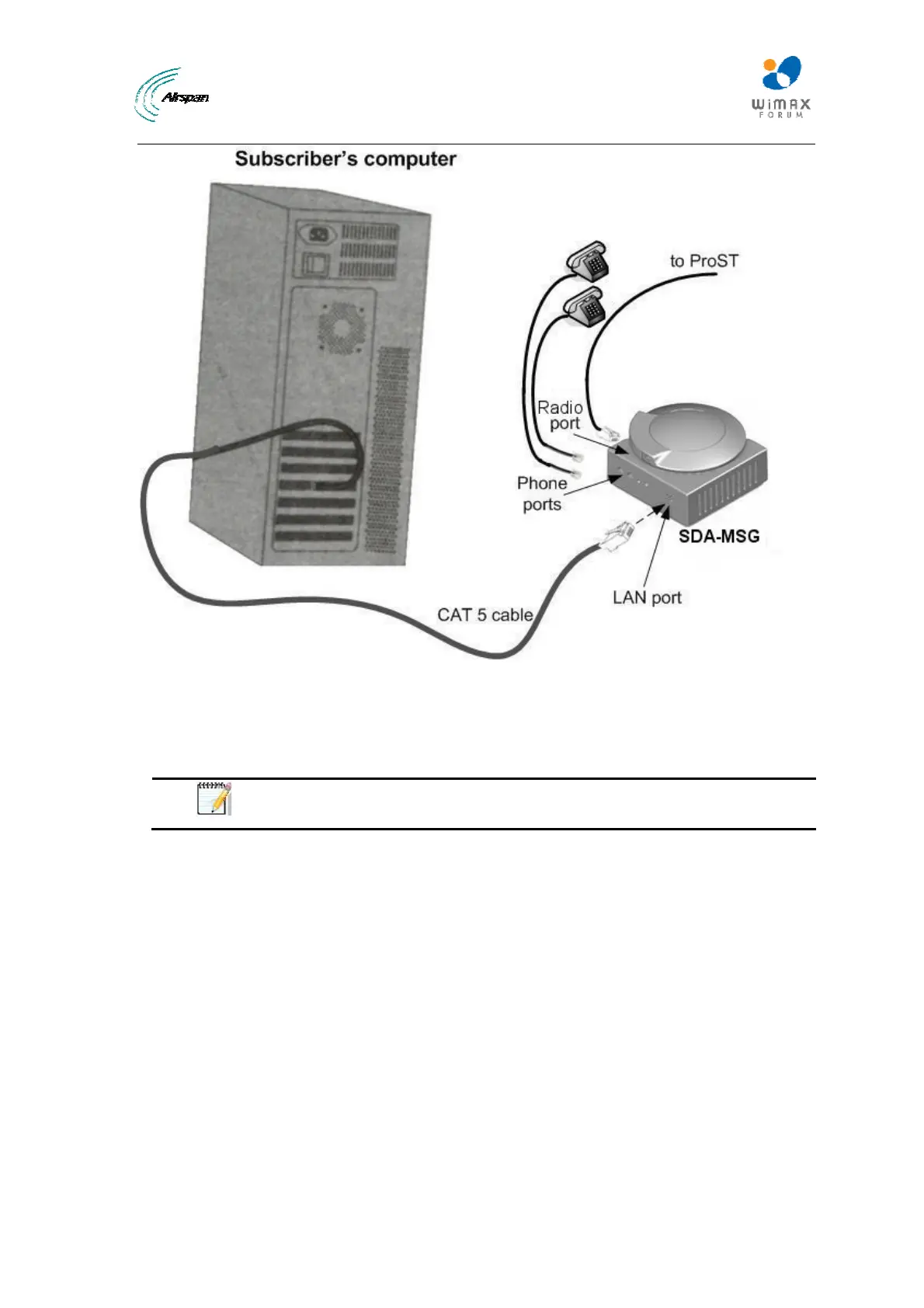

Figure38‐SDA‐MSG&PCtoProST
6.2.4 Connecting the SDA-WiFi
Connecting the SDA-WiFi – the optional extension WiFi module enabling WiFi functionality to your
ProST units.
Note: For pinout refer to SDA-1 Type II above.
To connect the SDA-WiFi’s LAN port(s) to Ethernet network and the RJ 45 port to ProST:
1. Plug a CAT 5e Ethernet cable into one or more of the SDA-WiFi unit's 8-pin RJ-45 LAN
ports.
2. Plug the other end of the CAT 5e Ethernet cable into a computer's LAN port located at the
back of the computer.
3. Plug the additional CAT 5e Ethernet cable into the PSA unit 8-pin RJ-45 Radio port and then
into the ProST.
The figures below illustrate the SDA-WiFi-to-computer cable and SDA-WiFi-to-ProST cable
connection:
