Airspan ProST - Wall Mounting ProST

ProST Hardware Installation User Guide 

Page 35 Commercial in Confidence UWB-D00111 Rev L

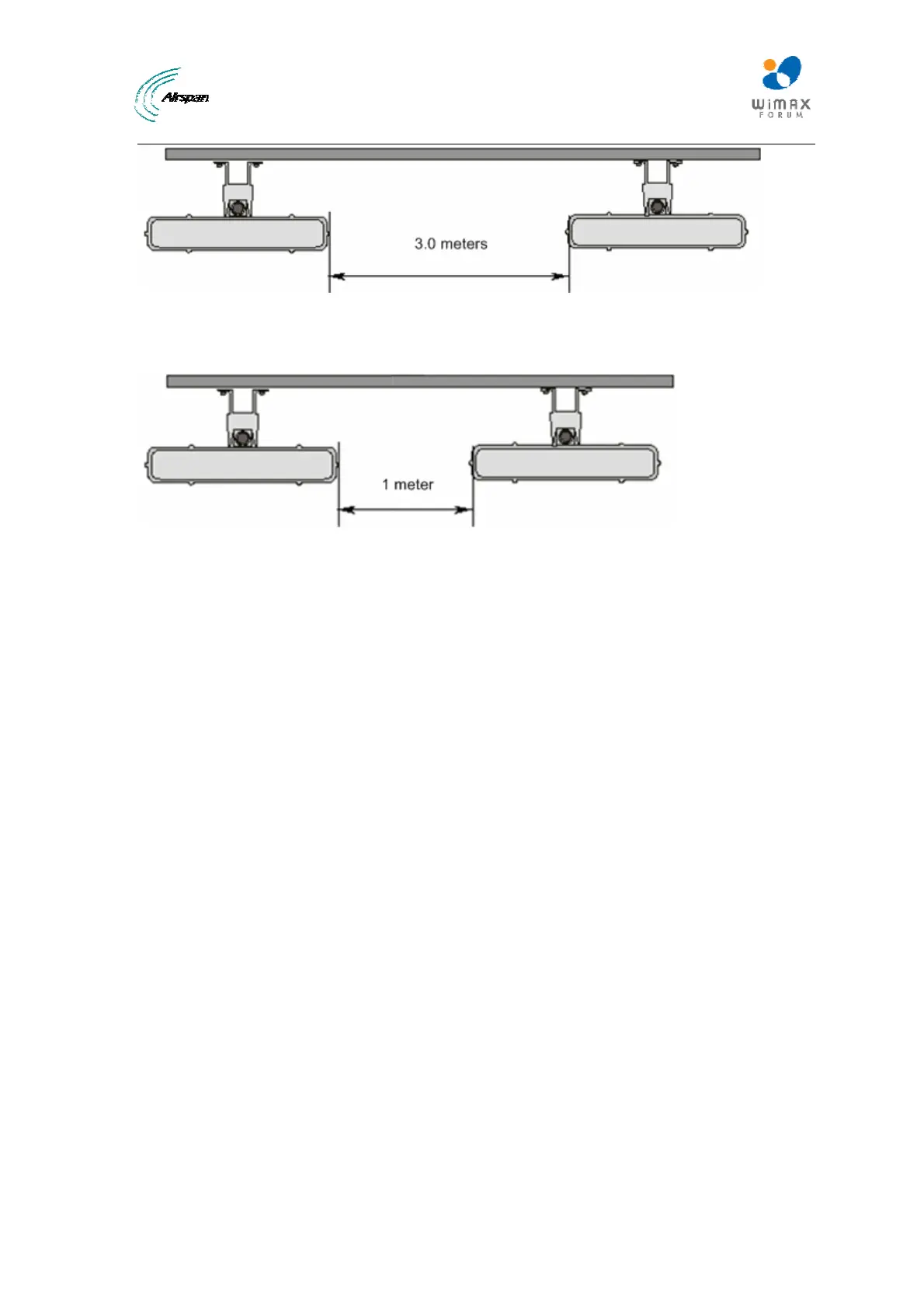

Figure17‐Mountseparation
The figure below illustrates the minimum separation between mounted ProST's when transmitting
on the same sector:
Figure18‐Mountseparation1
5.1 Wall Mounting
The ProST is wall mounted in two main stages:
¾ Attaching the mounting bracket to the ProST's mounting holes
¾ Attaching the mounting bracket (attached to the ProST) to the wall
To wall mount the ProST:
1. Position the unassembled mounting bracket on the mounting surface (e.g. wall), and then
use a pencil to mark the position of the four mounting holes. Ensure that the distance
between the hole centers are 120 mm (height) and 60 mm (width), as displayed in the figure
below showing the ProST's fixing dimensions.
