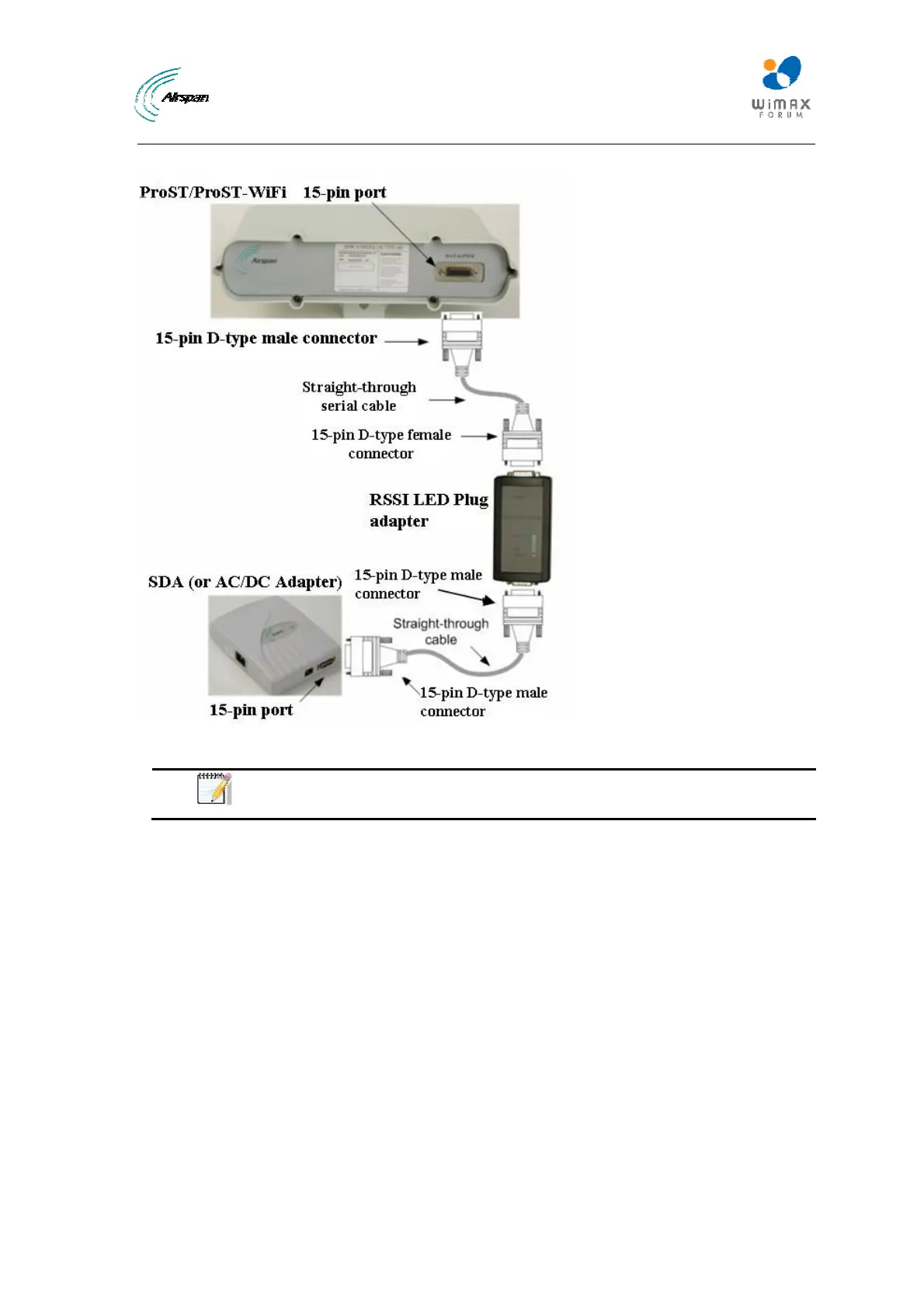

The following diagram illustrates the RSSI LED plug connections:
Figure57‐RSSIconnections
Note: RSSI response time has been proportionally increased (from previous
models) to enable longer alignment.
