31

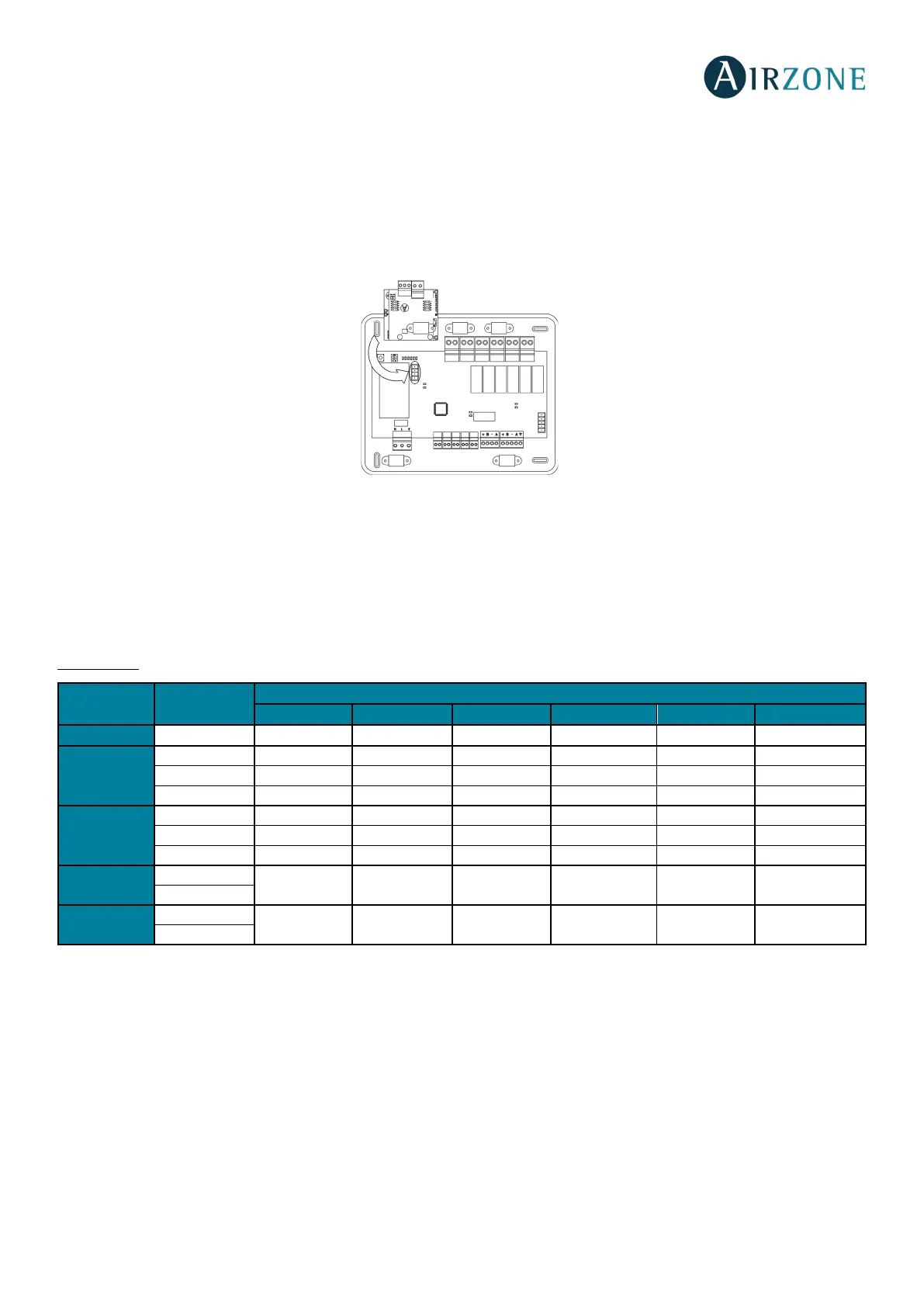

UI bus connector for Aerothermal gateway
The UI bus allows you to connect multiple gateways of for air-to-water equipment installed. These are the elements that can
be connected:
- Airzone aerothermal gateway (AZX6GAW xxx).
In order to connect these gateways, disconnect the terminal of the UI bus and fit in the connector and the fixing post of the
gateway.
Control relays
This device has 6 relays for controlling the installation. The characteristics of the control relays are I
max
of 10 A at 110/230 Vac
(voltage-free. Note that to control elements with a greater power, it is recommended to use contactors in accordance with the
power required.
Important: Remember to connect the neutral connector directly from the circuit to the element to be controlled.
Depending on the type of installation, the control relays will follow a different logic:
Aerothermal
Mode Demand
Control Relays
MODE_Y
MODE_W
AIR_Y
RAD_Y
AIR_W
RAD_W
Stop
Off
--
--
--
--
--
--
Cooling
mode
Air
ON
--
ON
--
--
--
Radiant
ON
--
--
ON
--
--
Off
--
--
--
--
--
--
Heating
mode
Air
--
ON
--
--
ON
--
Radiant
--
ON
--
--
--
ON
Off
--
--
--
--
--
--
Dry
On
-- -- -- -- -- --
Off
Ventilation
On
-- -- -- -- -- --
Off
