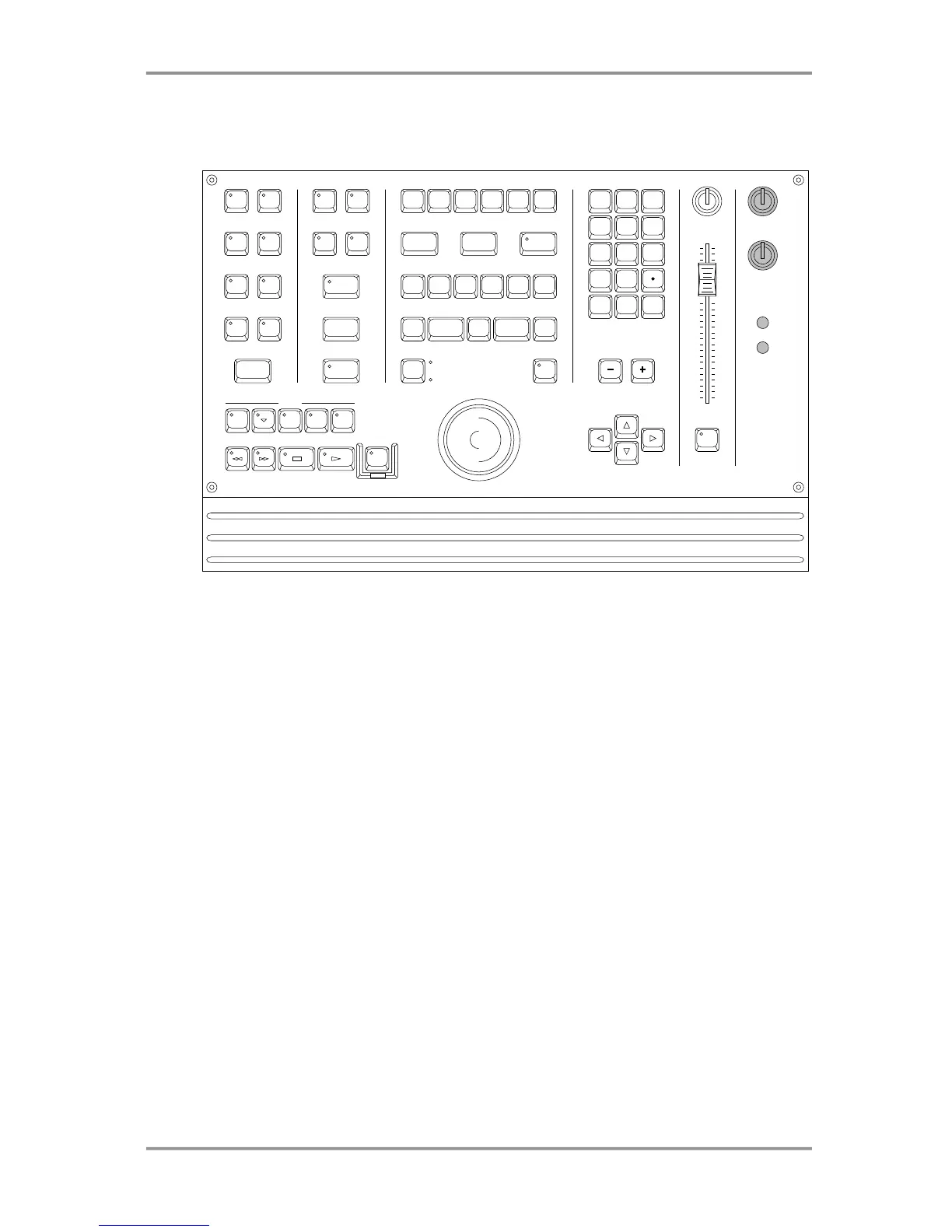

DL1500 AUDIO MONITOR - 23
Version 2.00 - March, 1996 Page 267
EXT M/C SYSTEM
USER KEYS MACRO
MIXER DSP
SAVE DIRECTORY
SHIFT
AUTO REHEARSE
CYCLE PRE-ROLL
EXT. TIME
GRAB TIME
GOTO
EXIT UNDO EXECUTE
COPY CUT ERASE PASTE INSERT TRIM
EDIT CUE IN OUTSYNC SELECT CUE
CURSOR
JOG
SPOOL
NUDGE DATA ENTRY/NUDGE
ENABLE
LEVEL
PAN LINE OUT
HEADPHONE
LEVEL
OUT A
OUT B
SET
SET
SET
SET
SET
SET SET
SHOW
MACRO REC
OFFSET
REVERSE
> CUT DISCARD IN > NOW
REDO
STORE
JOG/SPOOL
ZOOM OUT ZOOM IN
TRACK ZOOM
F1 F2 F3 F4 F5 F6
L R MIN MAX
MI MAX
UTILITIES EDITAUTOLOCATOR NUMERIC ENTRY
PLAYSHEET
+12dB
0dB
PLAY
123
456
789
0
CLR
-/< +/>
00
FRO
LAST TO
OVER
IN
OUT
FROM
REC
LOAD
The DL1500 has its own internal monitoring system allowing you to have a convenient
stereo monitor output or headphone monitor when the system is being used without an
external mixer. In order to achieve this, the special DIGITAL AUDIO OUT must be
connected from the DD1500m using the 9-pin D-sub cable provided. Inside the DL1500
are D-A converters that provide L/R MONITOR output and HEADPHONE output.
LINE OUT
The L/R MONITOR outputs on the DL1500’s rear panel should be connected to a stereo
amplifier or powered speakers. The level of the output is set using the LINE OUT control.
You may select to monitor MIX OUT A or MIX OUT B using the OUT A and OUT B
switches. If no audio is heard when you use the system, check these switches as they
may not be switched on.
HEADPHONE
A normal pair of stereo headphones may be connected to the headphone socket on the
upper rear panel and the level regulated using the HEADPHONE LEVEL control. Again,
the OUT A and OUT B switches select which output you are listening to.
This monitoring is very convenient because it allows you to use the DD1500 with nothing
other than an amp and speaker and/or headphones with tracks being mixed internally
using the DD1500’s mixer. An external mixer is not required making the system extremely
portable and self contained. This makes it ideal for track laying, especially when using the
removable MO disk as a basic editing system can be set up in a small editing room with
nothing more than a DD1500 and a VTR (or film playback machine), a DAT and/or CD for
sourcing audio and a simple stereo audio monitoring system. After the basic editing is
done, the disk can be transferred to the mixing room where it can be put into a system
where all the track outputs are installed for ‘proper’ mixdown using an external mixing
console.
