7750 SR-a Module LEDs and Connectors
142 7750 SR-a4 and SR-a8 Installation Guide
7750 SR-a Module LEDs and Connectors
The following SR-a modules are designed for use in the 7750 SR-a4 and 7750 SR-a8 chassis:
• CPM-a LEDs and Connectors on page 142
• IOM-a LEDs on page 146
See Appendix B: MDA-a and MDA-aXP Card Descriptions on page 147 for information
about individual MDA-a cards.
CPM-a LEDs and Connectors

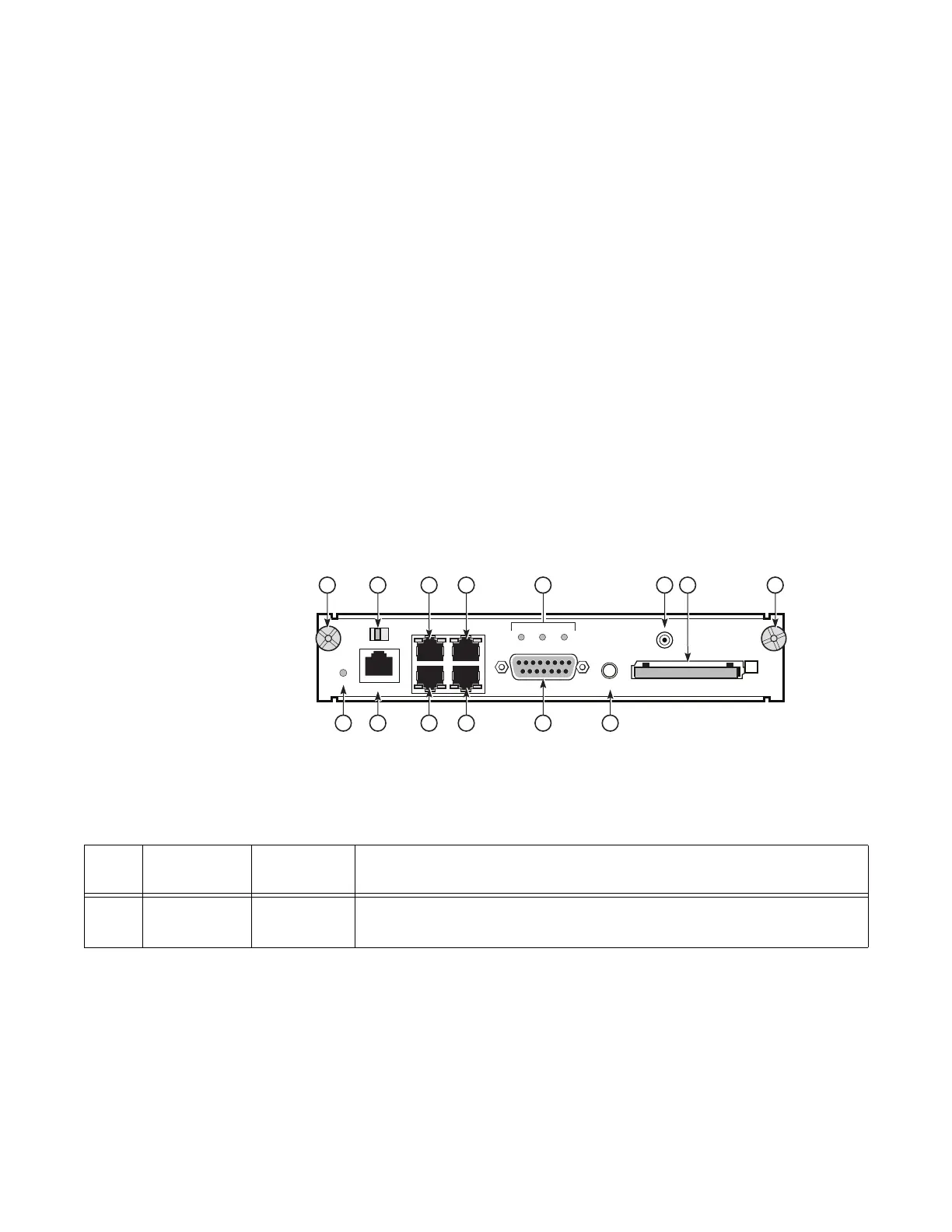

Figure 47 shows the CPM-a, which is used in the 7750 SR-a4 and 7750 SR-a8. Table 58
describes the connectors and LEDs.
Figure 47: 7750 SR-a CPM-a Features
Alarms
1PPS
ACO/LT
Critical
Lnk
DTE
Pwr
7750 CPM-a
Stat
Console
Mgmt OES
SyncE/1588
BITS
Compact Flash
DCE
Act Lnk Act
Major Minor
24539
1 3 11 13 15 7 9
2 4 126 8 10
Table 58: 7750 SR-a CPM-a Connector and LED Descriptions
Key Label/Part Sub-
category
Description
1 Captive
screws
— Secures the CPM-a in place
