Alcatel-Lucent 7750 SR-a4 - Figure 3 7750 SR-A8 Chassis Front View; Table 3 7750 SR-A8 Chassis Front View Features

7750 SR-a Chassis Features
28 7750 SR-a4 and SR-a8 Installation Guide

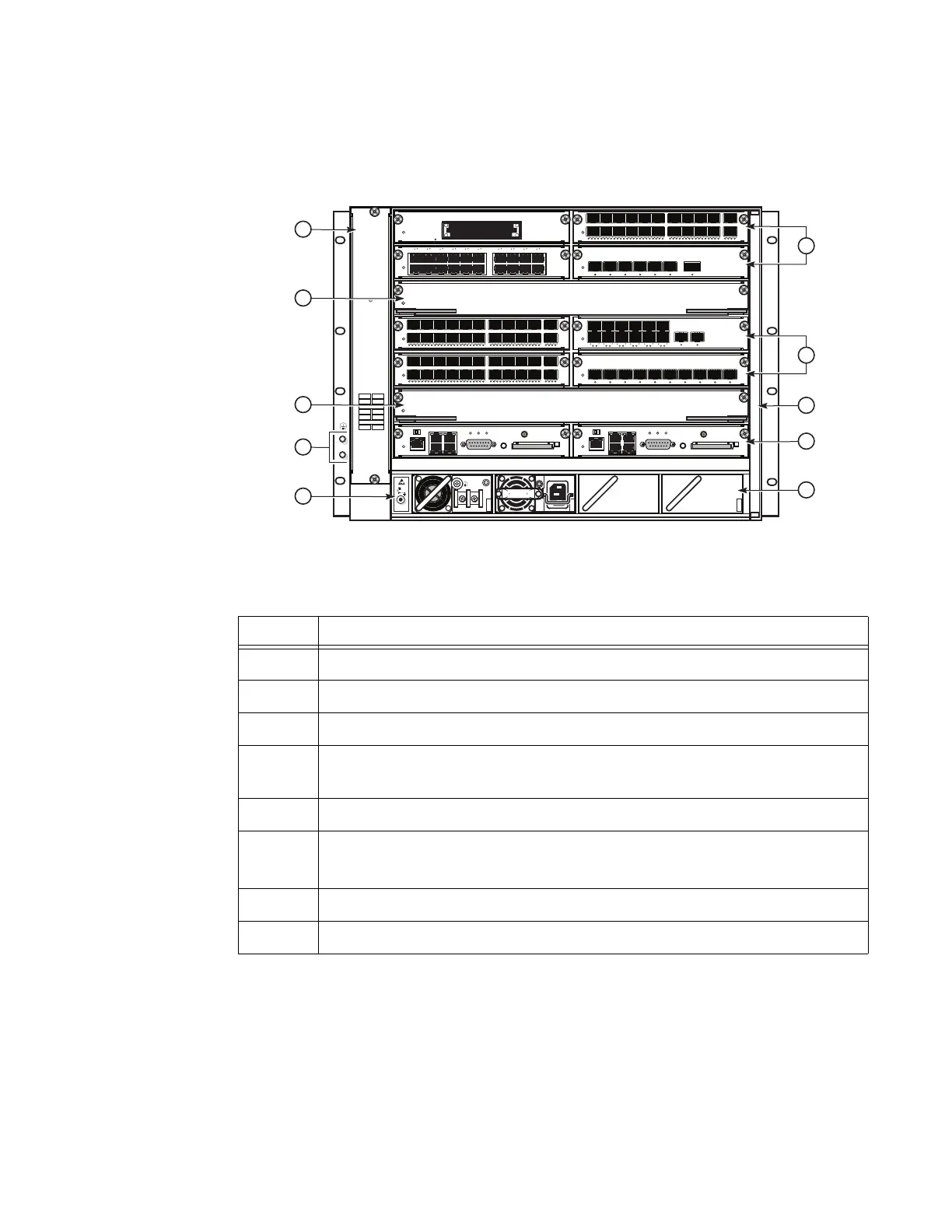

Figure 3: 7750 SR-a8 Chassis Front View
1. See 7750 SR-a8 Chassis Slot Allocation for more information about MDA-a and MDA-aXP slots.
Table 3: 7750 SR-a8 Chassis Front View Features
Key Description
1 7750 SR-a8 fan tray in vertical slot
2 IOM-a in chassis slots three and six
3 Chassis ground position on the chassis mounting flange
4 Up to four PSUs in the bottom chassis slot. Figure 3 shows impedance panels
in two of the four PSU positions.
5 ESD strap receptacle
6 Up to four MDA-a or MDA-aXP cards in the top two chassis slots and up to
four MDA-a or MDA-aXP cards in the chassis slots four and five
1
7 Up to two CPM-a cards in chassis slot seven
8 Air filter in vertical slot
24467
