Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

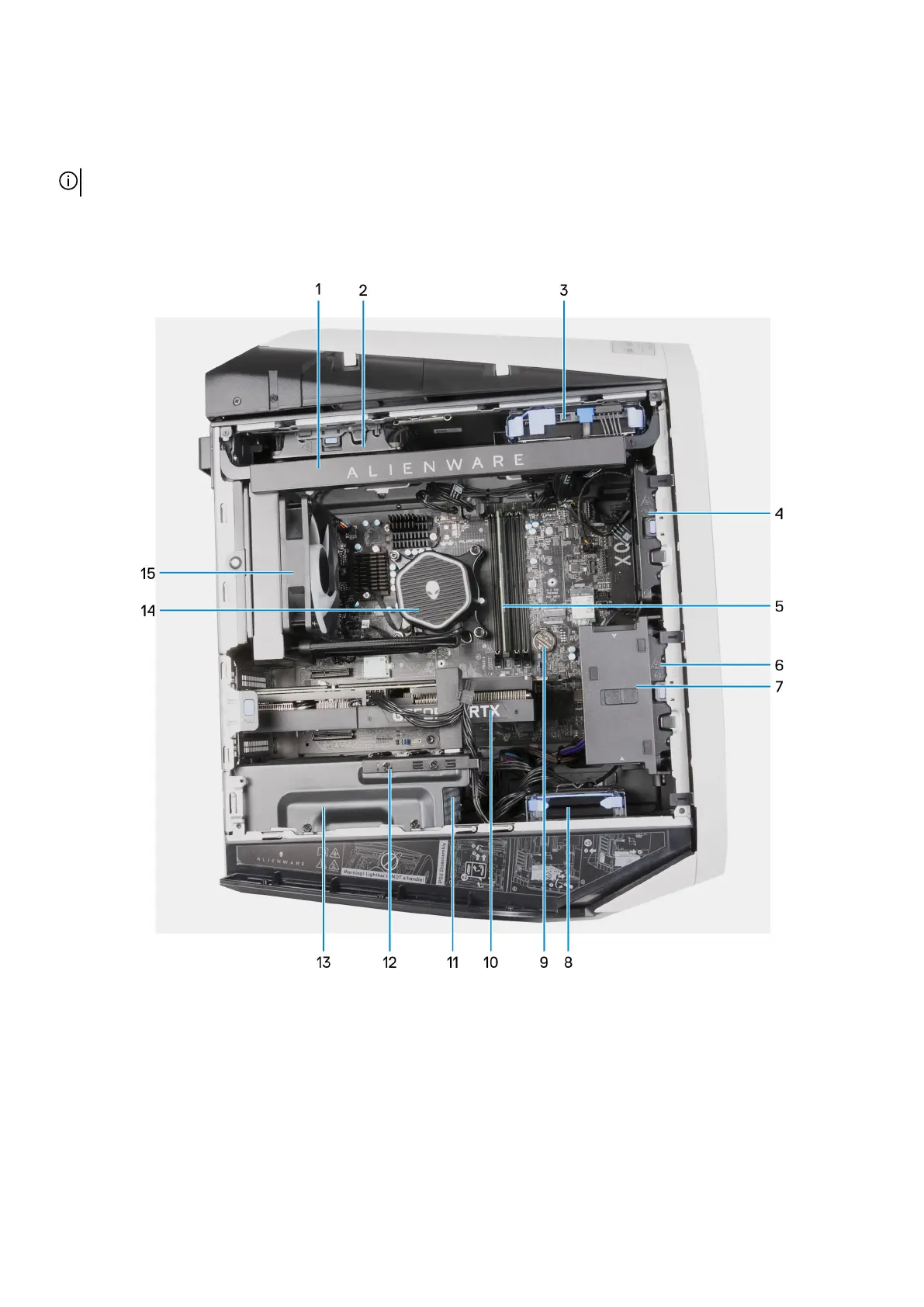

Inside view of your computer
1. Side light 2. Top-chassis fan
3. 3.5-inch hard drive 4. Front-chassis fan
5. Memory module 6. PCIe fan
7. Graphics-card end holder 8. 2.5-inch hard drive
9. Coin-cell battery 10. Graphics card
11. Power-supply unit 12. Graphics-card bracket holder
13. Power-supply unit bracket 14. Processor cooler
15. Radiator and fan assembly
10
