Solid-state drive
Removing the 2230 solid-state drive in SSD slot one
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the left-side cover.
About this task
NOTE: This procedure applies only to computers shipped with a 2230 solid-state drive installed in SSD slot one.

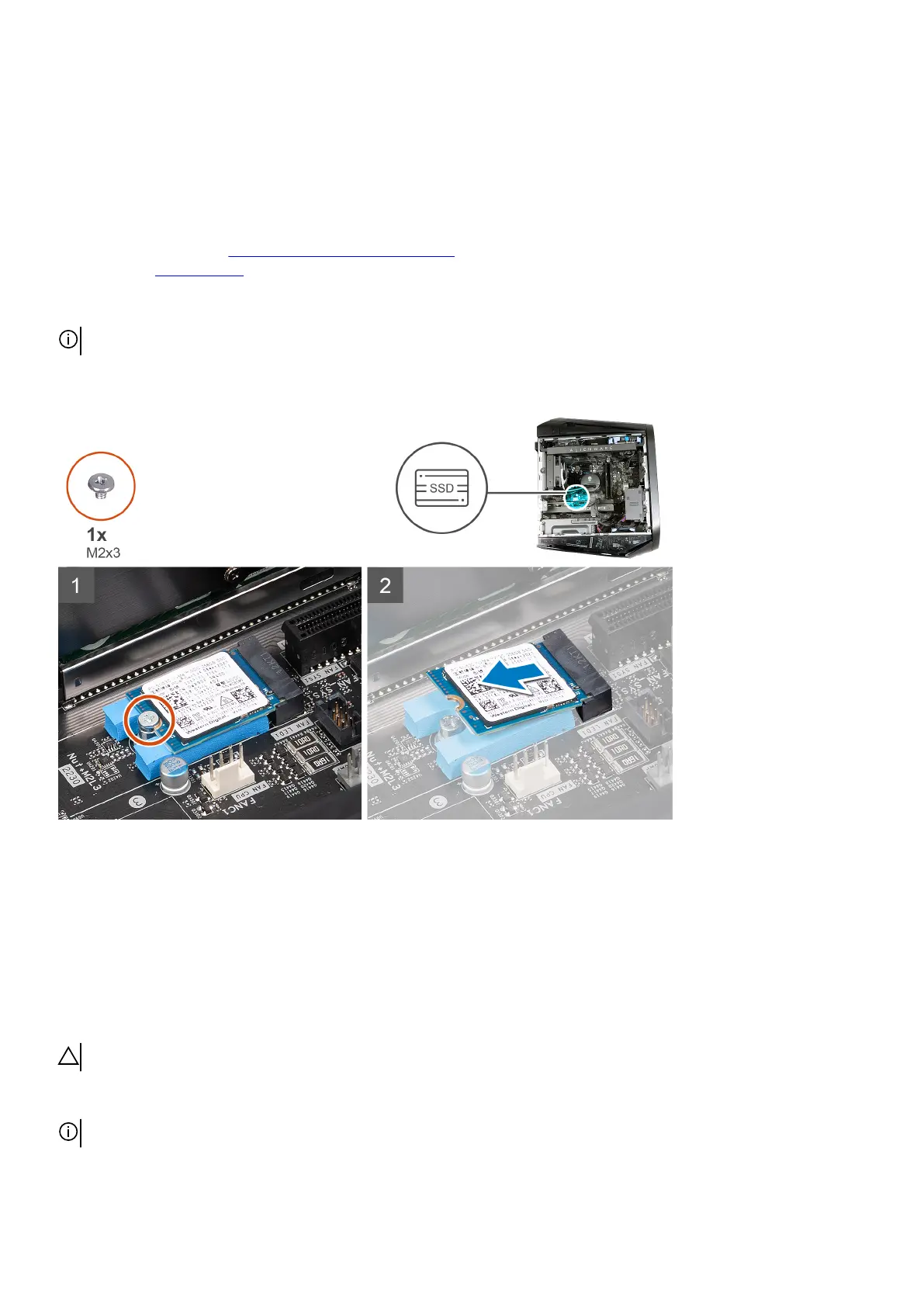

The following images indicate the location of the 2230 solid-state drive that is installed in SSD slot one and provide a visual
representation of the removal procedure.
Steps
1. Remove the screw (M2x3) that secures the 2230 solid-state drive to the system board.
2. Slide and lift the 2230 solid-state drive off SSD slot one on the system board.
Installing the 2230 solid-state drive in SSD slot one
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
About this task
NOTE: This procedure applies only to computers shipped with a 2230 solid-state drive installed in SSD slot one.
