2. Install the top cover.
3. Install the left-side cover.
4. Follow the procedure in After working inside your computer.
Side light
Removing the Side light
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the
top cover.
4. Remove the right-side cover.
5. Remove the front bezel.
About this task
NOTE: Side light is available only on computers that are shipped with clear left-side covers.

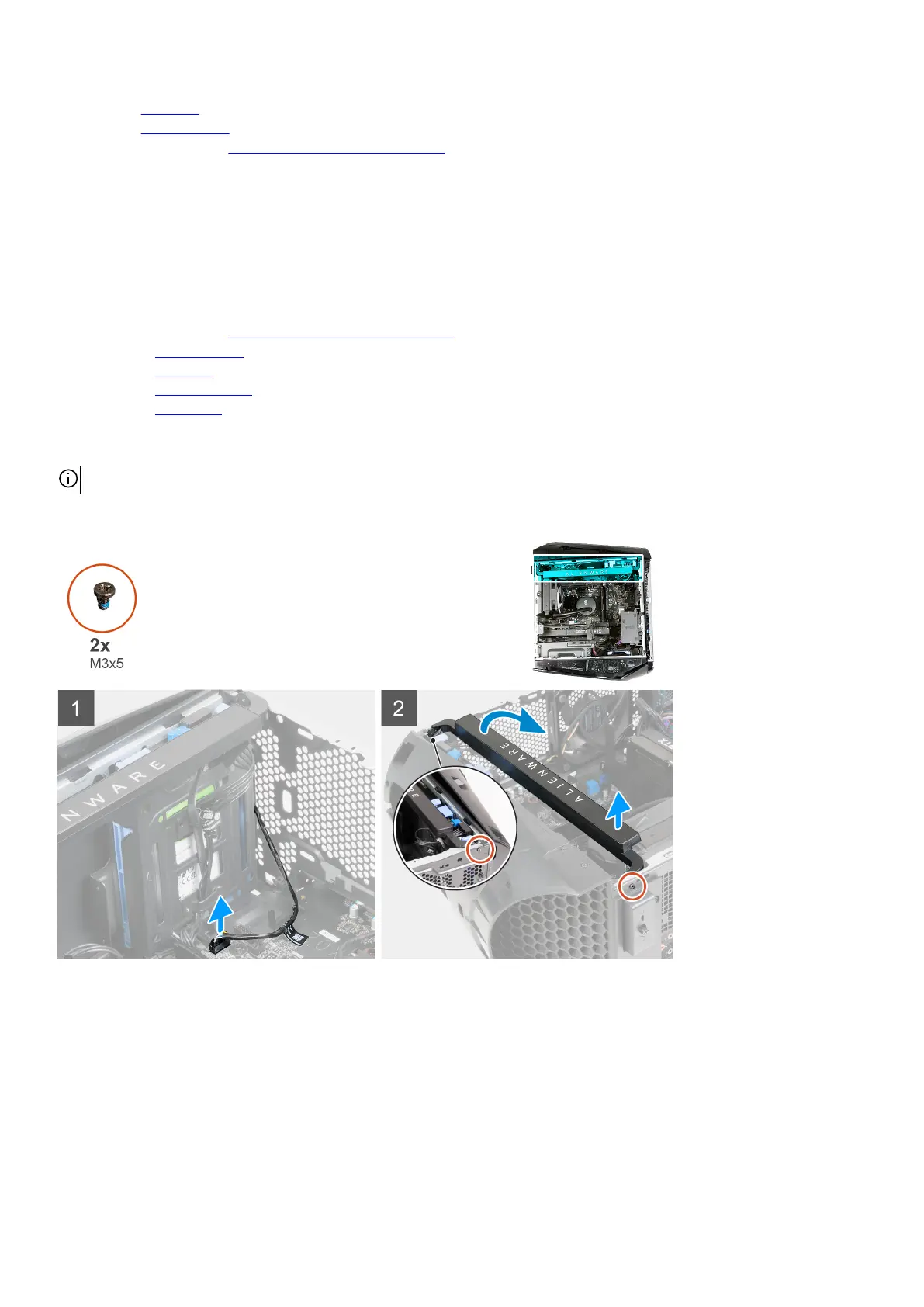

The following images indicate the location of the Side light and provide a visual representation of the removal procedure.
Steps
1. Lay the computer on its right side.
2. Disconnect the Side-light cable from the system board.
3. Remove the two screws (M3x5) that secure the Side light to the chassis.
4. Lift the left side of the Side light bar slightly from the screw hole at the rear of the chassis.
5. Lift the right side of the Side light bar slowly from the screw hole at the front of the chassis.
6. Lift the entire Side light bar from the chassis.
24
