Steps

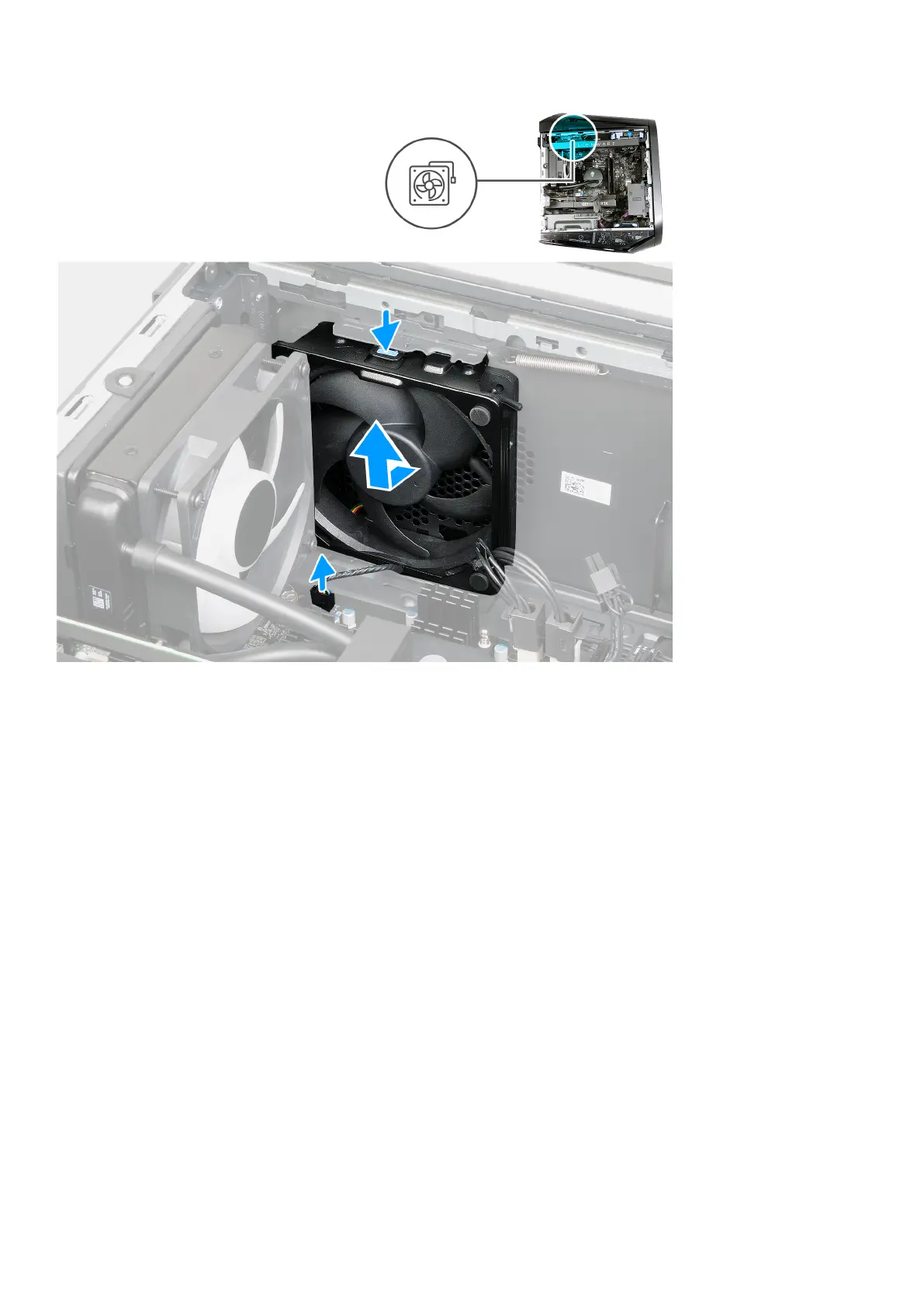

1. Lay the computer on the right side.
2. Disconnect the top-chassis fan cable from the system board.
3. Press the releasing clip of the top-chassis fans.
4. Slide and lift the top-chassis fan from the chassis.
Installing the top-chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top-chassis fan and provide a visual representation of the installation procedure.
70
