15. Solid-state drive slot (M.2 PCIe SSD0) 16. PCI-Express x4 slot (SLOT1)
17. Rear-chassis fan connector (FAN_SYS1) 18. FAN_SYS1 LED connector
19. Fan pump connector (FAN PUMP) 20.Pump LED connector (FAN PUMP LED)
21. CPU fan connector 22.Top-chassis fan connector (FAN_SYS4)
23. CPU socket 24.Power-supply connector (ATX2)
25.Power-supply connector (ATX3) 26.Memory-module slot, DIMM3
27. Memory-module slot, DIMM1 28.Memory-module slot, DIMM4
29.Memory-module slot, DIMM2 30.SATA power connector
31. Side light connector
Recommended tools
The procedures in this document may require the following tools:
● Philips screwdriver #1
● Flat-head screwdriver
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

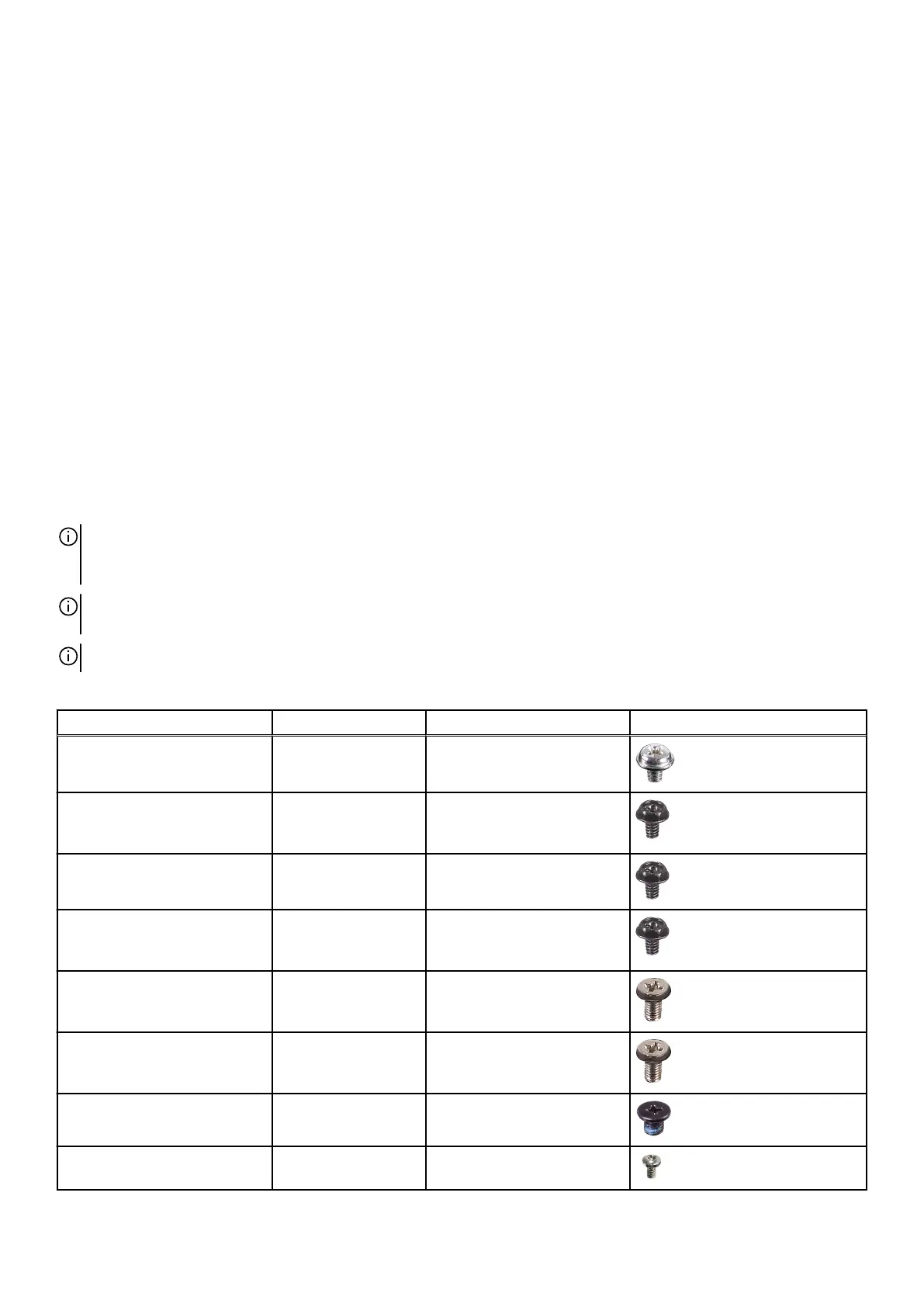

Table 1. Screw list
Component Screw type Quantity Screw image
Power-supply unit bracket #6-32x1/4" 2
Power-supply unit bracket (for
computers shipped with clear
left-side cover)
#6-32x1/4" 2
Power-supply unit #6-32x1/4" 4
Power-supply unit (for
computers shipped with clear
left-side cover)
#6-32x1/4" 4
Side light (for computers shipped
with clear left-side cover)
M3x5 2
Radiator and fan assembly M3x5 1
Antennas M3x3 2
Top bezel M3x7 4
12
