Steps
1. Remove the screw (M2x3) that secures the 2280 solid-state drive to the system board.
2. Slide and lift the 2280 solid-state drive off SSD slot two on the system board.
Installing the 2280 solid-state drive in SSD slot two
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
About this task
NOTE: This procedure applies only to computers shipped with a 2280 solid-state drive installed in SSD slot two.
NOTE: Depending on the configuration ordered, your computer may support either 2230 solid-state drive or 2280 solid-state
drive in SSD slot two.
If you want to replace your 2280 solid-state drive with a 2230 solid-state drive, see Installing the 2230 solid-state drive in SSD slot
two.

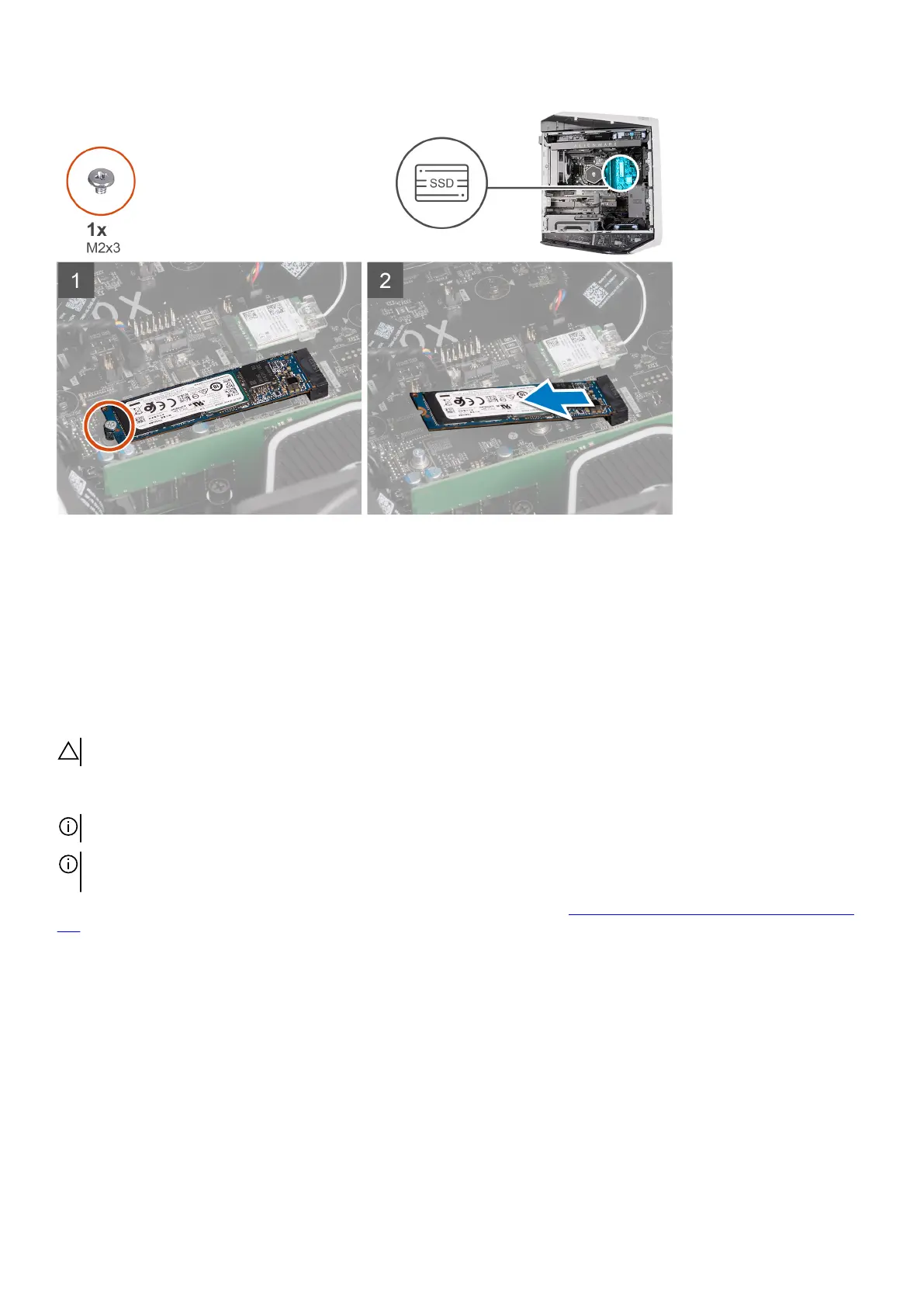

The following images indicate the location of the 2280 solid-state drive that is installed in SSD slot two and provide a visual
representation of the installation procedure.
