Steps

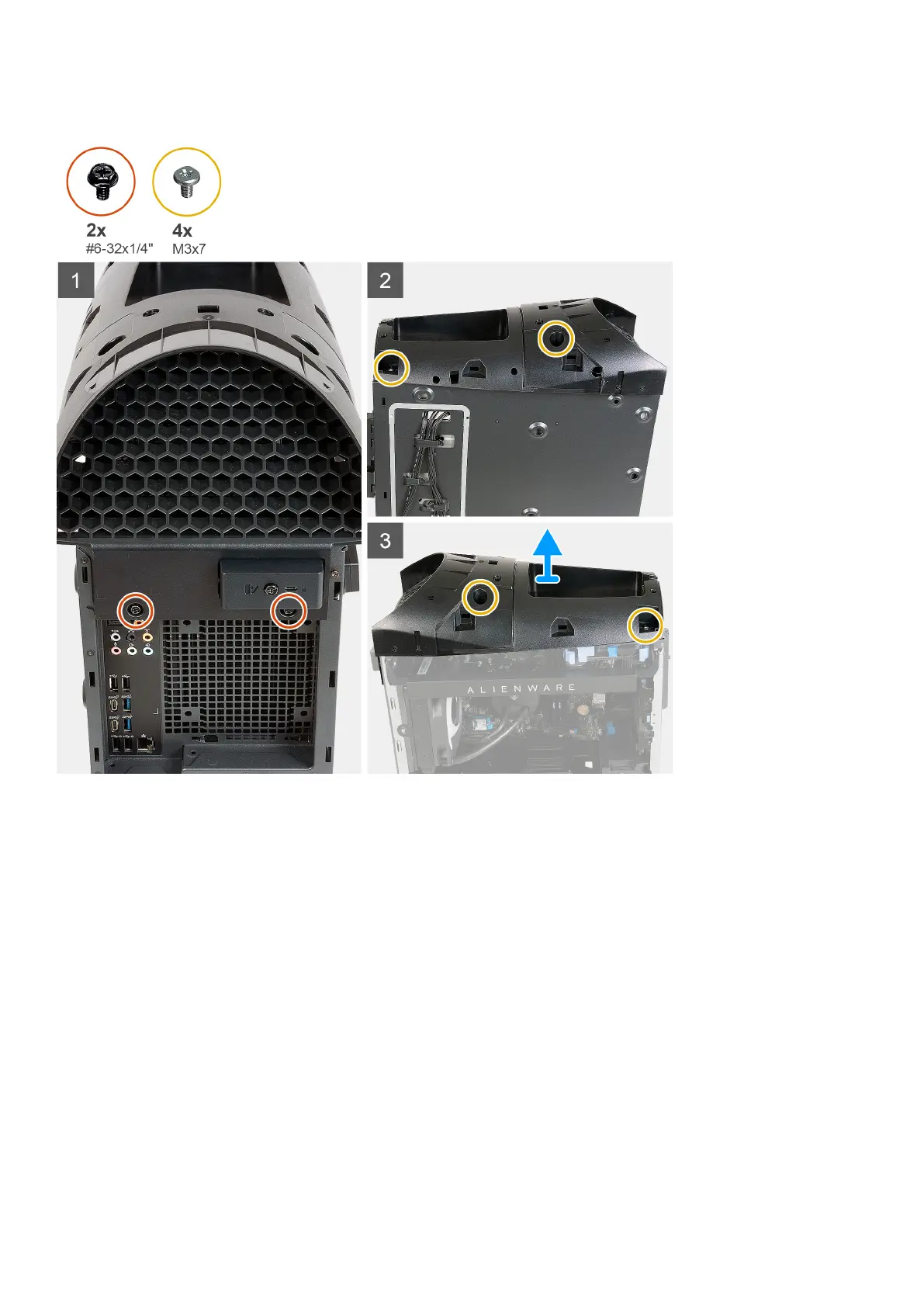

1. Place the computer in an upright position.
2. Remove the two screws (#6-32x1/4") that secure the top bezel to the chassis.
3. Remove the four screws (M3x7) that secure the top bezel to the chassis.
4. Lift the top bezel off the chassis.
Installing the top bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top bezel and provide a visual representation of the installation procedure.
52
