CAUTION: Incorrect alignment of the processor liquid-cooling assembly can damage the system board and processor.
CAUTION: If either the processor or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
that thermal conductivity is achieved.
About this task

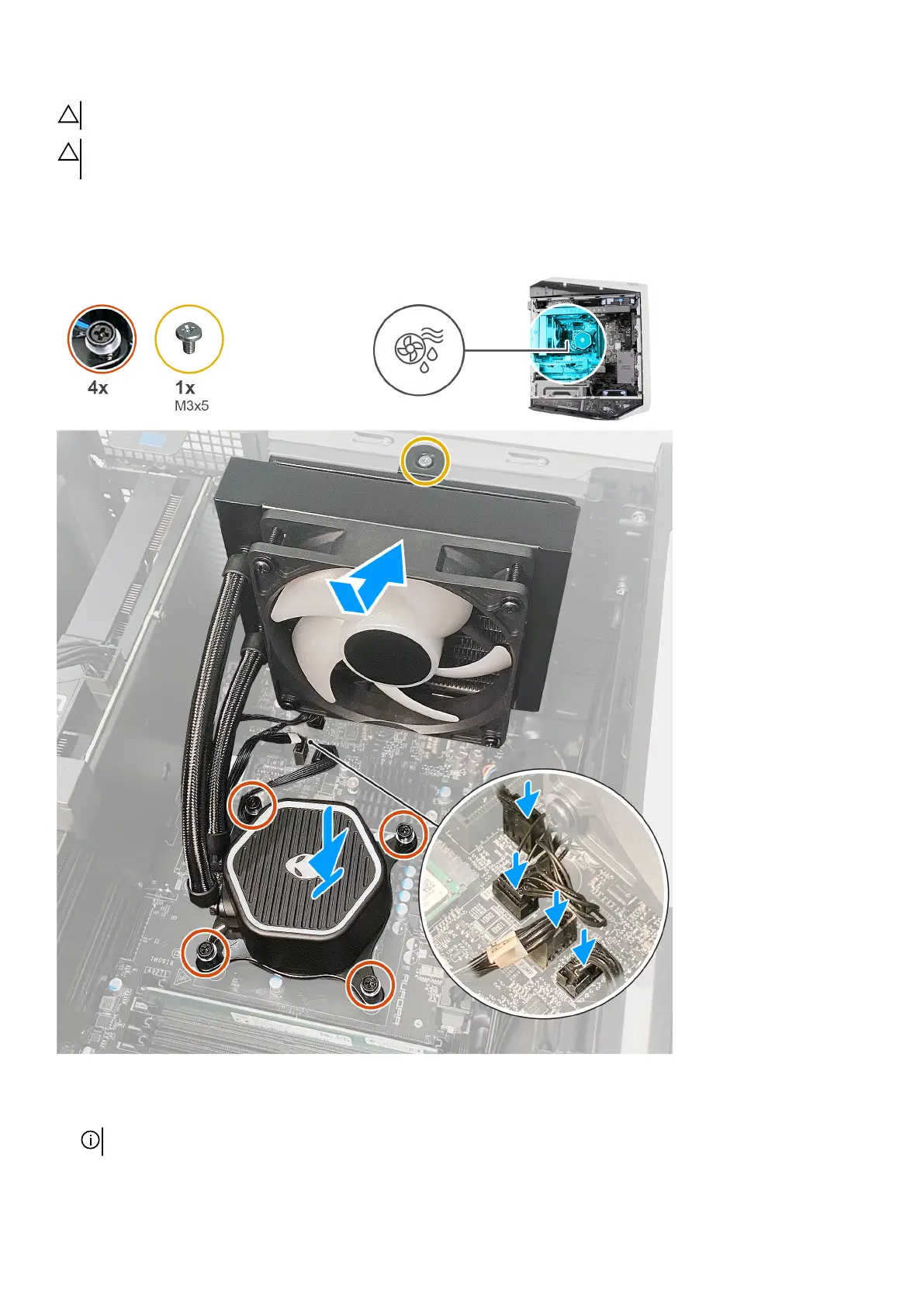

The following images indicate the location of the processor liquid-cooling assembly and provide a visual representation of the
installation procedure.
Steps
1. Align the screw hole of the radiator and fan assembly to the screw hole on the chassis.
NOTE: Ensure that the hoses are facing the front of the computer.
2. Replace the screw (M3x5) that secures the radiator and fan assembly to the chassis.
