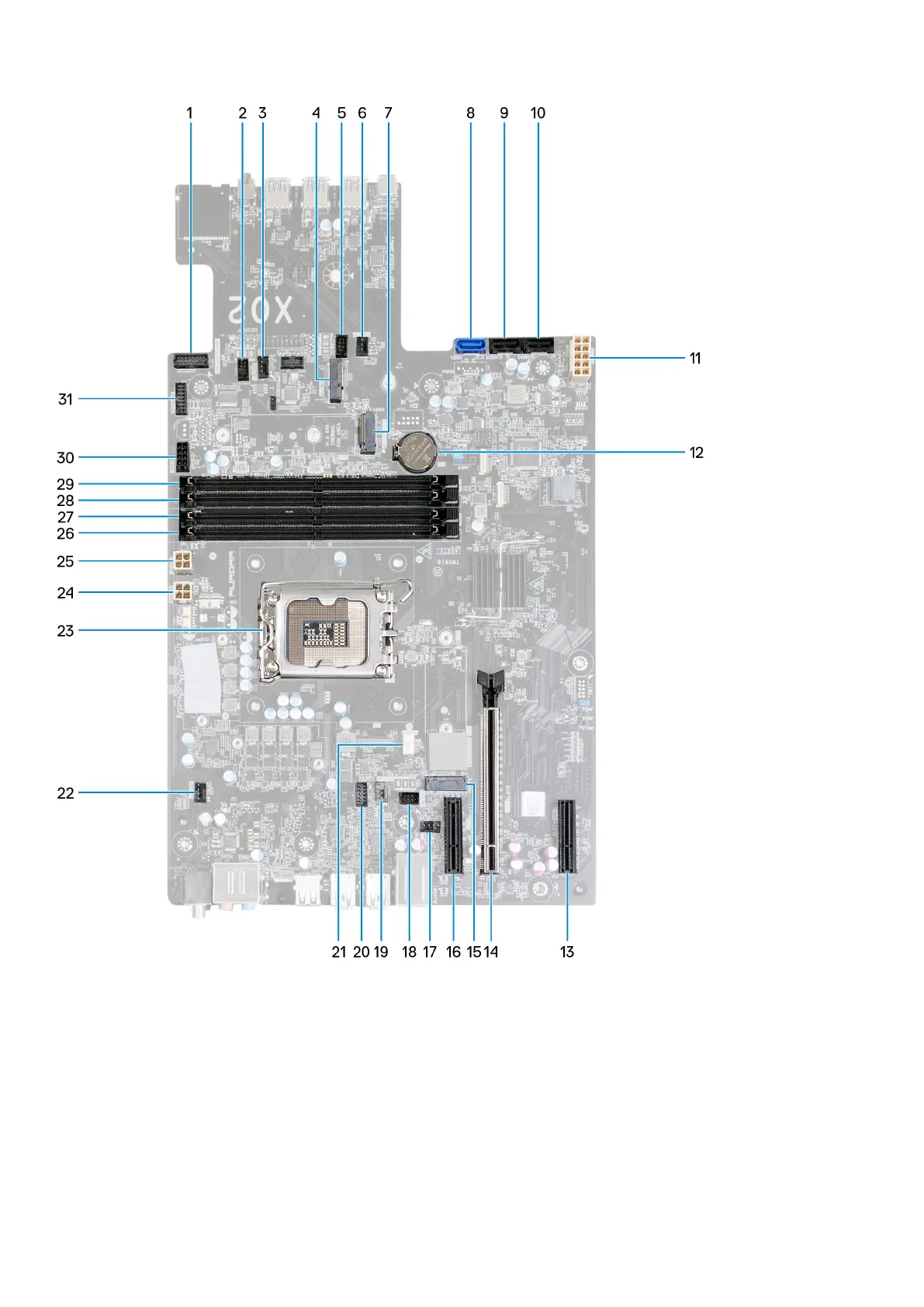

1. Ring Ambient Power Button connector
2. FAN_SYS3 LED connector
3. Front-chassis fan connector (FAN_SYS3)
4. Wireless-card slot (M.2 WLAN)
5. FAN_SYS2 LED connector
6. Front-chassis fan connector (FAN_SYS2)
7. Solid-state drive slot (M.2 PCIe SSD1)
8. SATA 6 Gbps drive connector (SATA0)
9. SATA 6 Gbps drive connector (SATA1)
10.SATA 6 Gbps drive connector (SATA2)
11. Power-supply connector (ATX SYS)
79
