Caution
Do not contaminate the sensitive area of the camera. Avoid exposing optical
parts to dust and dirt during handling operations; always operate in a clean
working area, as dry as possible and free from dust. For best results, keep the
camera facing downwards during operations.
3.4.2.1 Maximum lens protrusion
Maximum protrusion for a lens is the distance from the front surface of the sensor to the mounting
surface of lens ange. NAD-C C-Mount adapter allows to install only lens with maximum protrusion of
12.70 mm.

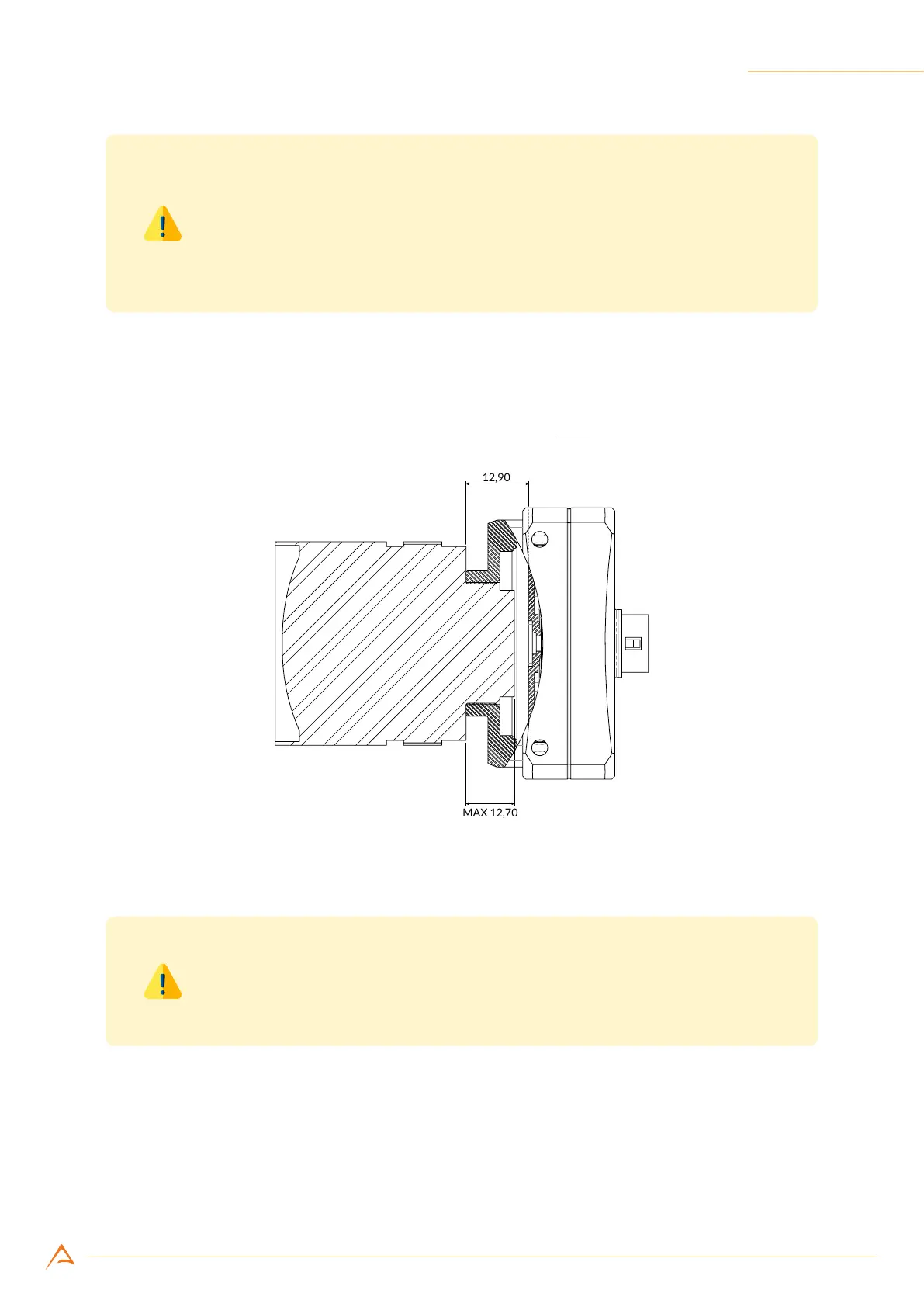

Figure 3.7: Maximum protrusion for C-Mount type lens
Warning
Mounting a lens with a protrusion longer that the maximum admitted value
may seriously damage your NECTA camera and your lens.
3.4.3 F-Mount adapter
The NAD-F adapter allows interfacing any NECTA camera models with standard F-mount lenses. To
connect the adapter, simply align the NAD-F adapter to the front holes of the camera and tighten the
four M4 hex screws supplied with it.
