4. Interfacing to the world 43

Interfacing To The

World

NECTA features a robust circular I/O connector (Hirose p/n HR10-10R-12SA (73)) interfacing to exter-

nal signals. The I/O connector provides two input lines, two output lines and a programmable I/O line; all

lines support both differential and single-ended signaling according to the RS-422, RS-644, LV-TTL/LV-

CMOS and 12 V-24 V standards (where available. Check sec 4.0.1 for further information).

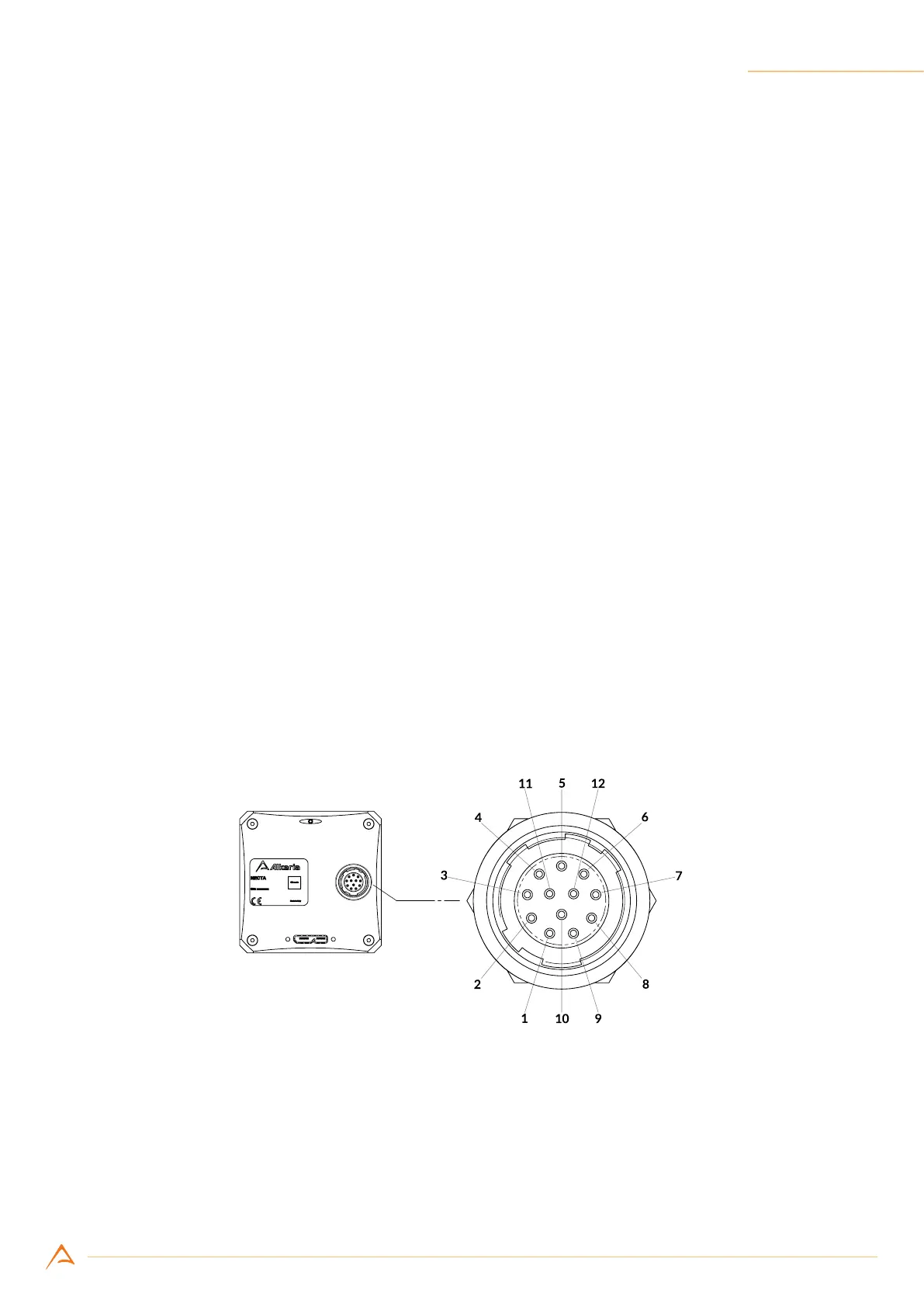

The I/O connector is located on the back of the camera as indicated in the following gure:

Figure 4.1: NECTA I/O Connector
