Alkeria NECTA Series - Mechanical Description

3. Hardware Description 31
Quantum Efficiency [%]
Wavelength [nm]
300 400 500 600 700 800 900 1000 1100
Awaiba sensors quantum efficiency
0
10
20
30
40
50
60
70
80
90

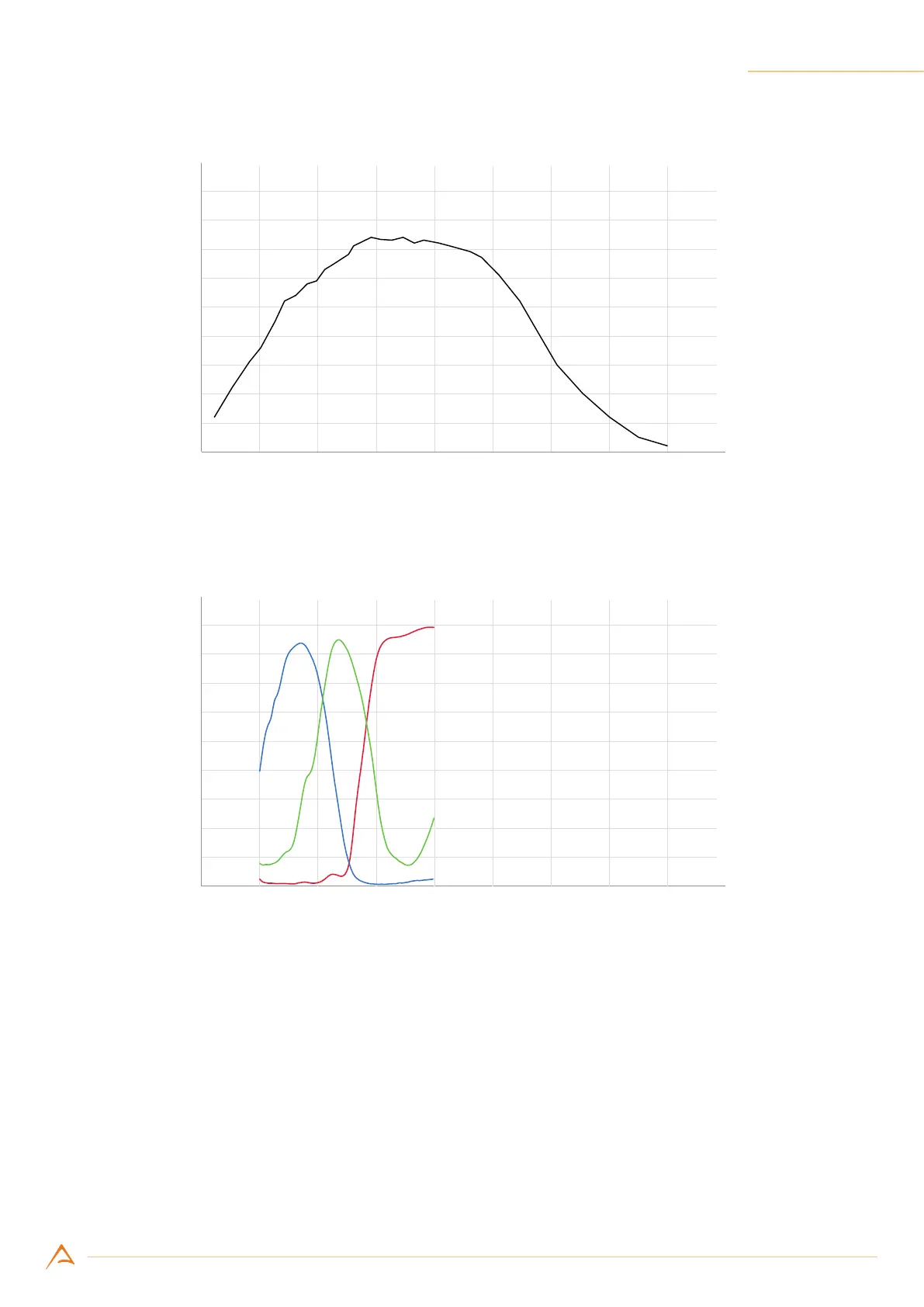

Figure 3.2: Quantum efciency of NECTA monochrome sensors - Source: AMS
0
10
20
30
40
50
60
70
80
90
Transmission [%]
Wavelength [nm]
300 400 500 600 700 800 900 1000 1100
Awaiba RGB filter transmission
Figure 3.3: Bayer lter transmission of NECTA color sensors - Source: AMS
3.2 MECHANICAL DESCRIPTION
The housing of NECTA cameras is made of black anodized aluminum alloy, using high precision machin-
ing. It is provided with four xing front holes (M4), intended for custom lens or lens adapter connection,
and two M4 holes at each side of the camera, for connecting to the mount, as shown by the drawings
in Figure 3.4. When designing the bracket that will support your NECTA , refer to the reference planes
(marked as A, B and C); using these reference planes will allow to achieve a precise positioning of the
devices with signicant repeatability. When the lens is mounted, the camera housing conforms to pro-
tection class IP30.
