3.3 SENSOR POSITION
Figure 3.5 shows the position and orientation of the sensitive area of the NECTA sensor referred to
the main reference plane. The marking in the upper left in the gure (marked as Sensor reference) helps
identifying the direction of the sensor and the position of the rst pixel of its sensitive area.
2
1
,
7
Sensor reference
28
7,15 (2K-7 and 4K-3)
14,30 (4K-7 and 8K-3)
28 19
19

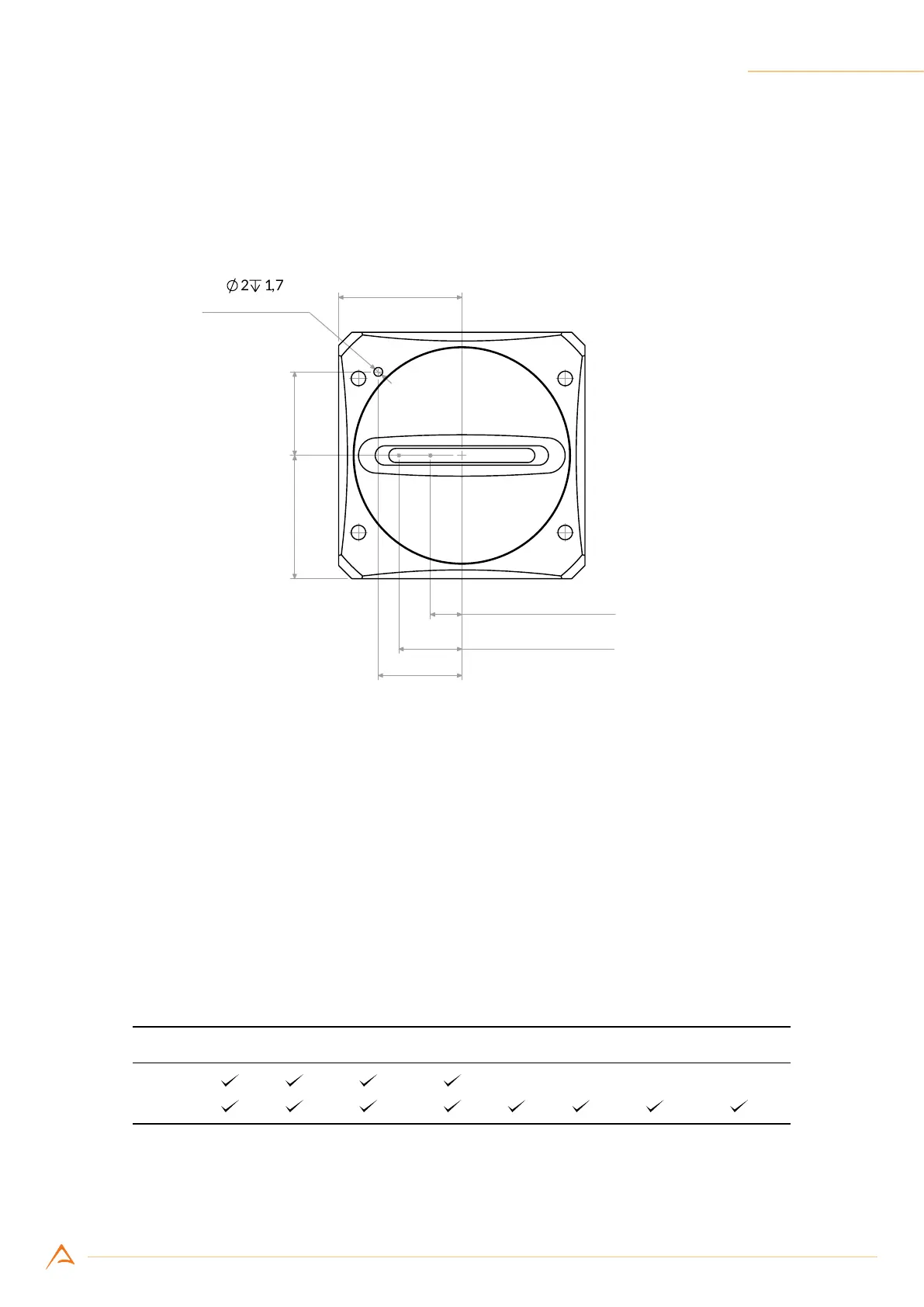

Figure 3.5: NECTA sensors position and orientation
3.4 ADAPTERS FOR STANDARD LENS
NECTA family has some adapters available (described in Table 3.1) which allow using standard lens. The
housing of NECTA cameras also allows to easily build custom adapters for optical lens, to achieve the
performance, economy and precision level required even by the most demanding application.
3.4.1 Choosing the right adapter
Due to sensor width, not all NECTA camera can be equipped with C-Mount lens mount. Table 3.1 shows
a compatibility diagram between NECTA models and available lens adapters.
Adapter N2K-7 N2K2-7 N2K2-7C N4K-3 N4K-7 N4K2-7 N4K2-7C N8K-3
C-Mount N.A N.A N.A N.A
F-Mount
Table 3.1: Adapter compatibility with NECTA cameras
