Rockwell Automation Publication 440R-UM012E-EN-P - November 2018 13
Chapter 2
Installation
This chapter explains the mounting and terminal removal procedures. It also
provides information to select the proper enclosure and help prevent
overheating.
Mounting Dimensions

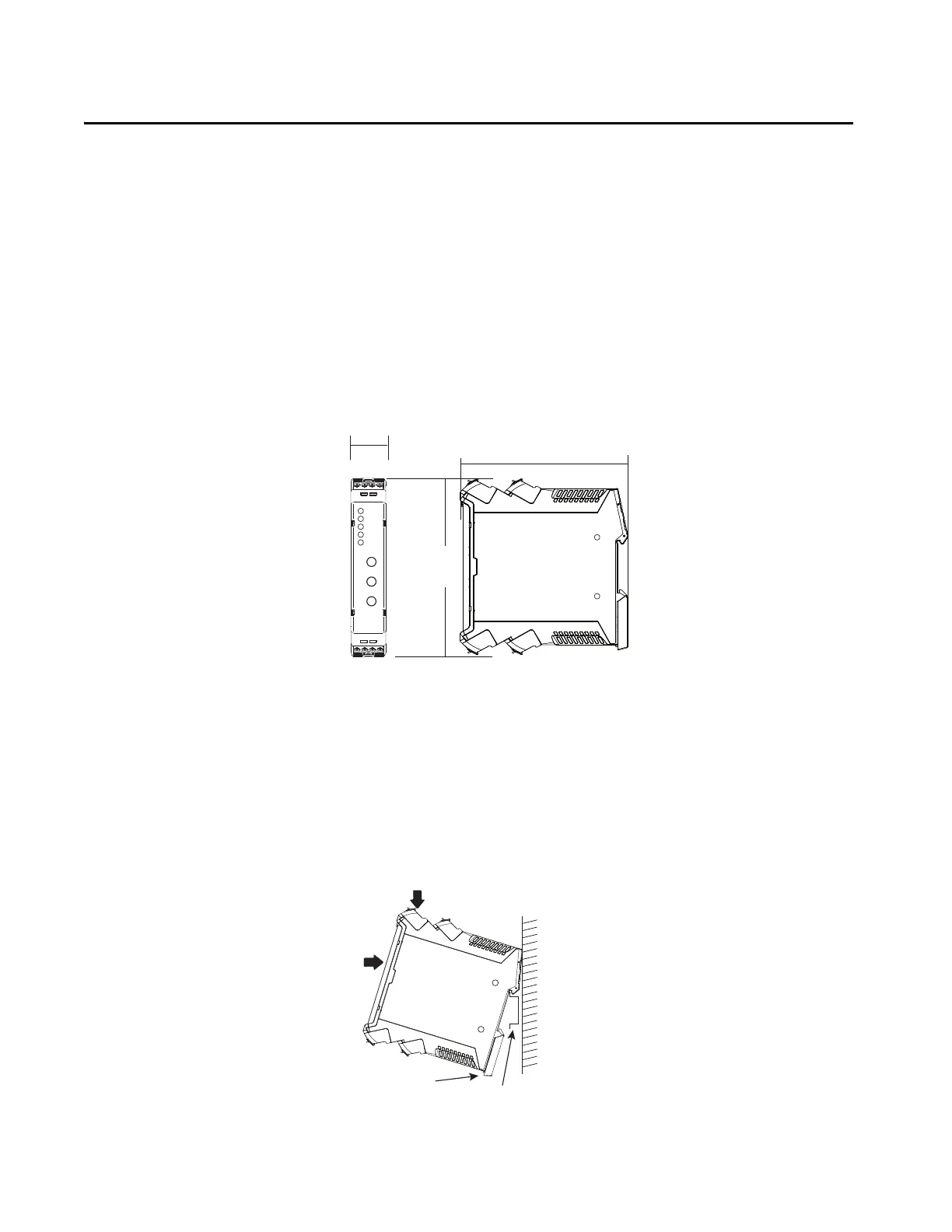

Figure 2 - Dimensions [mm (in.)]
DIN Rail Mounting and
Removal
The GLP safety relay mounts onto 35 mm DIN rail: 35 x 7.5 x 1 mm
(EN50022 - 35 x 7.5).
1. Hold the top at an angle.
2. Slide down until the housing catches the rail.
3. Swing the bottom down and push until the latch clips onto the rail.
Figure 3 - DIN Rail Mounting
113.6 (4.47)
119.14
(4.69)
22.5
(0.88)
