Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009

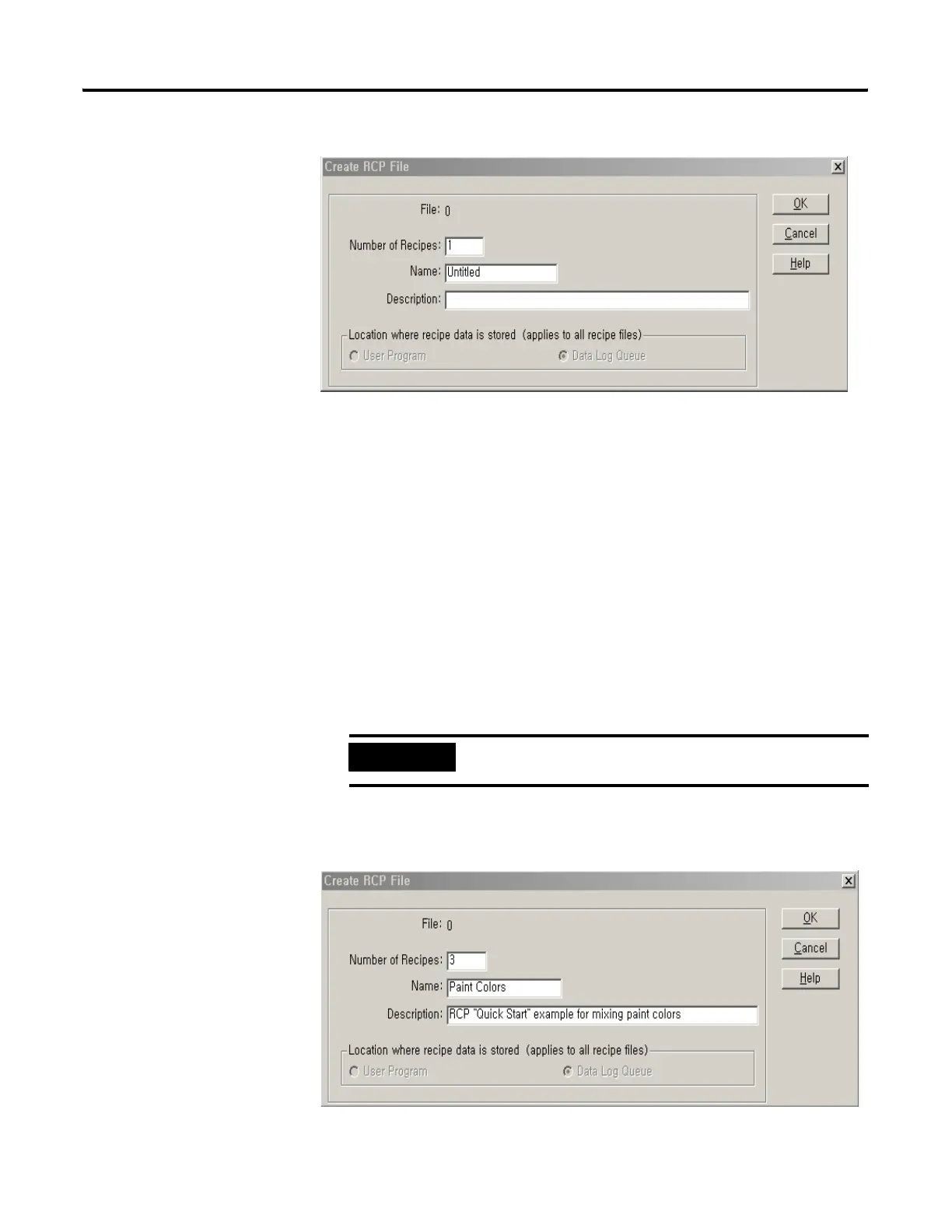

Recipe and Data Logging 429
• File - This is the number identifying the RCP file. It is the Recipe File
Number used in the RCP instruction in your ladder program and
identifies the recipe database.
• Number of Recipes - This is the number of recipes contained in the
RCP file. This can never be more than 256. This is the Recipe
Number used in the RCP instruction in your ladder program.
• Name - This is a descriptive name for the RCP file. Do not exceed 20
characters.
• Description - This is the file description (optional).
• Location where recipe data is stored (applies to all recipe files) -
This allows you to designate a memory location for your RCP files.
• User Program - Cannot be used.
• Data Log Queue - Recipe data is stored in the data log memory
space (max. 64K bytes).
3. Enter the RCP file parameters as shown below. When finished click
on OK.
IMPORTANT
All the recipe data is stored into the controller’s
memory module (1763-MM1).
