Publication 1763-RM001C-EN-P - October 2009
430 Recipe and Data Logging

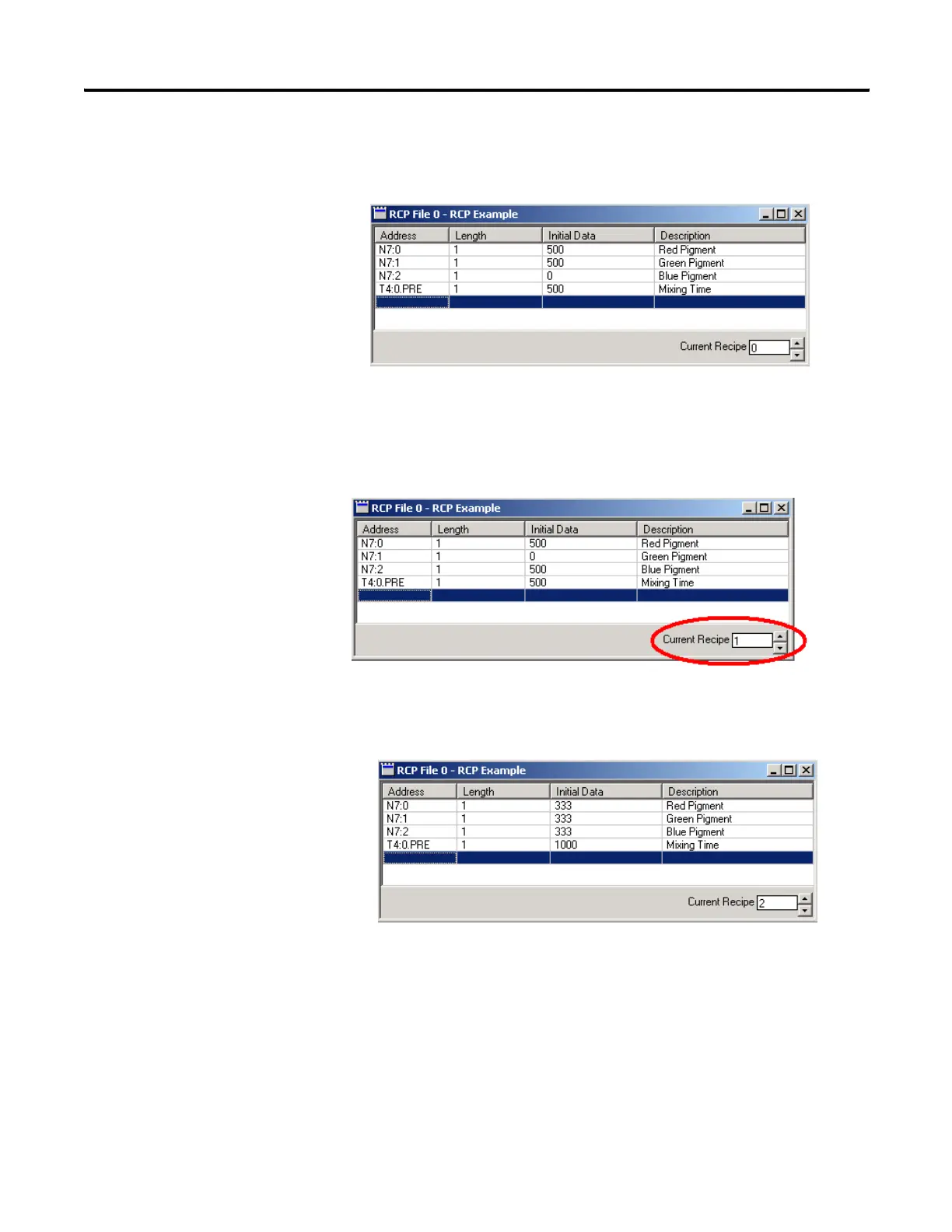

4. A new window will appear. In this window, enter the values as
shown below.
5. Change the Current Recipe from 0 to 1. Notice the addresses were
duplicated, but the data was not.
6. Enter the data for Recipe 1 as shown below.
7. Change from Recipe 1 to Recipe 2 and enter the following data.
The Recipes are now configured.
8. Create the following ladder logic.
