Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
Recipe and Data Logging 431

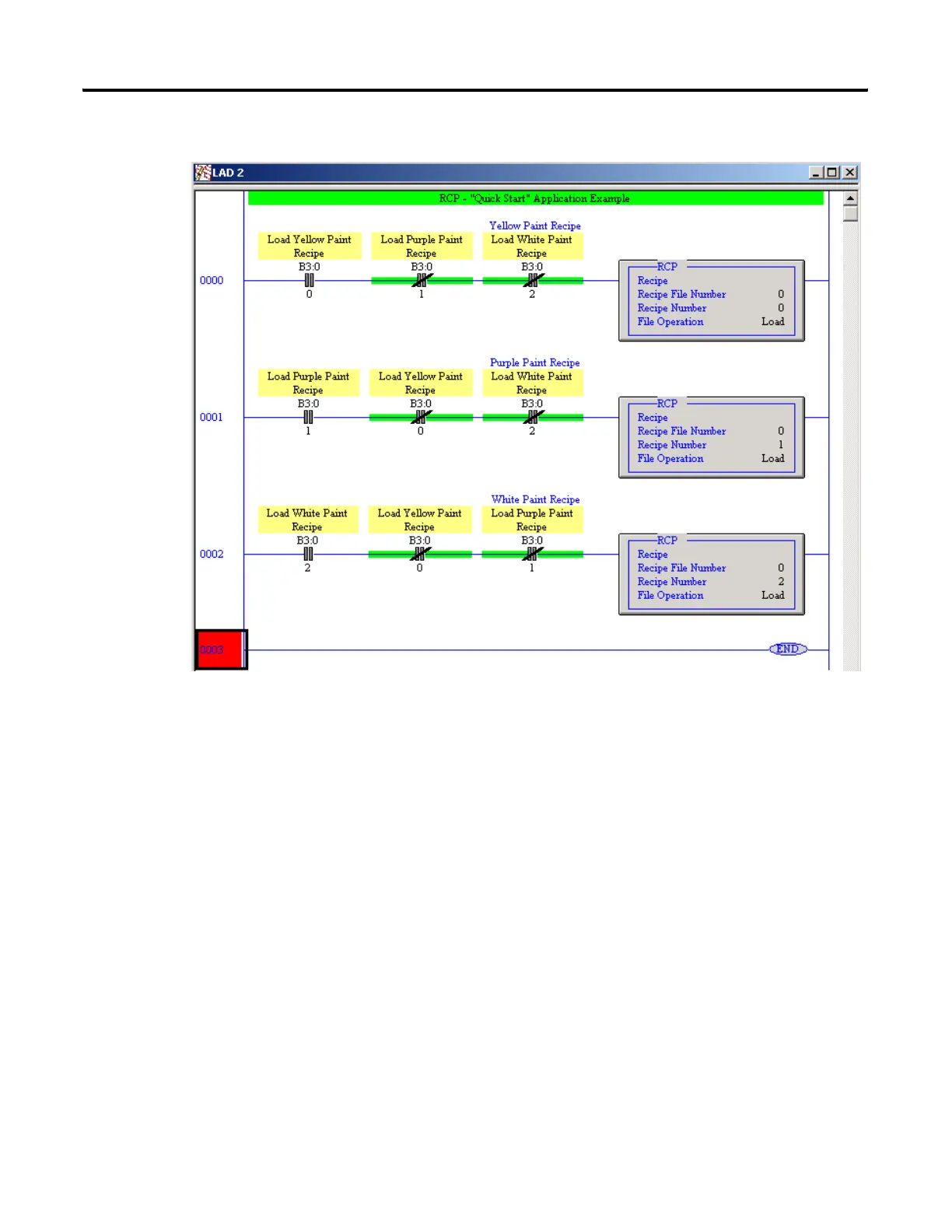

Application Explanation of Operation
When B3:0/0 is energized and B3:0/1 and B3:0/2 are de-energized, Recipe
File 0:Recipe number 0 is executed loading the following values to create
Yellow paint.
• N7:0 = 500
• N7:1 = 500
• N7:2 = 0
• T4:0.PRE = 500
When B3:0/1 is energized and B3:0/0 and B3:0/2 are de-energized, Recipe
File 0:Recipe number 1 is executed loading the following values to create
Purple paint.
• N7:0 = 500
• N7:1 = 0
• N7:2 = 500
• T4:0.PRE = 500
