48 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 3 Configure Integrated Motion Control Using Kinetix Drives

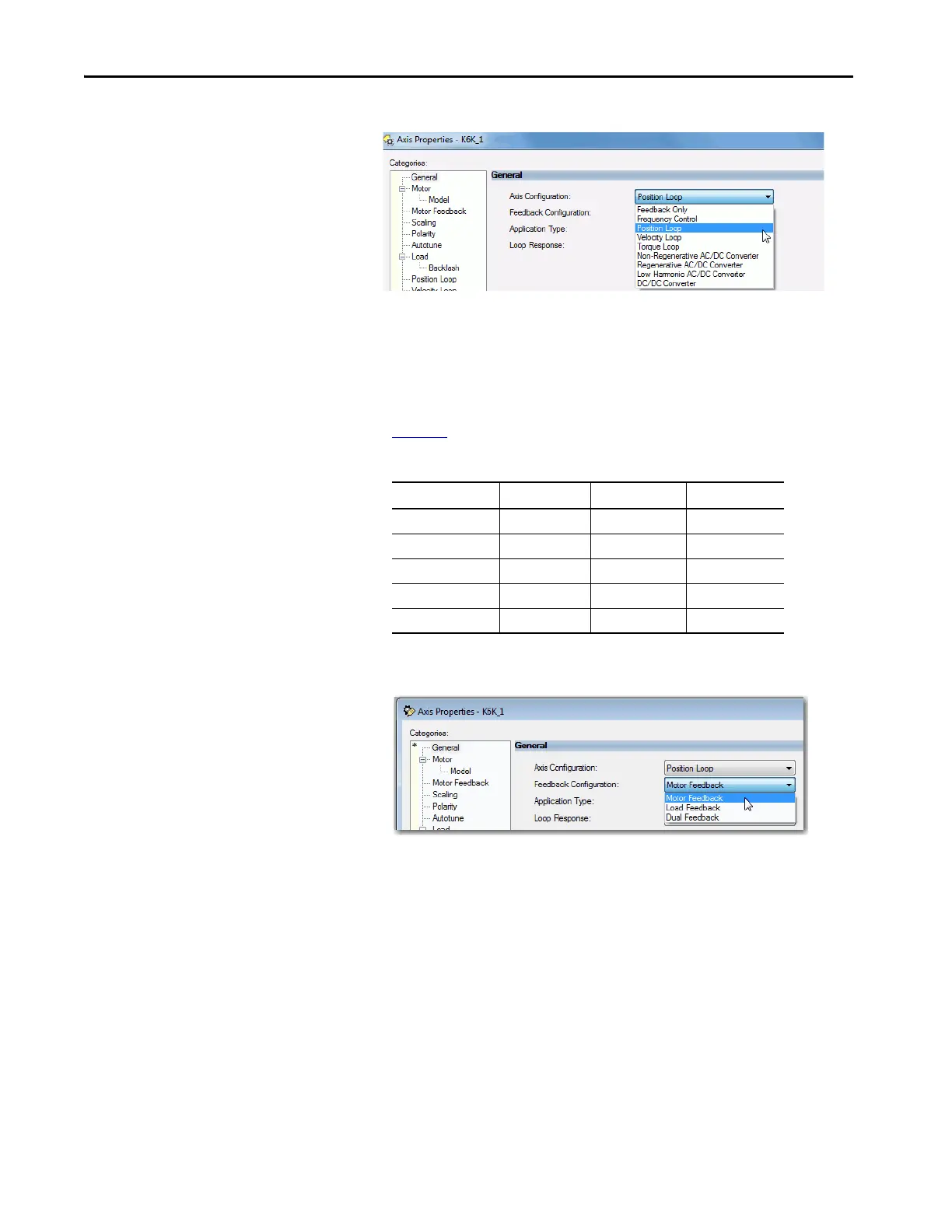

The Axis Properties General dialog box appears.
2. Choose an Axis Configuration type. For this example, choose Position
Loop.
Table 1 0
compares the axis configuration types for the drives.
3. In the Feedback Configuration pull-down menu, choose Motor
Feedback.
TIP The associated drive determines what Axis and Feedback
Configuration choices are presented.
Table 10 - Compare the Axis Configuration Types for the Drives
Axis Type Kinetix 350 Kinetix 5500 Kinetix 6500
Position Loop (P) Yes Yes Yes
Velocity Loop (V) Yes Yes Yes
Torque Loop (T) Yes Yes Yes
Feedback Only (N) No Yes Yes
Frequency Control (F) No Yes No
TIP The Kinetix 350 and Kinetix 5500 drives support only Motor
Feedback.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
