AT-S79 Management Software User’s Guide
Section II: Using the Web Browser Interface 303

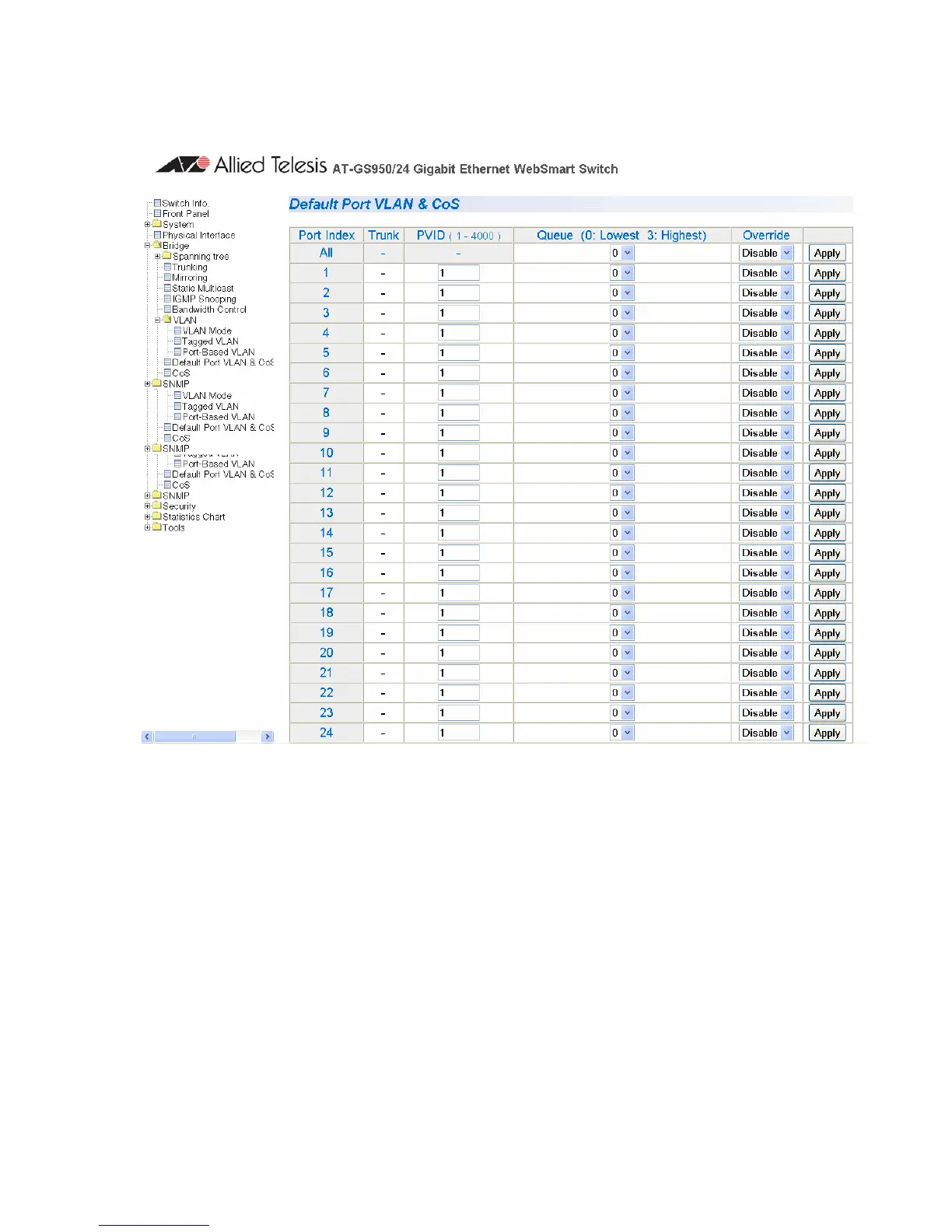

The Default Port VLAN & CoS page is shown in Figure 88.
Figure 88. Port Priority Configuration Page
The columns in the menu display the following information:
Port
Displays the port number.
Trunk
Displays the trunk number if the port is a member of a trunk.
Queue
Displays the number of the queue where untagged packets received
on the port are stored on the egress queue. In this field, 0 is the lowest
value and 3 is the highest value.
Override
Displays whether the priority level in ingress tagged frames is being
used or not. If No, the override is deactivated and the port is using the
