21
0120028-J0 Rev F
Each shelf has two negative inputs (A and B), and two
connections to a positive common input. Half the converters
are powered by Feed A and half by Feed B as listed in the
following table.
Alpha recommends that each converter shelf have two
dedicated input feeder breakers, if both A and B feeds are
used.
Refer to the specifications in Section 3 on page 10f or
recommended breaker and cable sizes. Local electrical
codes take precedence.
Table C — DC input wiring connections
Shelf
width
Feed A to
Converter Slots
Feed B to Converter
Slots
19" 1-5* 6-9*
*Slots are numbered from left to right when viewed from the
front.

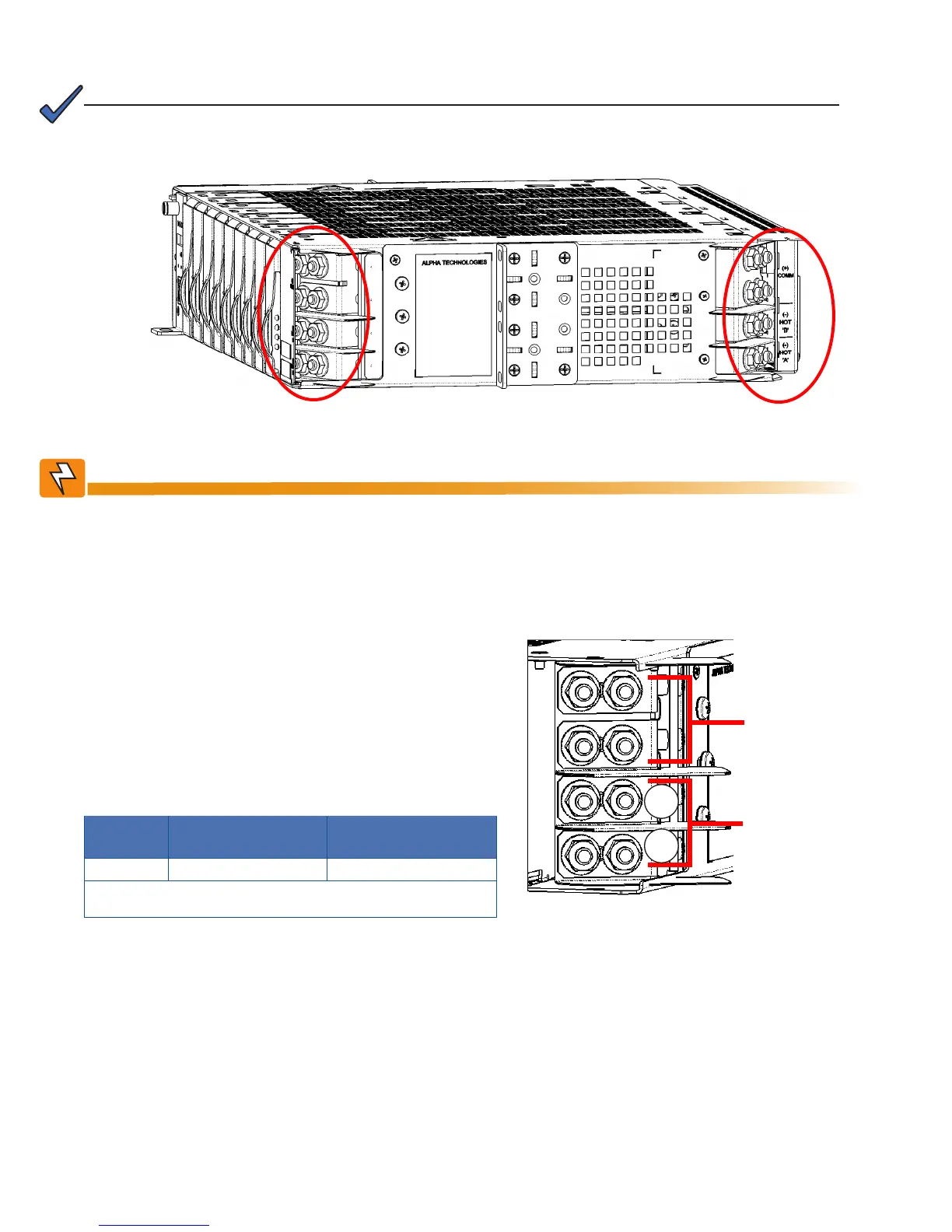

Figure 9 — DC input wiring connections
6�5�2 Connecting the DC Input
NOTE:
Connect the eLimiter+ to a Safety Extra Low Voltage (SELV) <60VDC input power circuit.
Connections are provided for either front or rear access (Figure 10).
2x isolated DC In
inputs
2x common
connections for
positive ground
Figure 10 — DC input connections (19")
Side-front Side-rear
WARNING!
Ensure input feeder breakers are off before connecting inputs. Hazardous voltages and/
or energy levels are present at the input of power systems.
B
A
1/4" studs on 5/8” centers
