6�5�5 Connecting Power to the Fan Tray
Power to the fans is provided by the converter shelf immediately above it. Plug the cable from the fan tray into the
receptacle labeled FAN PWR in the converter shelf above it.
Fan tray
power cable
Figure 18 — Terminal block and connector pinouts
6�5�6 Making Load Connections
Connections to the loads are made with terminal block connectors. Refer to the following figures for the connector
pinout locations and the recommended load wiring connections.

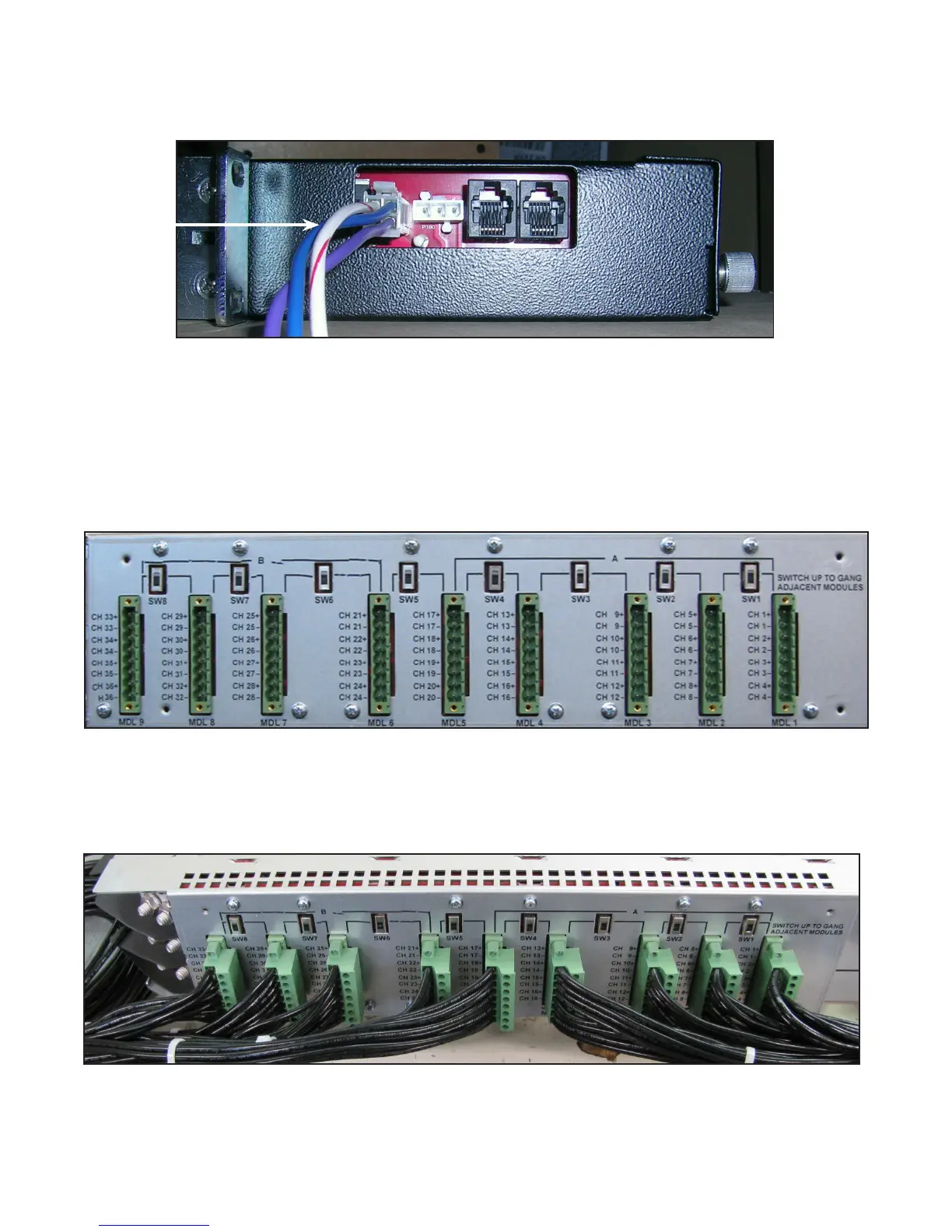

Figure 17 — Fan tray connections
Figure 19 — Recommended load wiring connections
