6�7 Installing the Controller and Converters

The CXCI+ controller and converters ship as separate items and are installed after mounting the eLimiter+ shelf.

6�7�1 Installing the CXCI+ Controller

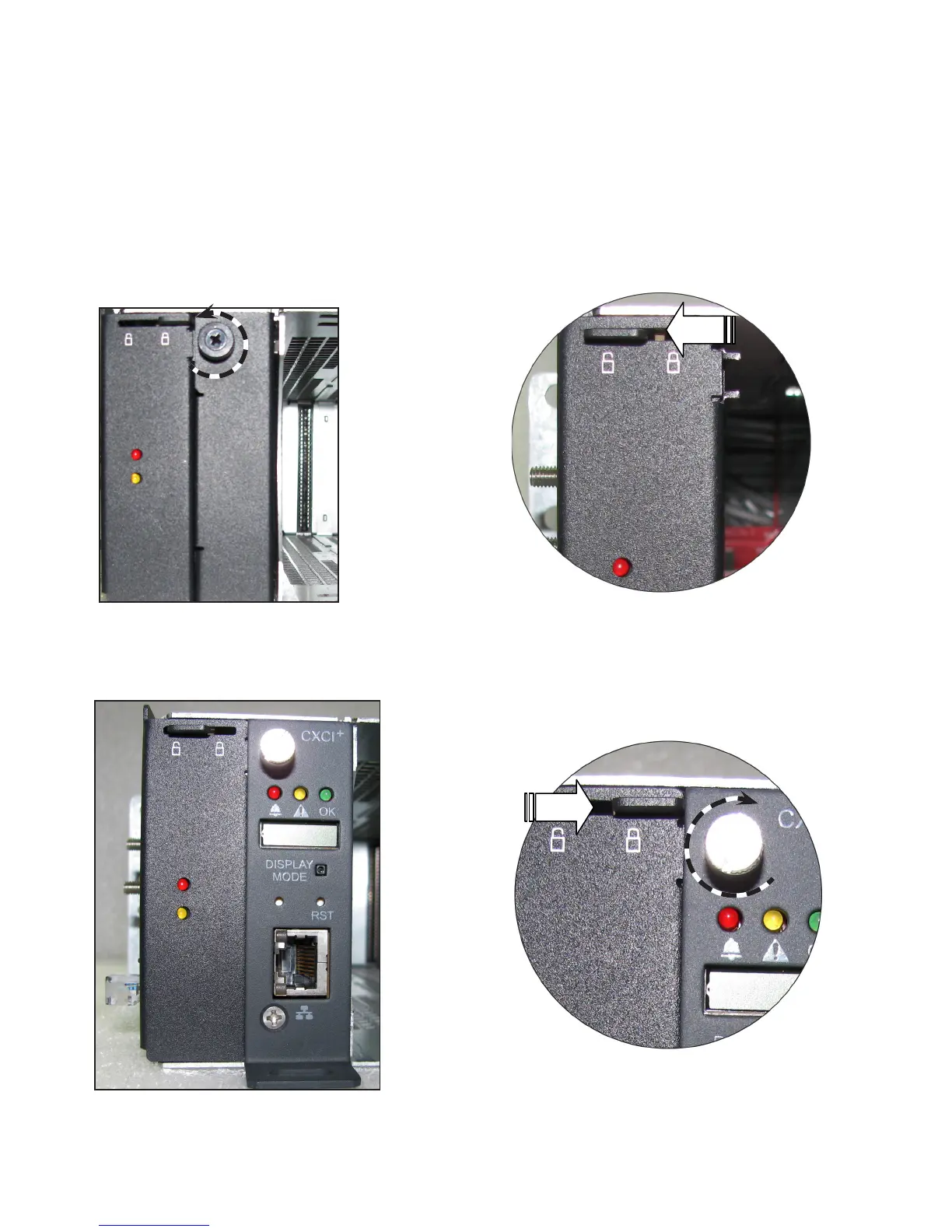

STEP 3:

Slide the controller straight into the

connector at the rear of the slot.

STEP 4:

Slide the locking tab to the right.

Tighten the thumbscrew with a screwdriver.

STEP 1:

Loosen the thumbscrew and

remove the blank panel.

STEP 2:

Slide the locking tab to the left.
