Alpha Technologies 100VA eLimiter+ - 6.7 Installing the Controller and Converters; 6.7.3 Installing the Back Cover and Securing Wires

31
0120028-J0 Rev F
6�7�3 Installing the Back Cover and Securing the Wires
Once the recommended load wiring connections are complete secure the wires with cable ties, as in Figure 27 and
then install the back cover as seen in Figure 28.

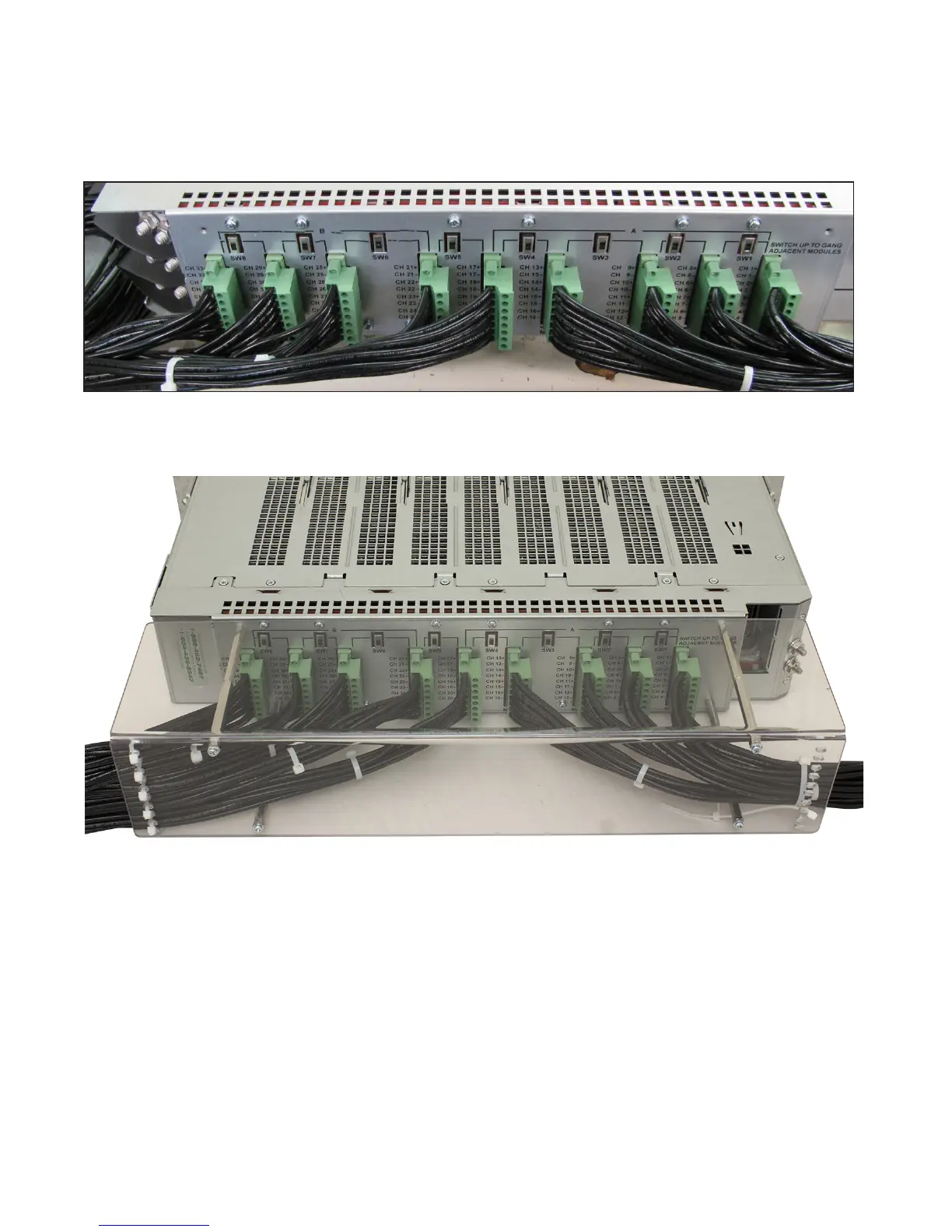

Figure 27 — Securing the wires
Figure 28 — Installing the back cover
