0120028-J0 Rev F
32
Parameter Setup
Reset CXCI+ controller (front reset button) to set network IP parameters to factory default:
• IP address: 10.10.10.201
• Subnet mask: 255.255.255.0
Connect a laptop to the controller with a network crossover cable.
Laptop IP Network settings (Start > Control Panel)
• IP address: 10.10.10.202
• Subnet mask: 255.255.255.0
Turn off Pop-up Blocker.
Enter: 10.10.10.201 in the web address bar.
Login to the controller:
• User name: Enter your company name and your initials
• Password: 1234
Language selection: English
Go to Controller > Date & Time to set correct date and time.
Select Line Powering System > View Live Status to display a graphical view of all
acquired LPS devices. Clicking an LPS module displays a pop-up window with information
specific to that LPS module and its channels.
NOTE:
If red text displays saying, “Invalid Shelf IDs have been detected!” or “Duplicate Shelf
IDs have been detected!” the rotary dials to set shelf IDs have not be set up correctly.
Log out.

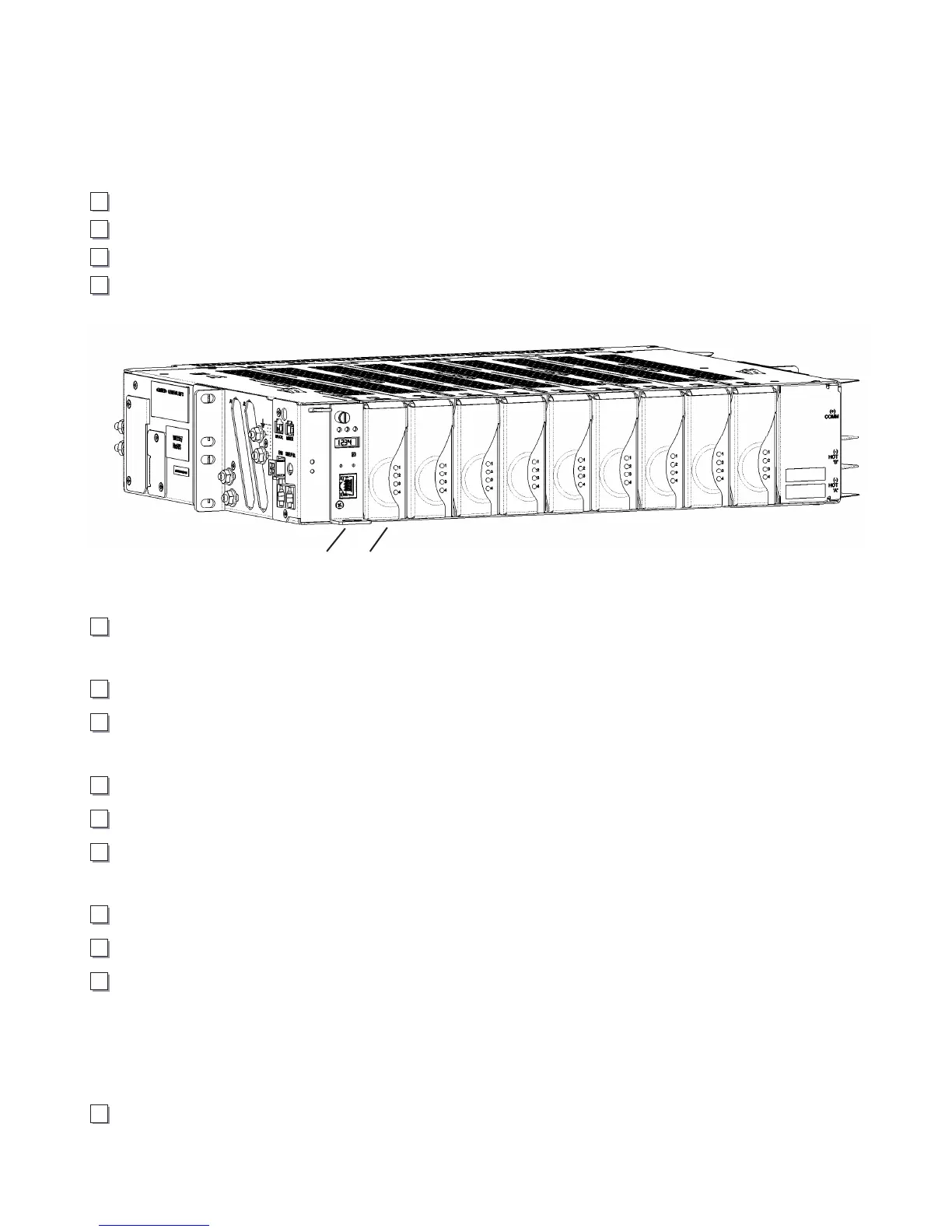

CXCI+
Converter
6�8 System Startup
To ensure proper operation, perform the following startup and test procedure after completing the system installation
wiring.
6�8�1 Procedure
To meet GR-1089-CORE requirement, the Ethernet cable shall be a maximum of 6 meters in length.
Start with DC input breakers off.
Install the CXCI+ into the left most position.
Install the converters in the slots.
Turn on the DC breakers.
To Next Page
