7�6 Replacing the Controller

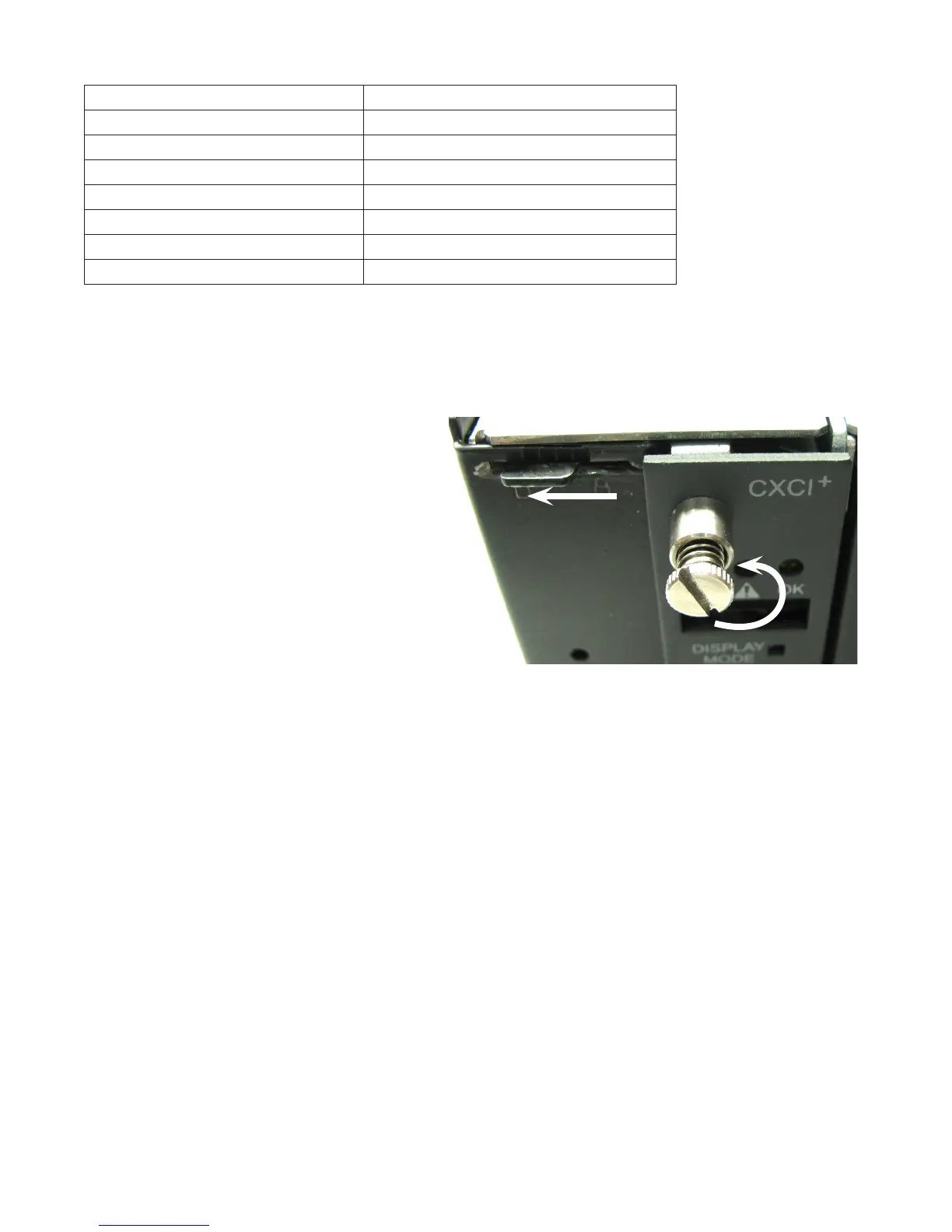

Undo the locking screw on the front of the control-
ler until it clears the locking mechanism.
Slide the locking mechanism towards the unlock
symbol.
Remove the controller.
7�7 Replacing the Converters
The eLimiter+ converter modules are plug and play. When a converter module is added to the system, the con-
troller will detect and update the inventory automatically.
Replacing an installed converter requires a manual Inventory Update at the controller web interface to clear the
removed converter from its current list of rectifiers.
1. Connect a laptop to the Controller with a network crossover cable.
2. Laptop IP Network settings (Start > Control Panel).
• IP address: 10.10.10.202
• Subnet mask: 255.255.255.0
3. Turn off Pop-up Blocker.
4. 10.10.10.201 in the web address bar.
5. Login to the Controller:
• User name: Enter your company name and your initials
• Password: 1234
6. Go to Main Menu > Rectifiers > Inventory Update.
7�5 Service Kits
Blanking plate kit (quantity 2) 0380070-001
Alarm relay replacement kit 0380148-001 (includes PCB and bracket)
Fan input power cable 8700590-001
Can Bus terminator 5450228-001
Fan tray replacement assembly (19") 0300055-004
Fan filter kit 0380256-001
DC input cover kit 0380249-001
Alarm relay cables (6ft) 8700649-001
