0120028-J0 Rev F
30
6�7� 2 Installing the Converters
1. Populate the shelf sequentially starting from the slot closest to the controller or controller blanking plate.
2. Slide the module into the slot with the handle in a closed position. Some additional pressure may be required to
engage the card edge connector at the rear of the shelf.
3. If the module handle is caught on the dividers between slots, apply some slight pressure away from the divider
as indicated by arrow 1, as indicated in the top view, while continuing to move the module into the slot as
indicated by arrow 2, also indicated in the top view figure.
Handle
1
Dividers
between
slots
Side view
Top view
2

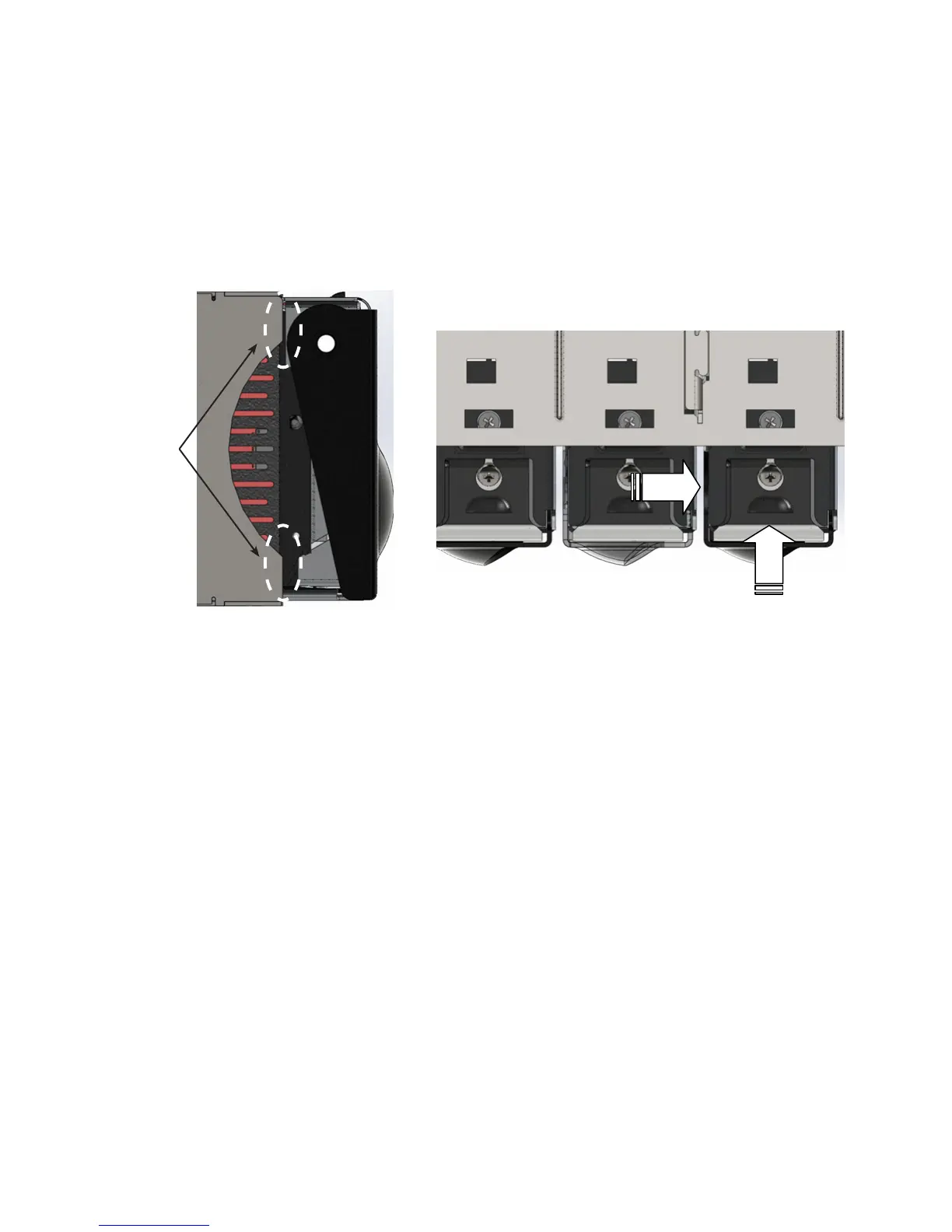

Figure 26 — Installing converters
