0120028-J0 Rev F
28

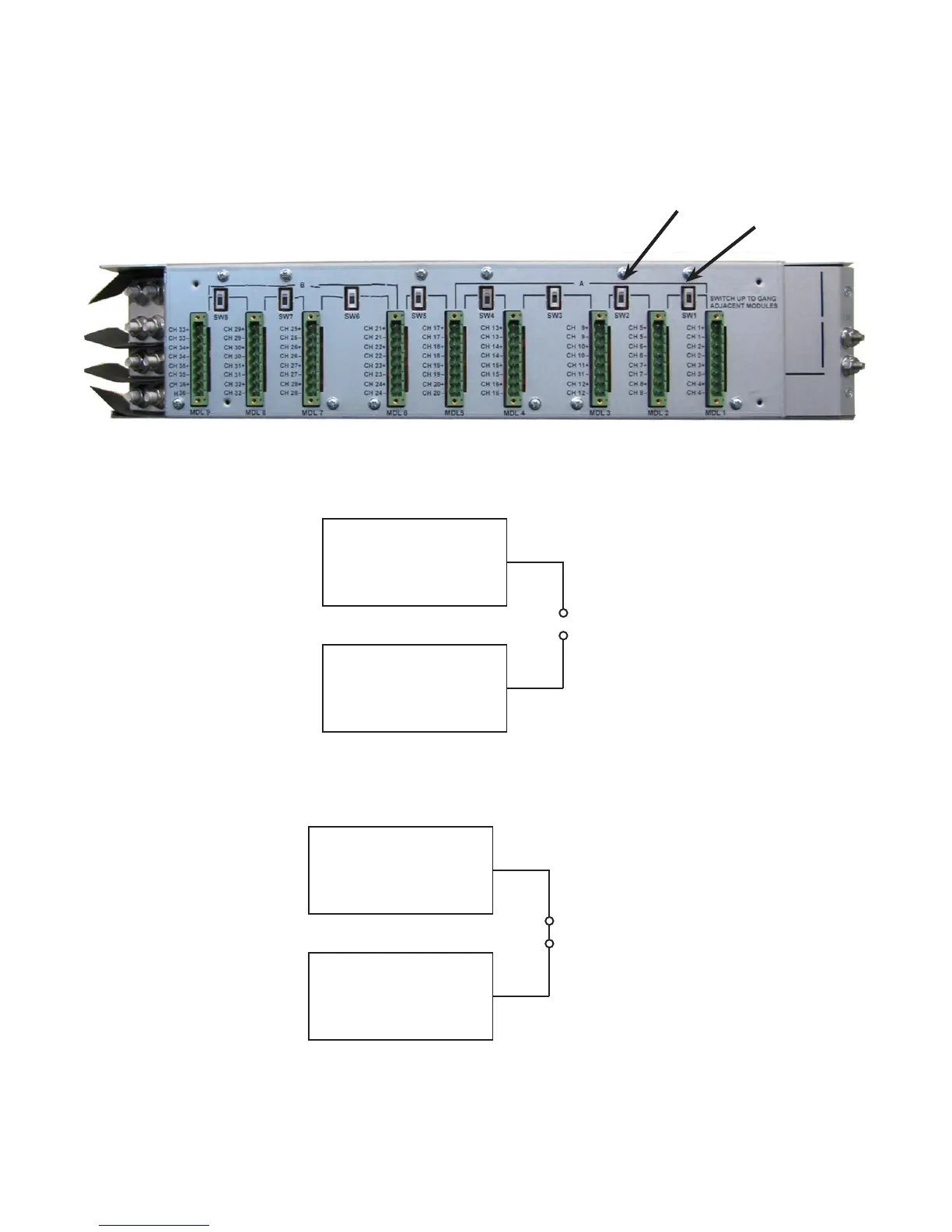

6�6�3 Group Reset Configuration
The group reset configuration is used to synchronize the start up or reset of multiple modules (more than 4 outputs).
Group reset is used in case of fault conditions so that all outputs recover at the same time. Up to 9 modules can be
configured in a daisy chain wiring scheme.
To use a group reset, enable the switch links from the modules.
eLimiter+
Module 2
eLimiter+
Module 1
SW1 OFF
Figure 23 Group reset switches
Module 2
Module 1
SW1 ON
Figure 24 Default setting, independent outputs
Figure 25 Group reset enabled
Switch link to
connect modules
1 and 2
Switch link to con-
nect module 3
