39
0120028-J0 Rev F

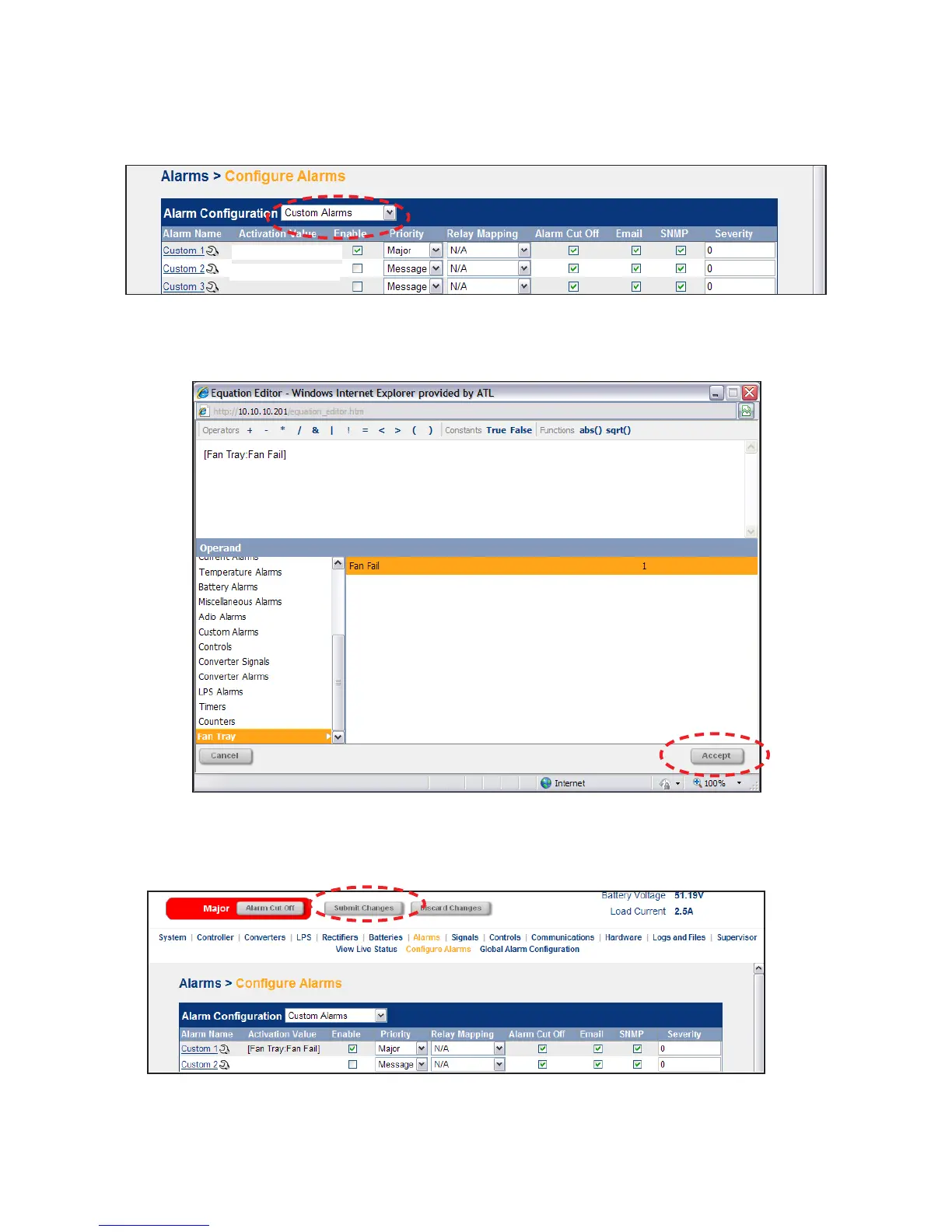

1. Select the menu item Alarms > Configure Alarms (Figure 36).
2. From the Alarm Configuration drop-down menu, select Custom Alarms�
3. Select the Enable check box of an unused custom alarm (Custom 1 is shown in Figure 38).
4. From the Priority drop down menu, set the alarm Priority to Major.
5. Click the Custom 1 hyperlink to access the Equation Editor.
6. In the Equation Editor (Figure 39), select Fan Tray and Fan Fail, and then click Accept.
Figure 38 — Configuring a custom alarm
Figure 39 — Equation Editor for configuring a Fan Fail alarm
7. The Alarms > Configure Alarms screen reappears with the activation value now visible.
8. Click the Submit Changes button at the top of the screen.
Figure 40 — Fan Fail alarm
