Hardware Setup
NHA80945 04/2017 31

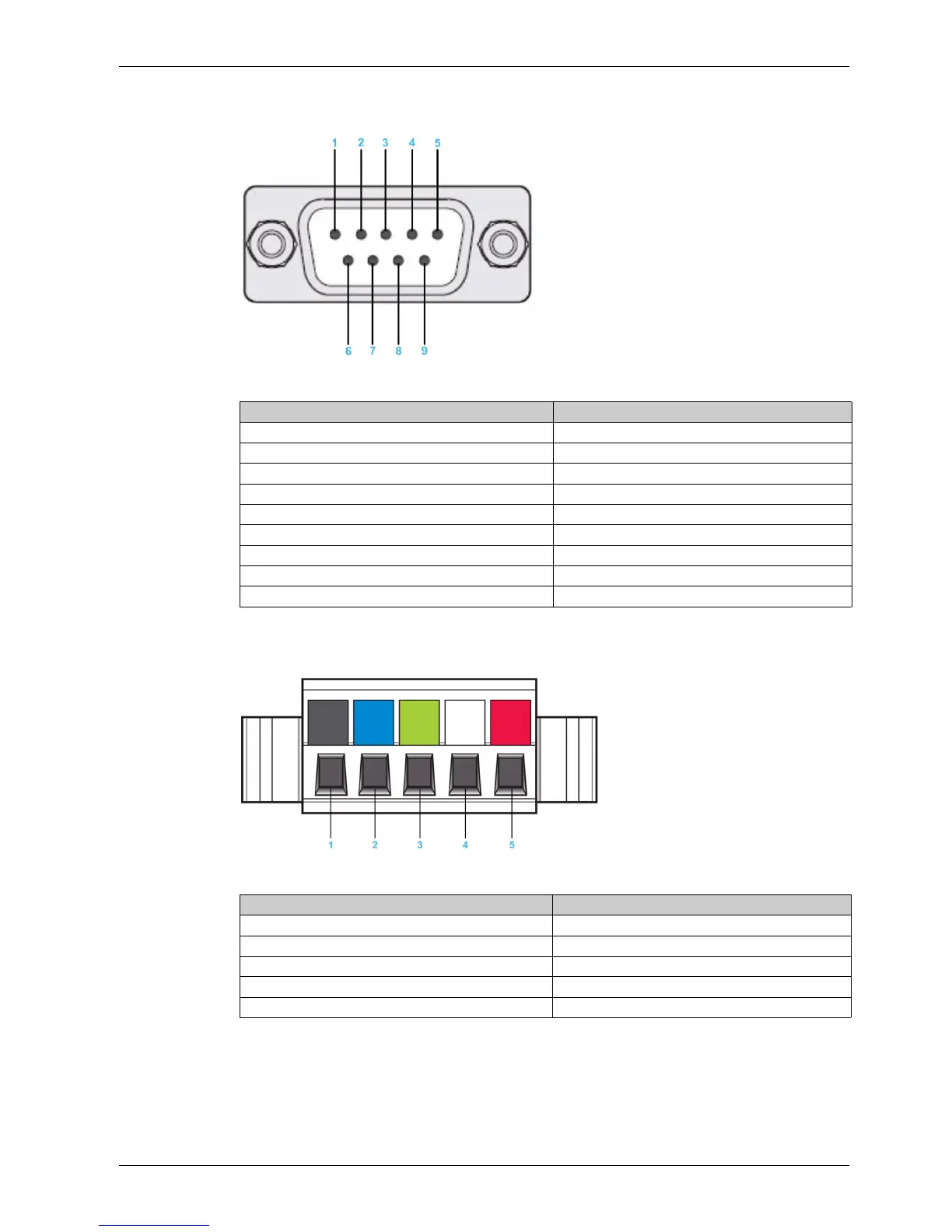

Pin Layout of VW3A3618
The VW3A3618 option module is equipped with 1 SubD9 male connector for the CANopen connection.
The table provides the pin out details of the SUB-D 9 connector:
Pin Layout of VW3A3628
The VW3A3628 option module is equipped with 1 open style male connector for the CANopen connection.
The table provides the pin out of the open style connector:
Pin SubD signal
1Reserved
2CAN_L
3CAN_GND
4Reserved
5CAN_SHLD
6CAN_GND
7CAN_H
8Reserved
9Reserved
Pin Signal
1CAN_GND
2CAN_L
3CAN_SHLD
4CAN_H
5 Reserved
