Altivar Process ATV900 - Electrical Installation and Wiring

Hardware Setup
30
NHA80945 04/2017
Electrical Installation
Pin Layout of VW3A3608

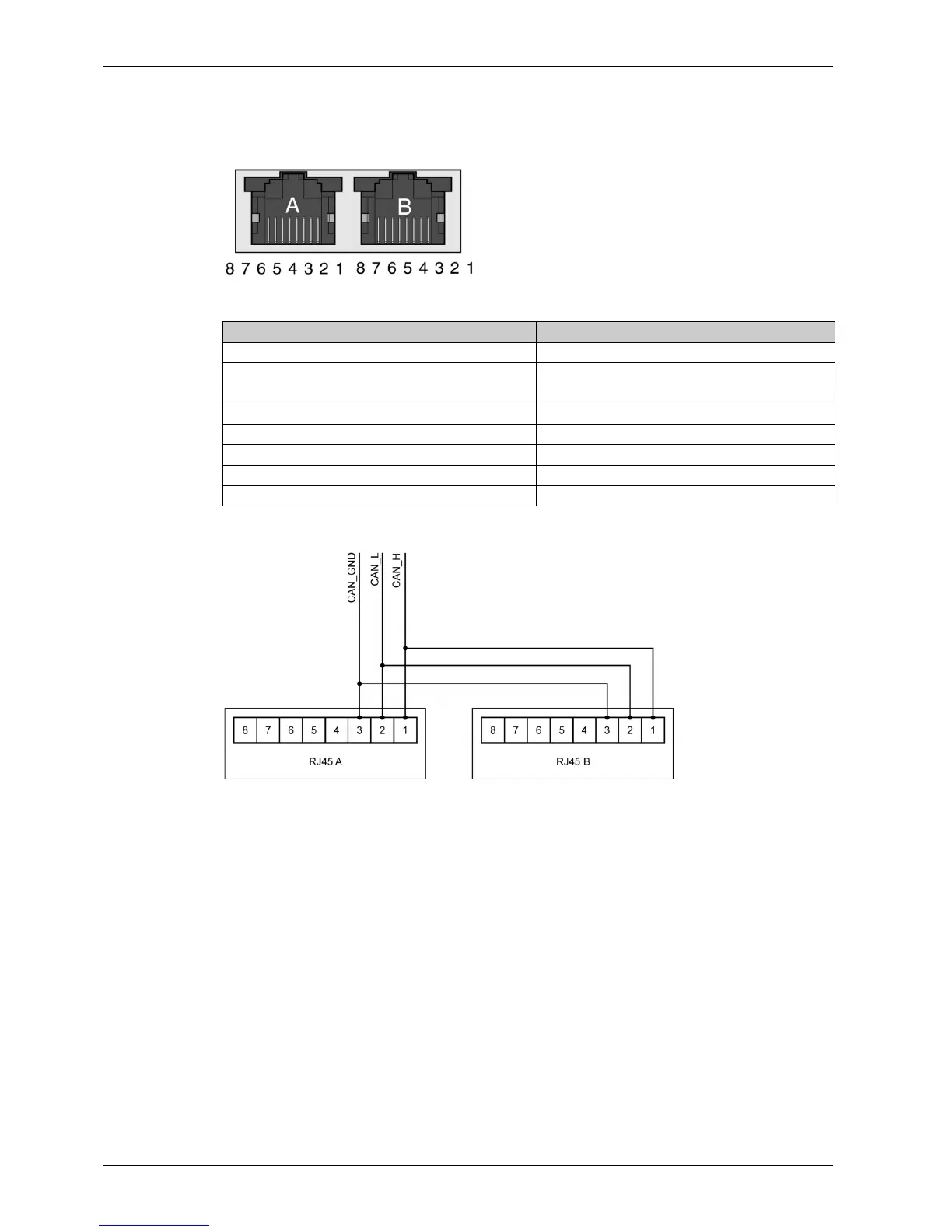

The VW3A3608 option module is equipped with 2 RJ45 female sockets for the CANopen connection.
The table provides the pin out details of each RJ45 connector:
NOTE: Both RJ45 are interconnected internally as on the diagram below:
Pin RJ45 signal
1CAN_H
2CAN_L
3CAN_GND
4 Not connected
5 Not connected
6 Not connected
7 Not connected
8 Not connected
