Software Setup
64
NHA80945 04/2017

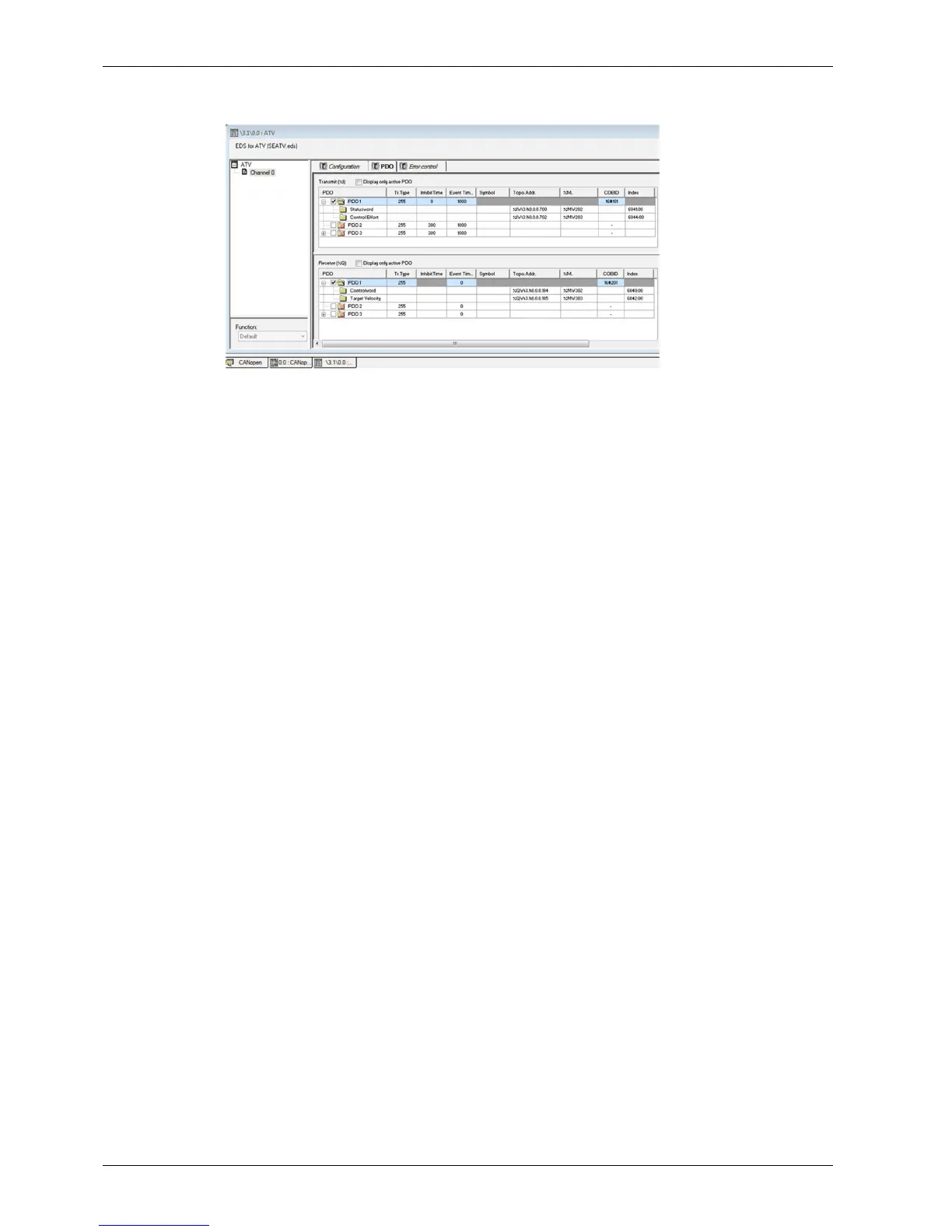

In the example below, TPDO1 and RPDO1 are selected which provides the basic control command of the
drive with the CiA402 velocity mode profile.
PDOs are linked to the %Mw variables, the mapping is automatically generated by Unity according to the
index defined in the master configuration panel and to the PDOs and to the slave Node ID.
