Amada IS-200A - Rear Panel

IS-200A
3. Name and Functions of Each Section
3-3

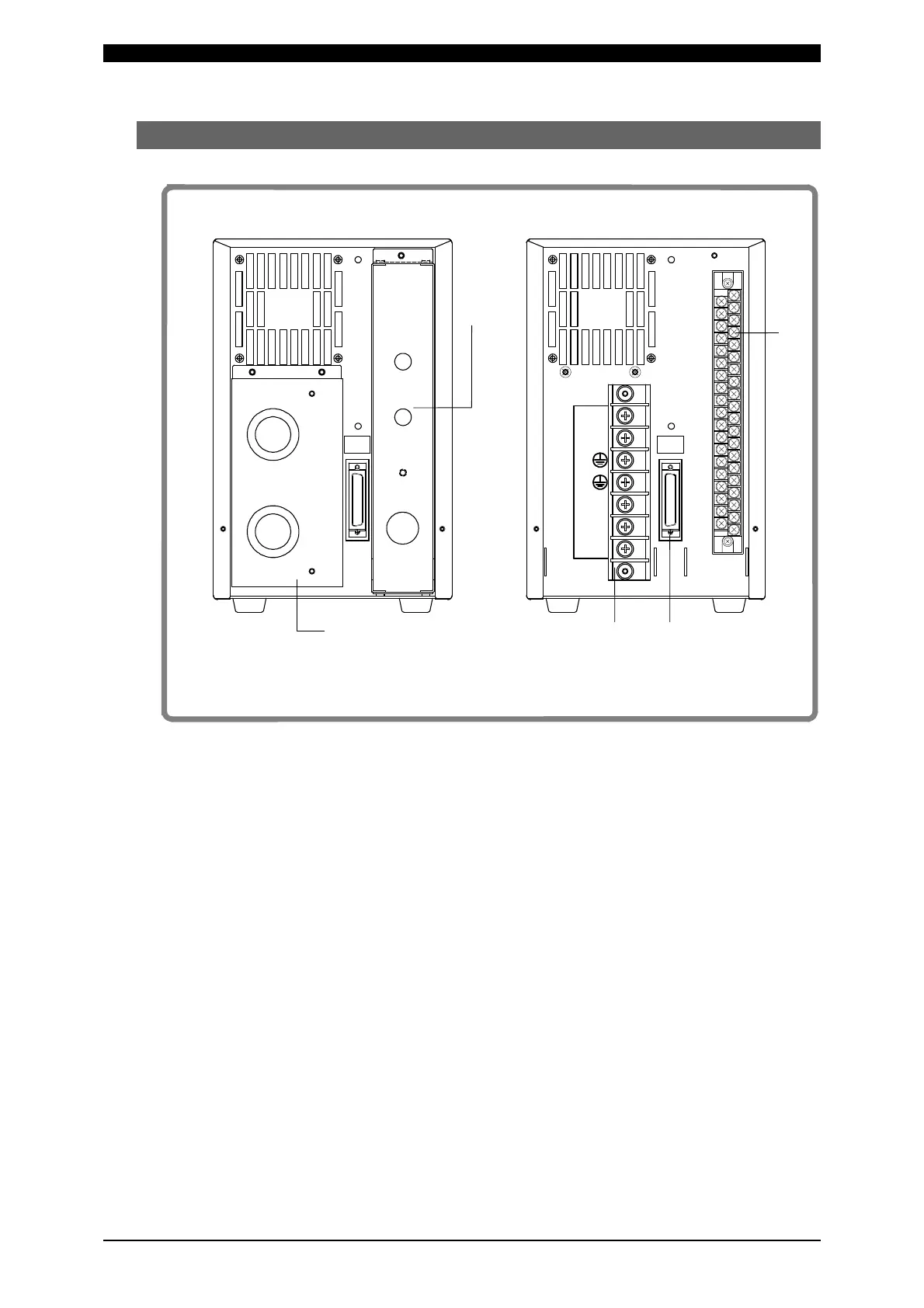

(2) Rear Panel
1) Connecting terminal block for external input/output signal
This terminal block is used to input the schedule signals and output trouble
signals.
2) Terminal block for welding power input/output
This terminal block is used to connect to the input of the welding transformer and
the welding power supply (three-phase). The cable-mounting screw is for M5.
3) Welding Transformer [I/O] connector
For connecting the [SENS] cable for the welding transformer manufactured by
Amada Miyachi Co., Ltd.
50/60Hz
200V-240V ～
IN
POWER
OUTPUT
L1
L2
L3
U
V
I/OI/O
(With terminal cover mounted) (With terminal covers removed)
I/O
terminal
cover
I/O power supply cover
3)
2)
1)
